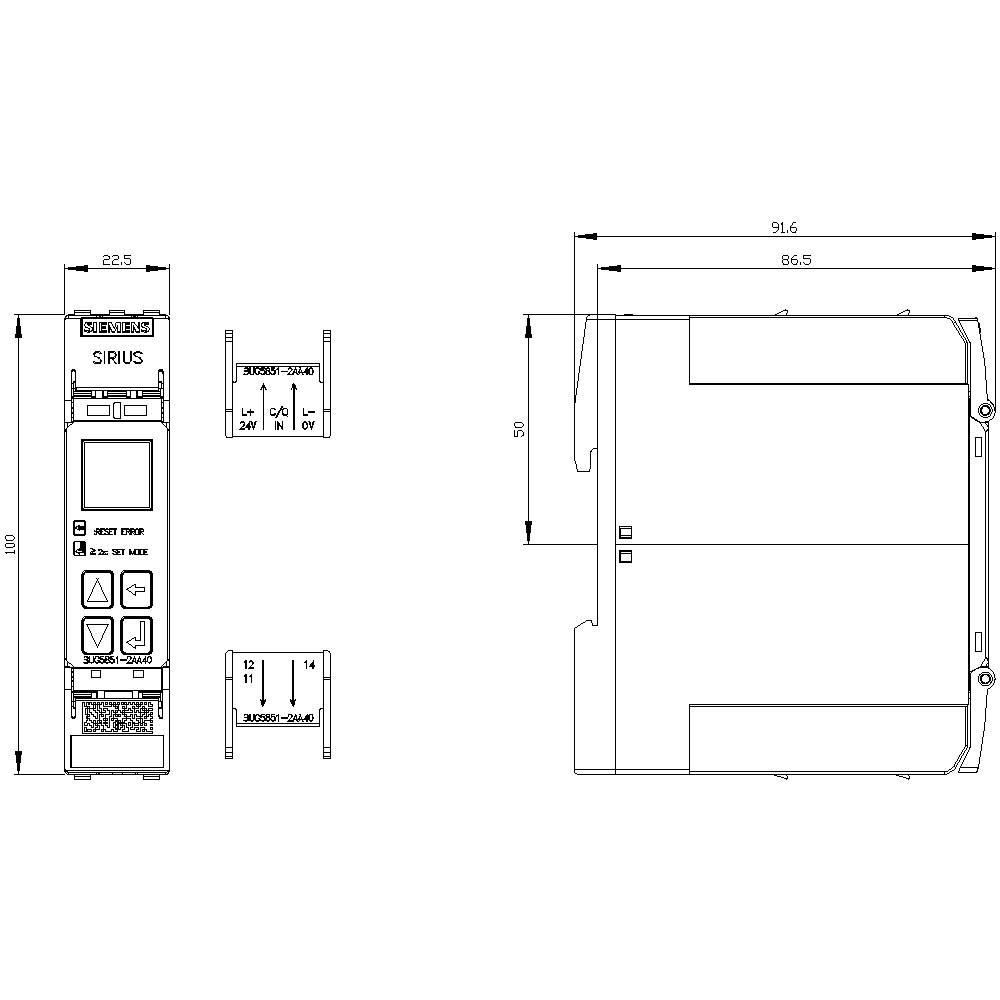

— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodscrew and snap-on mounting
product functionRPM monitoring relay
mounting positionany
product brand nameSIRIUS
degree of pollution3

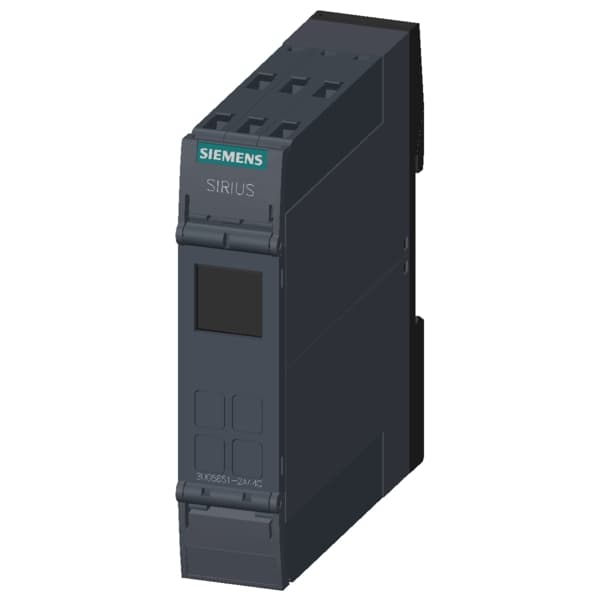

product designationSpeed monitoring relay with digital setting
IO-Link transfer rateCOM2 (38,4 kBaud)
design of the displayLCD
design of the productmonitoring of speed, external power supply with auxiliary voltage for IO-Link
— instantaneous contact0
product type designation3UG5
measurable line frequency50 ... 60 Hz
accuracy of digital display+/- 1 Digit
Substance Prohibitance (Date)06/01/2023
type of electrical connectionspring-loaded terminal (push-in)
design of input feedback inputNo
adjustable operating delay time0 ... 999.9 s
operational current at 17 V minimum5 mA
protocol is supported IO-Link protocolYes
reference code according to IEC 81346-2K
— with degree of pollution 2 rated value690 V
— with degree of pollution 3 rated value690 V
number of CO contacts delayed switching1
control supply voltage at DC rated value24 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
suitability for use safety-related circuitsNo
type of voltage of the control supply voltageDC
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
ampacity of the semiconductor output in SIO mode200 mA
mechanical service life (operating cycles) typical10 000 000
type of voltage supply via input/output link masterYes
installation altitude at height above sea level maximum2 000 m
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
point-to-point cycle time between master and IO-Link device minimum5 ms
product component removable terminal for auxiliary and control circuitYes
