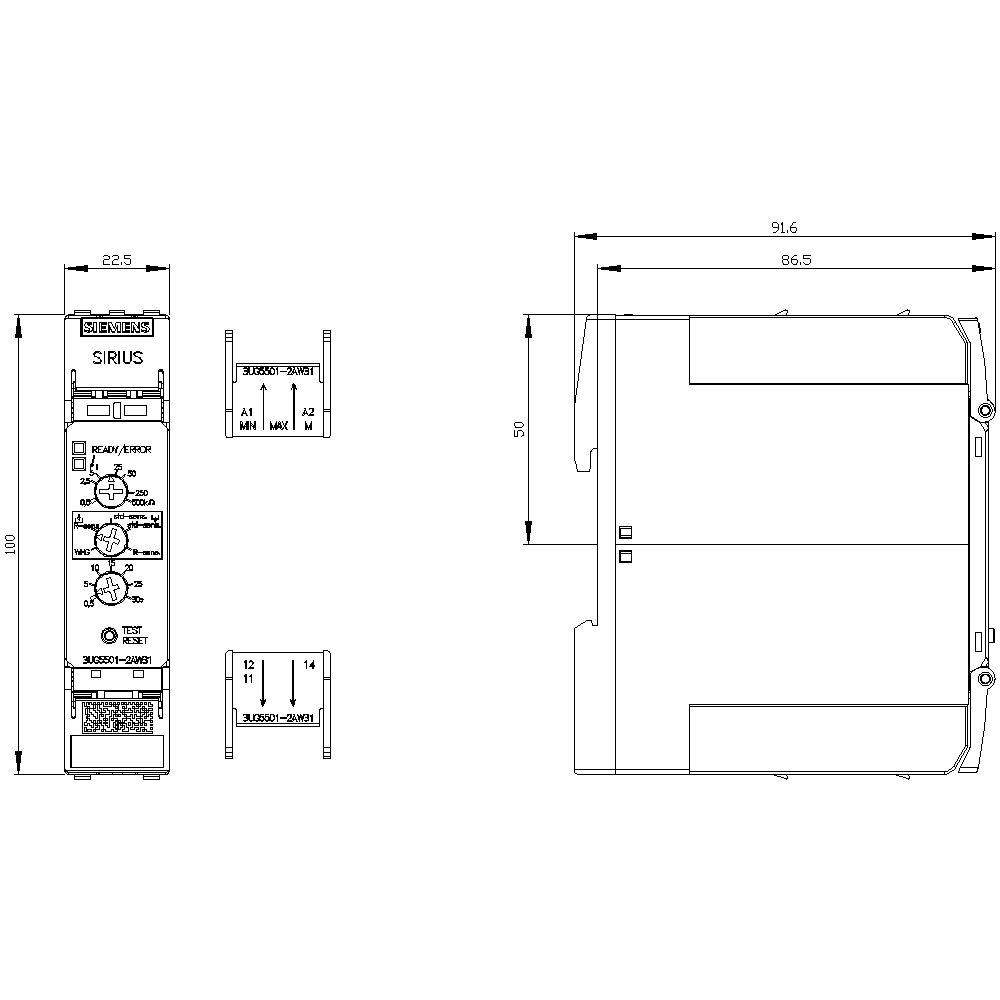

— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodscrew and snap-on mounting
number of inputs2
product functionanalog setting level monitoring relay
mounting positionany
product brand nameSIRIUS
degree of pollution3

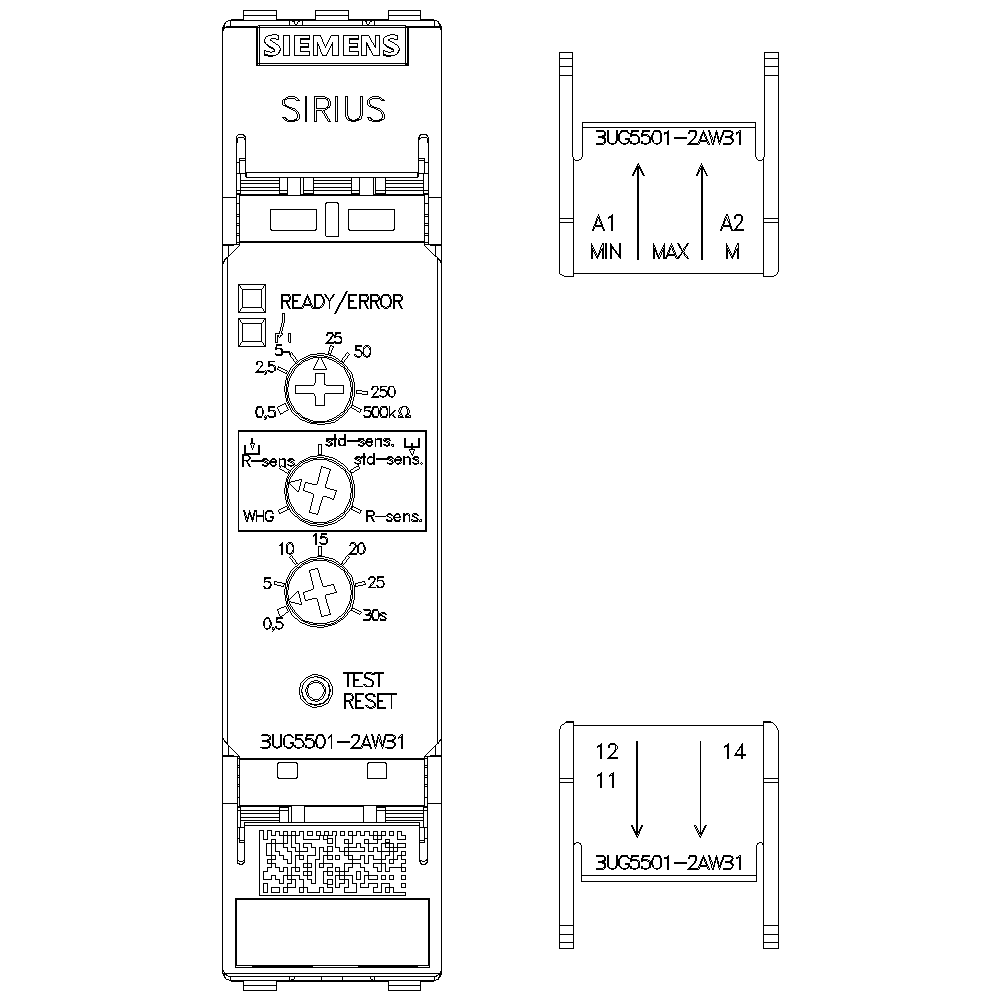

display version LEDYes

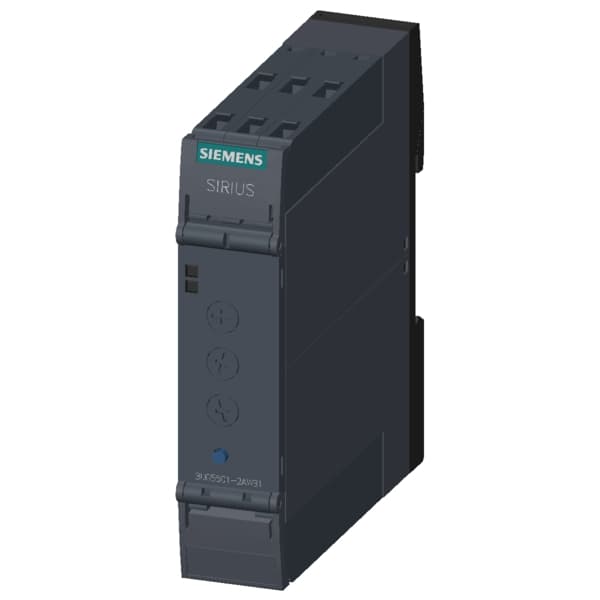

product designationLevel monitoring relay with analog setting
design of the productlevel monitoring, externally supplied with auxiliary voltage for safety applications
response time maximum500 ms
product type designation3UG5
Safe failure fraction (SFF)60 %
Substance Prohibitance (Date)06/01/2023
physical measuring principleconductive
type of electrical connectionspring-loaded terminal (push-in)
function test interval maximum1 a
adjustable operating delay time0.5 ... 30 s
category according to ISO 13849-12
operational current at 17 V minimum5 mA
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2K
control supply voltage at DC rated value24 ... 240 V
safety device type according to IEC 61508-2Type B
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
performance level (PL) according to ISO 13849-1PL c
product function suitable for safety functionYes
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
hardware fault tolerance according to IEC 615080
T1 value of service life according to IEC 6150820 a
mechanical service life (operating cycles) typical10 000 000
PFHD with high demand rate according to IEC 620619.3E-7 1/h
Safety Integrity Level (SIL) according to IEC 615081
Safety Integrity Level (SIL) according to IEC 62061SIL 1
PFDavg with low demand rate according to IEC 615080.0015
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
continuous current of the DIAZED fuse link of the output relay6 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
