analog monitoring relay level monitoring resistance monitoring from 0.5 to 500 kohm overshoot and undershoot supply voltage 24 ... 240 V AC/DC
Nomor Part: 3UG5501-1AW30
Kategori
(Fill) level monitoring relay

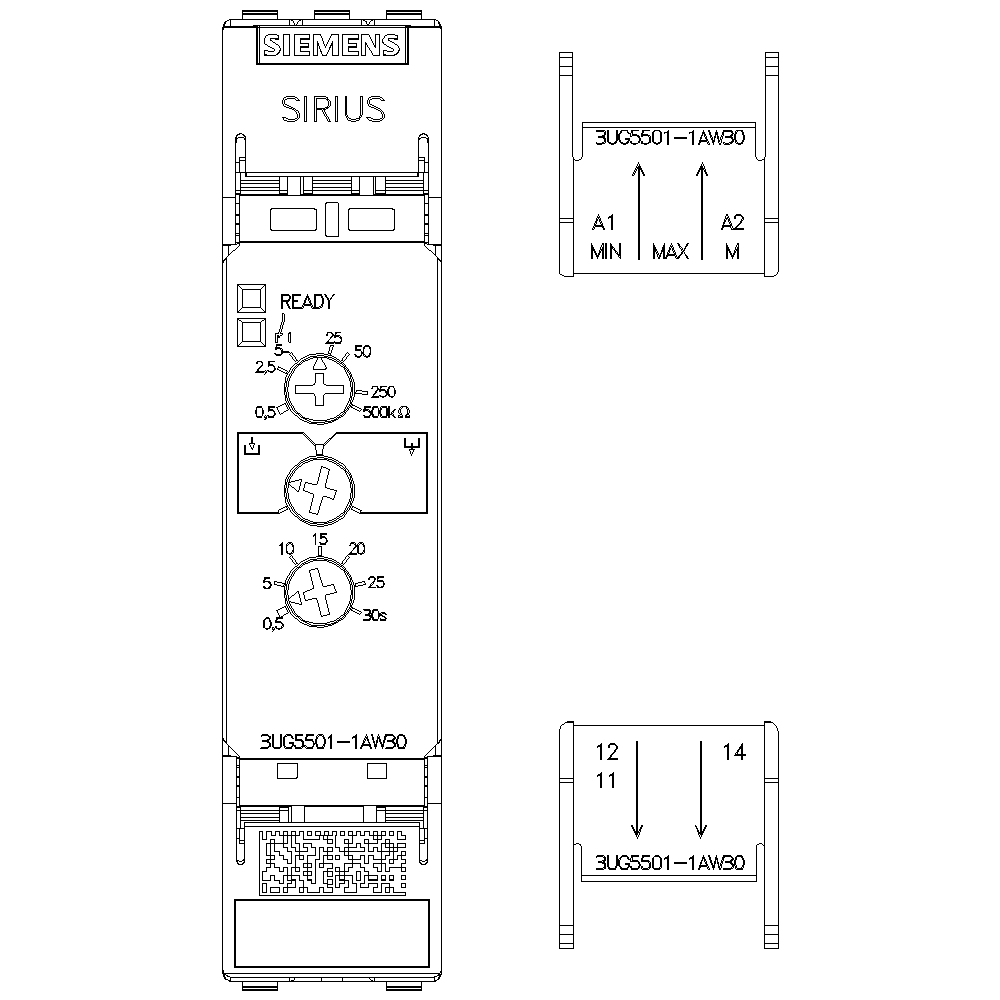

Siemens 3UG5501-1AW30. analog monitoring relay level monitoring resistance monitoring from 0.5 to 500 kohm overshoot and undershoot supply voltage 24 ... 240 V AC/DC, 50 .. 60 Hz 2-step or 1-step control tripping delay 0.5-30 s 1 changeover contact screw terminal.
Spesifikasi
Mechanical
Net Weight0.159 kg

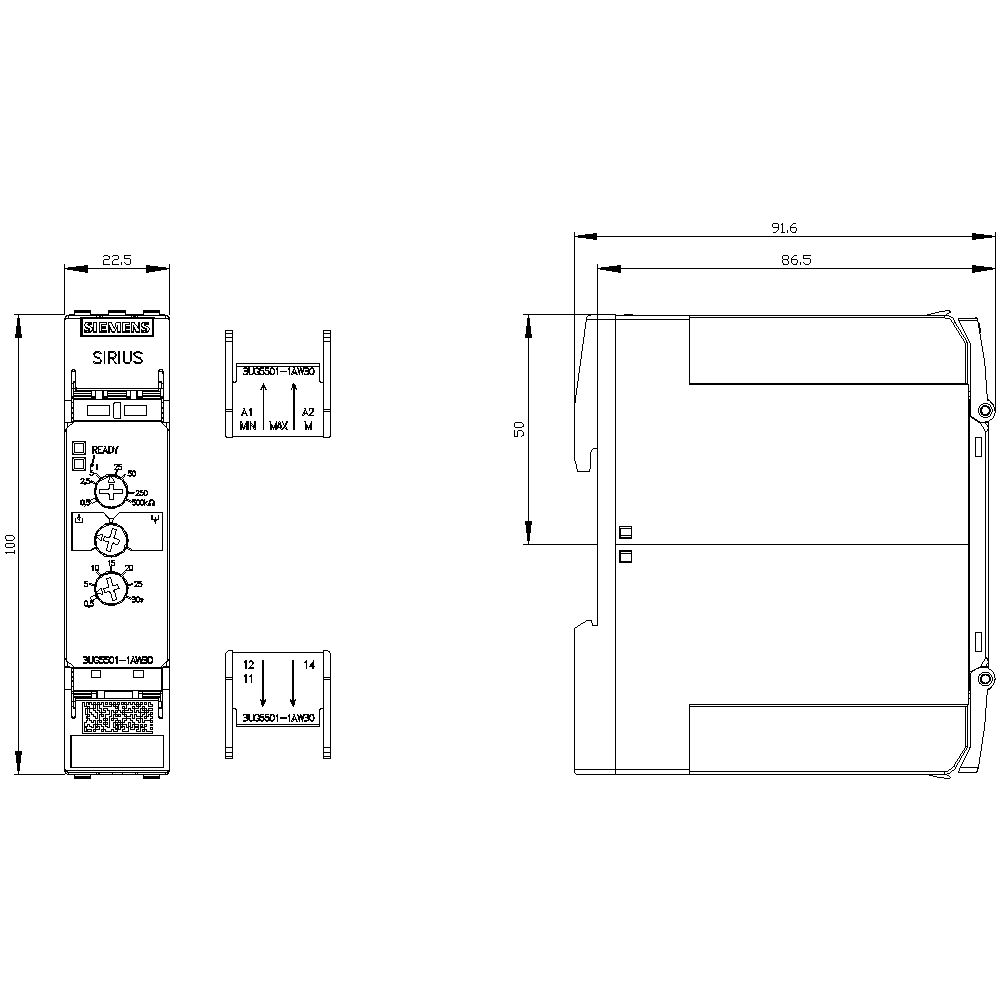

Dimensions
Width22.5 mm
Height100 mm
Depth90 mm
Other
— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodscrew and snap-on mounting
number of inputs2
product functionanalog setting level monitoring relay
mounting positionany
product brand nameSIRIUS
degree of pollution3
display version LEDYes
product designationLevel monitoring relay with analog setting
design of the productlevel monitoring, externally supplied with auxiliary voltage
response time maximum500 ms
product type designation3UG5
Substance Prohibitance (Date)06/01/2023
physical measuring principleconductive
type of electrical connectionscrew terminal
adjustable operating delay time0.5 ... 30 s
operational current at 17 V minimum5 mA
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2K
control supply voltage at DC rated value24 ... 240 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
tightening torque with screw-type terminals0.6 ... 0.8 N·m
vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles
mechanical service life (operating cycles) typical10 000 000
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
continuous current of the DIAZED fuse link of the output relay6 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
product component removable terminal for auxiliary and control circuitYes
