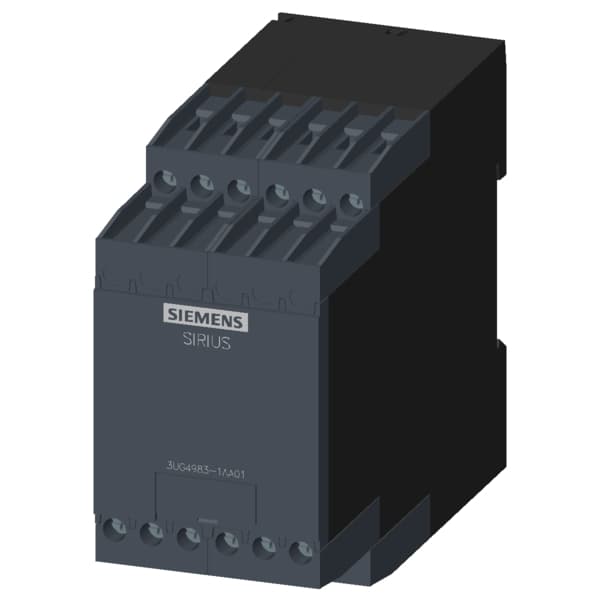

voltage reducer module for insulation monitoring relay 3UG4583 for expanding the supply voltage range to 690 V AC and 1000 V DC screw terminal

Name: voltage reducer module for insulation monitoring relay 3UG4583 for expanding the supply voltage range to 690 V AC and 1000 V DC screw terminal
Brand: Siemens
SKU: 3UG4983-1AA01
Availability: InStock

Nomor Part: 3UG4983-1AA01

Merek

Kunjungi Situs Web

Spesifikasi

Mechanical

Net Weight0.21 kg

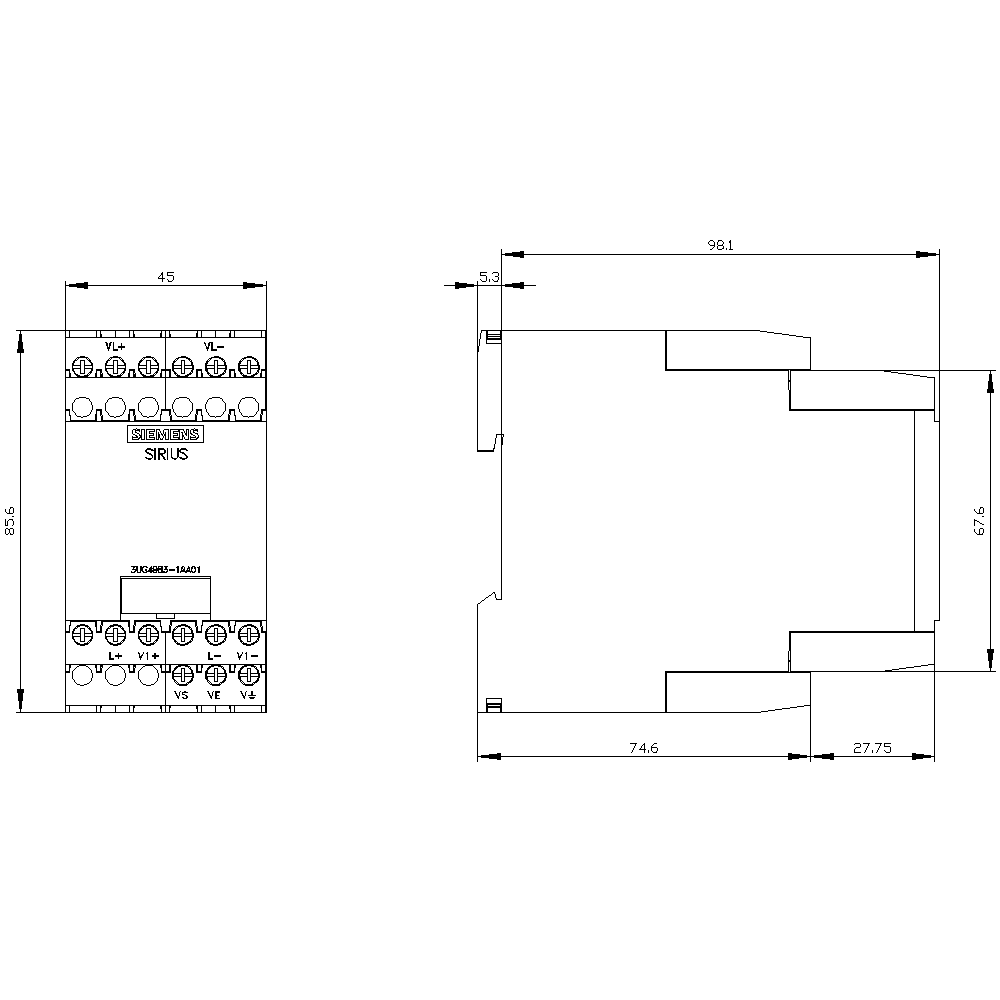

Dimensions

Width45 mm

Height78 mm

Depth100 mm

Other

— upwards0 mm

— forwards0 mm

— backwards0 mm

— downwards0 mm

— at the side0 mm

fastening methodsnap-on fastening on 35 mm DIN rail

product functionConverter module

mounting positionany

product brand nameSIRIUS

product designationVoltage reducer module

measurable voltage at AC0 ... 690 V

measurable voltage at DC0 ... 1 000 V

product type designation3UG4

measurable line frequency15 ... 400 Hz

Substance Prohibitance (Date)05/01/2012

type of electrical connectionscrew terminal

operating frequency rated value15 ... 400 Hz

ambient temperature during operation-25 ... +60 °C

surge voltage resistance rated value8 000 V

reference code according to IEC 81346-2K

number of NC contacts delayed switching0

number of NO contacts delayed switching0

tightening torque with screw-type terminals0.6 ... 0.8 N·m

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

protection class IP on the front according to IEC 60529IP20

product component removable terminal for auxiliary and control circuitNo
