!!! product phase-out !!! the preferred successor is 3UG5842-1AA40 digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC
Nomor Part: 3UG4841-1CA40
Kategori
Effective power (cos phi) monitoring relay

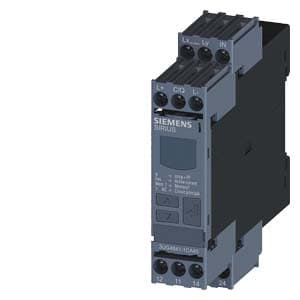

Siemens 3UG4841-1CA40. !!! product phase-out !!! the preferred successor is 3UG5842-1AA40 digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A overshoot and undershoot ON-delay time tripping delay time hysteresis 0.1 to 3.0 A 2 changeover contacts, screw terminal.

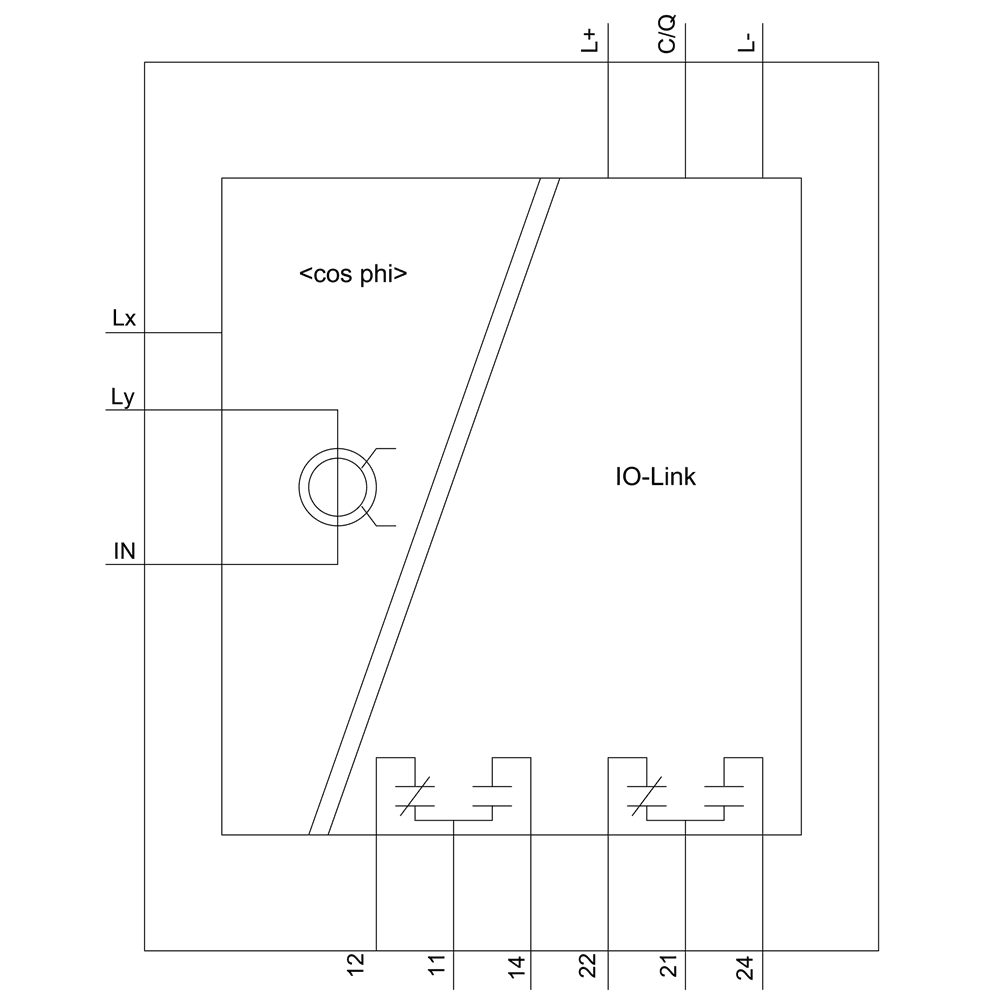

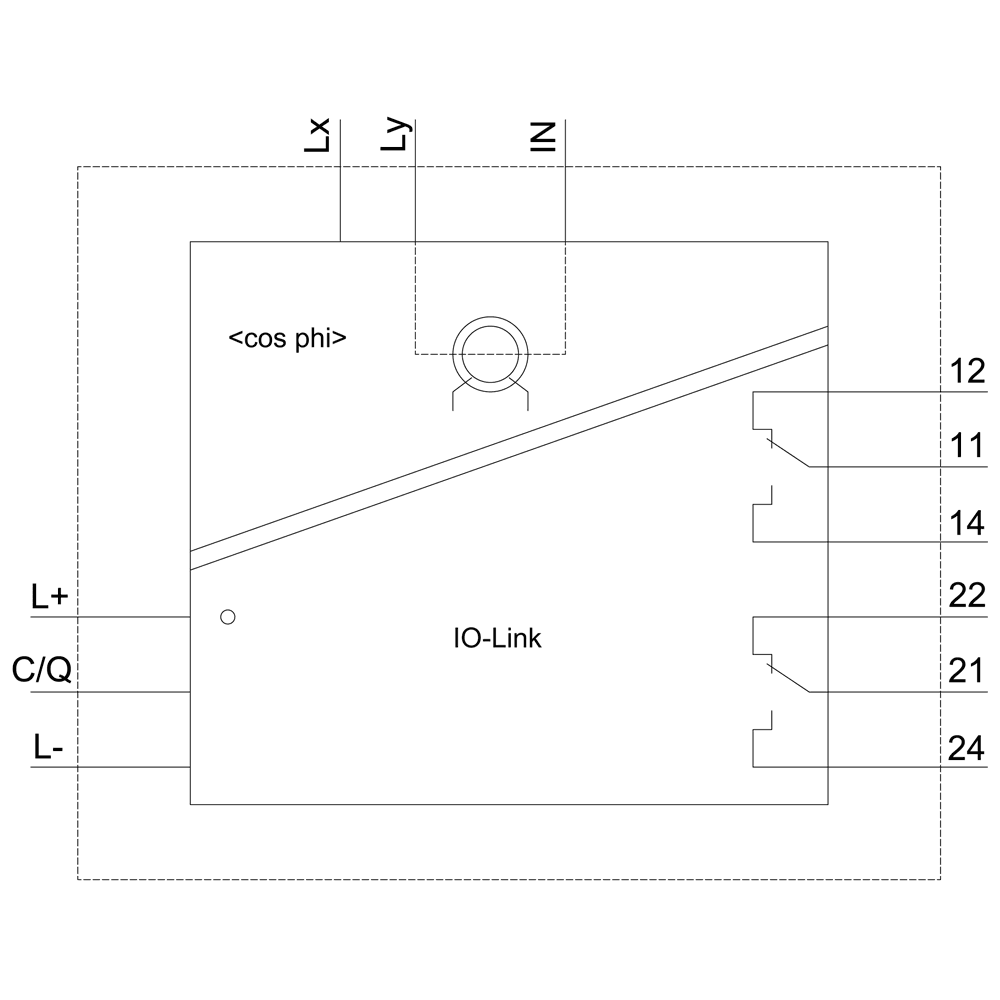

Spesifikasi
Mechanical
Net Weight0.182 kg

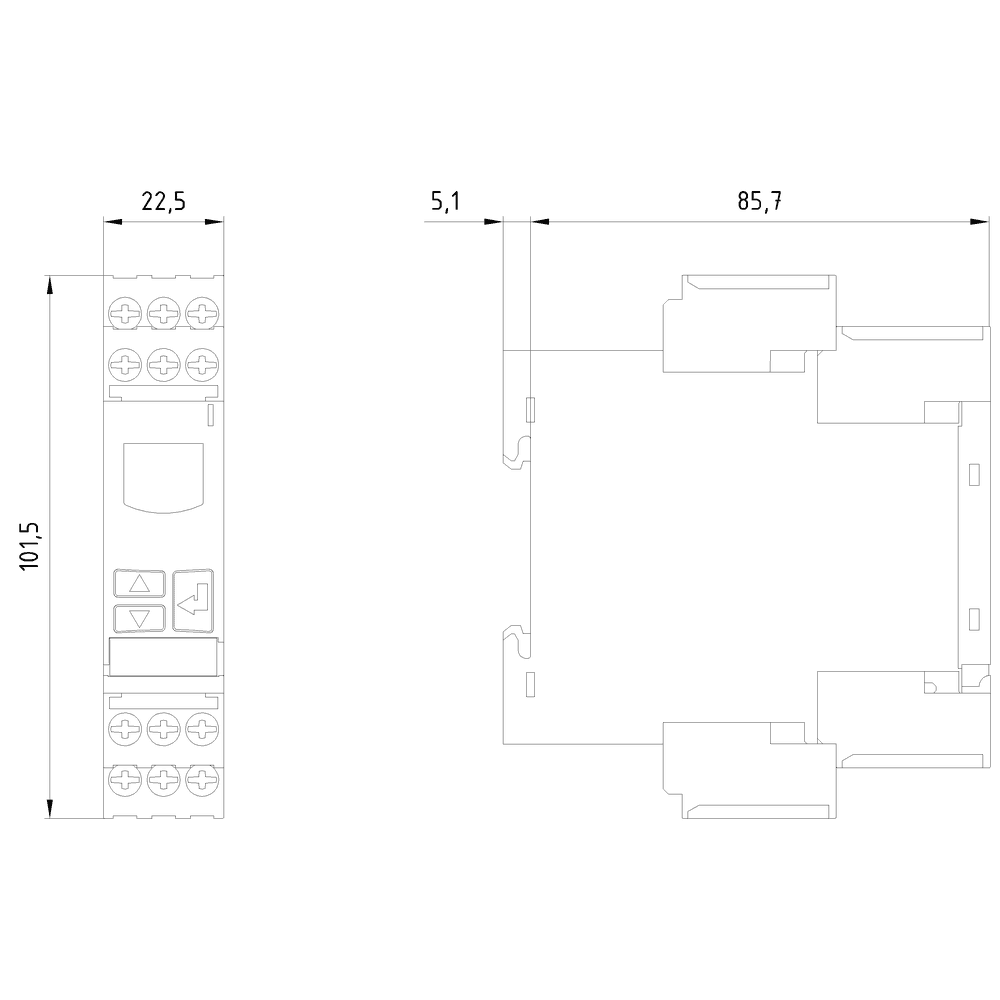

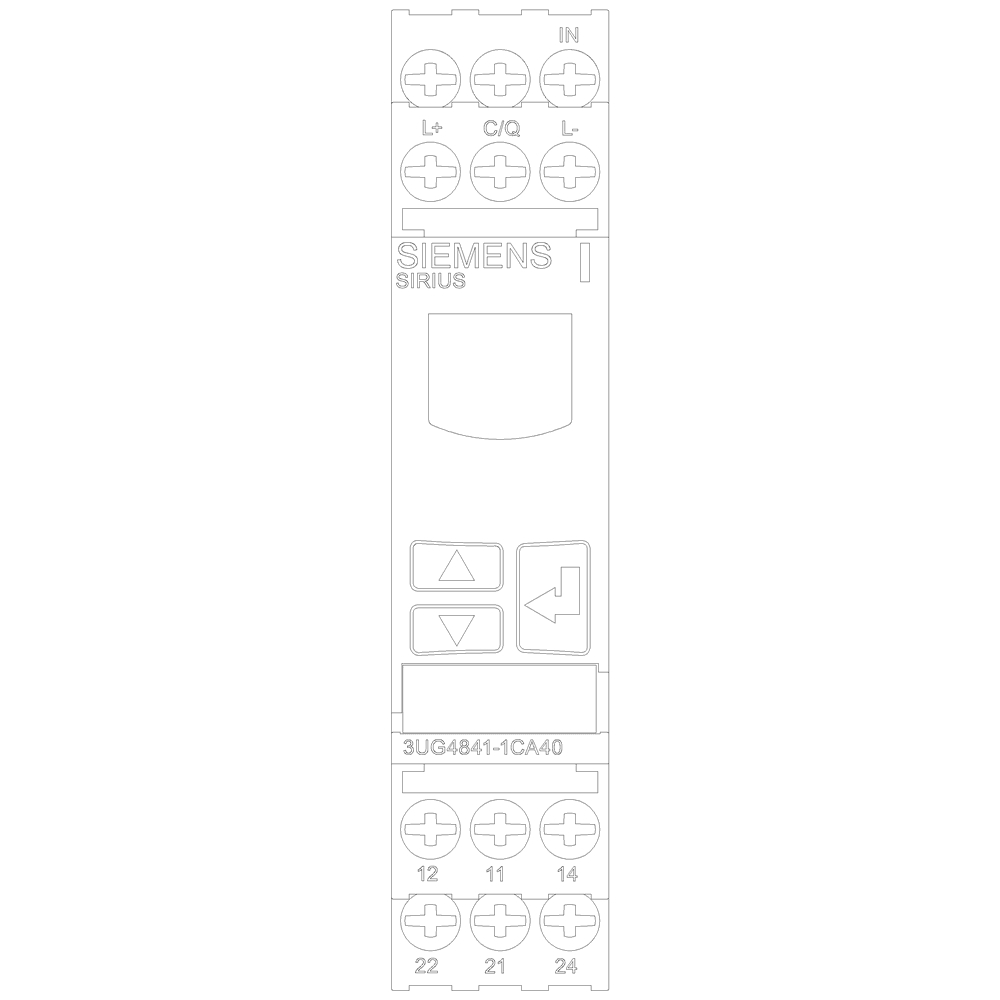

Dimensions
Width22.5 mm
Height102 mm
Depth91 mm
Other
— upwards0 mm
— forwards0 mm
— backwards0 mm
— downwards0 mm
— at the side0 mm
fastening methodsnap-on mounting
product functionActive power monitoring relay
mounting positionany
measurable current0.2 ... 10 A
product brand nameSIRIUS
degree of pollution2
product designationCos phi monitoring relay with digital setting
IO-Link transfer rateCOM2 (38,4 kBaud)
design of the displayLCD
product type designation3UG4
relative repeat accuracy1 %
accuracy of digital display+/-1 digit
relative metering precision10 %
Substance Prohibitance (Date)05/01/2012
operating voltage rated value90 ... 690 V
type of electrical connectionscrew terminal
type of current for monitoringAC
control supply voltage rated value18 ... 30 V
operational current at 17 V minimum10 mA
supply voltage frequency rated value60 Hz
surge voltage resistance rated value6 kV
protocol is supported IO-Link protocolYes
reference code according to IEC 81346-2K
number of CO contacts delayed switching2
number of NC contacts delayed switching0
number of NO contacts delayed switching0
control supply voltage at DC rated value24 ... 24 V
number of poles for main current circuit1
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms
tightening torque with screw-type terminals1.2 ... 0.8 N·m
type of voltage of the control supply voltageDC
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
operating frequency with 3RT2 contactor maximum5 000 1/h
ampacity of the semiconductor output in SIO mode200 mA
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 001
type of voltage supply via input/output link masterYes
installation altitude at height above sea level maximum2 000 m
adjustable switching hysteresis for measured current value0 ... 3 000 mA
continuous current of the DIAZED fuse link of the output relay4 A
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current of the switching element with contacts maximum5 A
point-to-point cycle time between master and IO-Link device minimum10 ms
product component removable terminal for auxiliary and control circuitYes
supply voltage frequency for auxiliary and control circuit rated value0 ... 0 Hz
