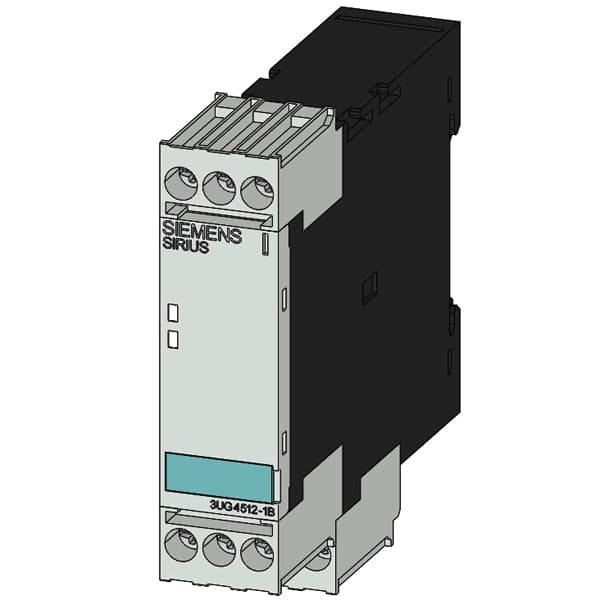

!!! product phase-out !!! the preferred successor is 3UG5512-1BR20 phase failure and sequence monitoring 3 x 160...690 V analog monitoring relay phase failure and sequence monitoring 3 x 160...690 V 50...60 Hz AC 2 changeover contacts screw terminal

Name: !!! product phase-out !!! the preferred successor is 3UG5512-1BR20 phase failure and sequence monitoring 3 x 160...690 V analog monitoring relay phase failure and sequence monitoring 3 x 160...690 V 50...60 Hz AC 2 changeover contacts screw terminal
Brand: Siemens
SKU: 3UG4512-1BR20
Availability: InStock

Nomor Part: 3UG4512-1BR20

Merek

Kunjungi Situs Web

Spesifikasi

Mechanical

Net Weight0.149 kg

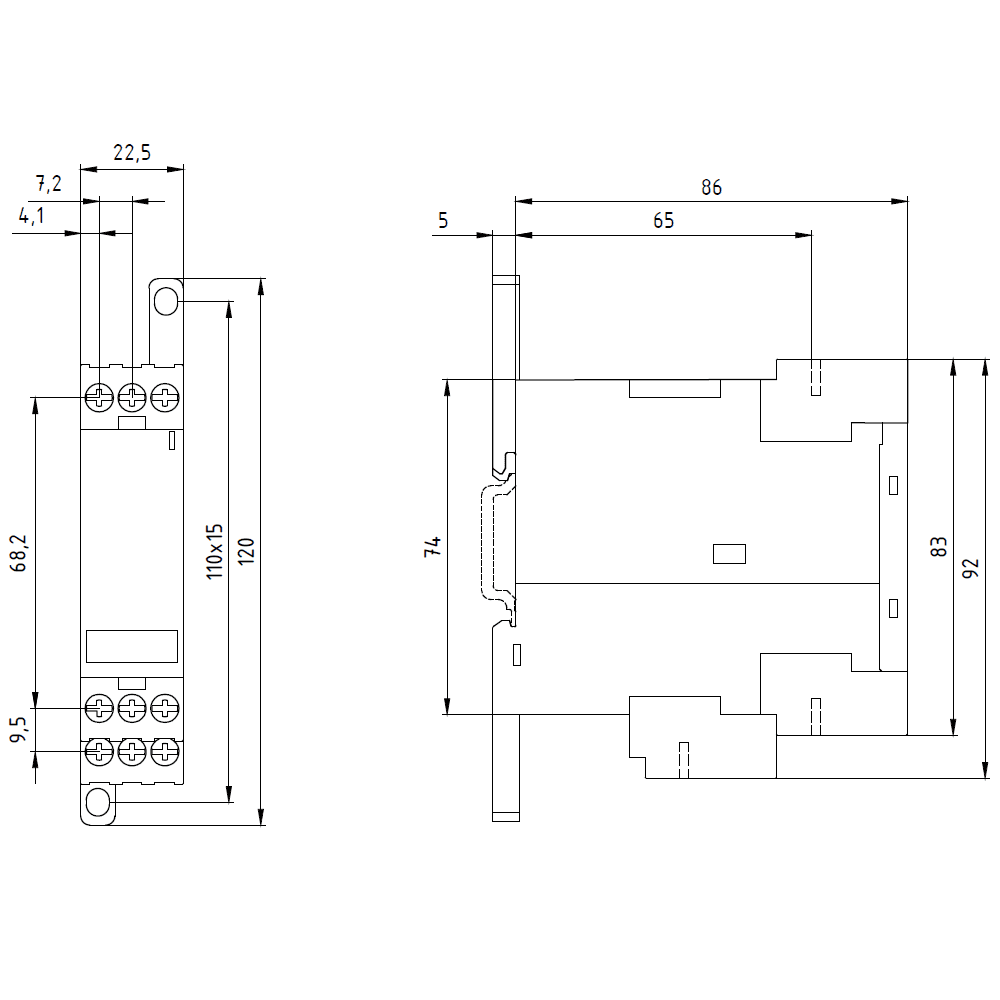

Dimensions

Width22.5 mm

Height92 mm

Depth91 mm

Other

— upwards0 mm

— forwards0 mm

— backwards0 mm

— downwards0 mm

— at the side0 mm

fastening methodsnap-on mounting

product functionPhase monitoring relay

mounting positionany

product brand nameSIRIUS

degree of pollution3

display version LEDYes

product designationLine monitoring relay

design of the product2 functions

response time maximum450 ms

product type designation3UG4

relative repeat accuracy1 %

Substance Prohibitance (Date)05/28/2009

type of electrical connectionscrew terminal

operational current at 17 V minimum5 mA

surge voltage resistance rated value6 kV

reference code according to IEC 81346-2K

number of NC contacts delayed switching0

number of NO contacts delayed switching0

number of poles for main current circuit3

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15g / 11 ms

tightening torque with screw-type terminals0.8 ... 1.2 N·m

type of voltage of the control supply voltageAC

vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g

operating frequency with 3RT2 contactor maximum5 000 1/h

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

field-based interference according to IEC 61000-4-310 V/m

mechanical service life (operating cycles) typical10 000 000

installation altitude at height above sea level maximum2 000 m

protection class IP on the front according to IEC 60529IP20

continuous current of the DIAZED fuse link of the output relay4 A

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

product component removable terminal for auxiliary and control circuitYes
