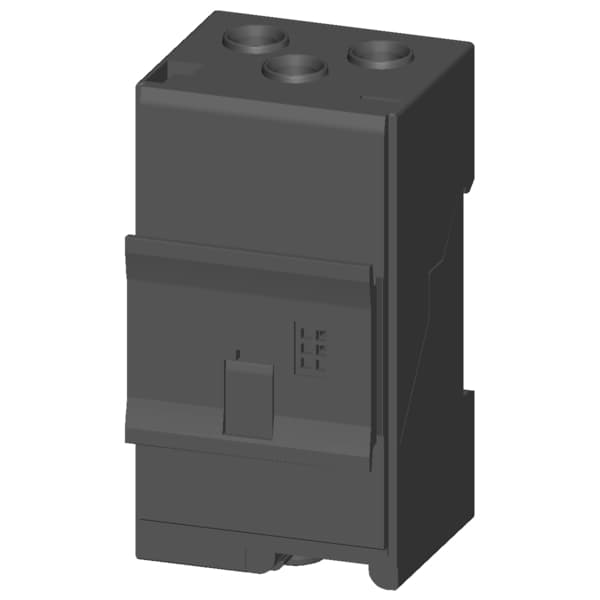

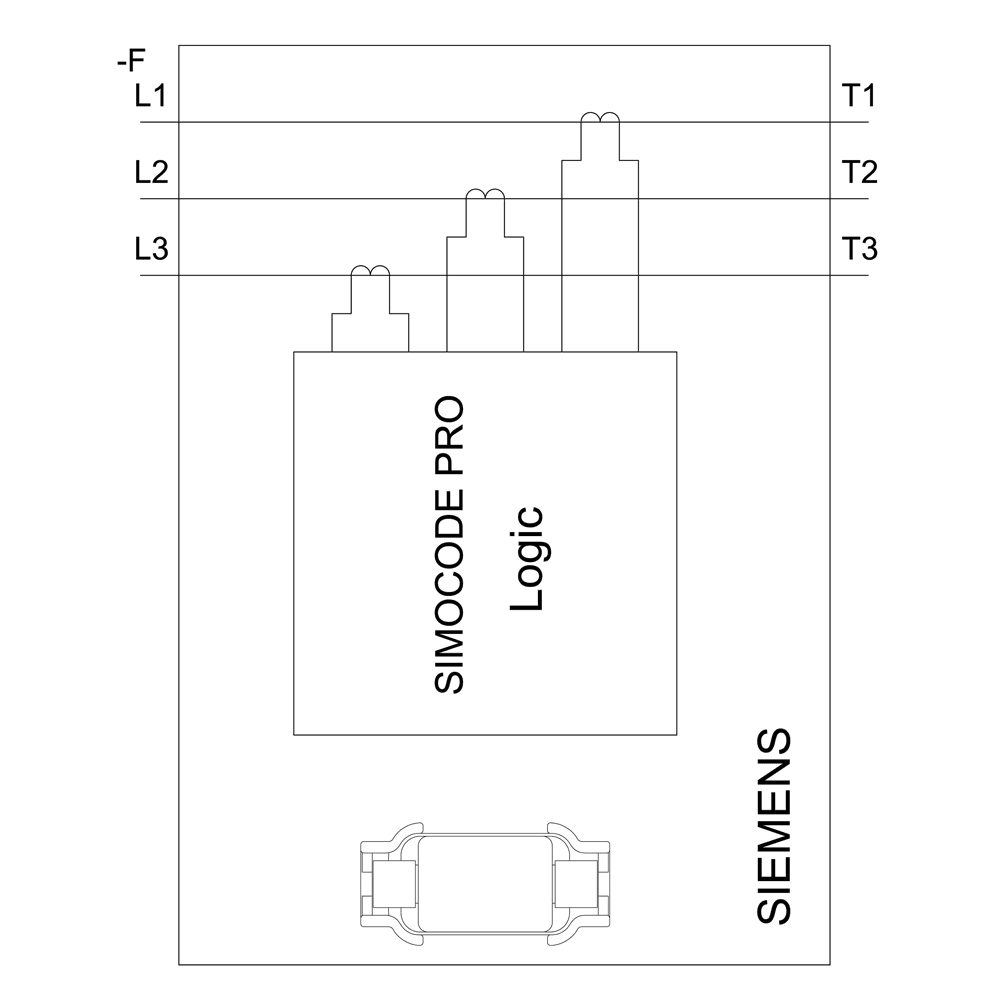

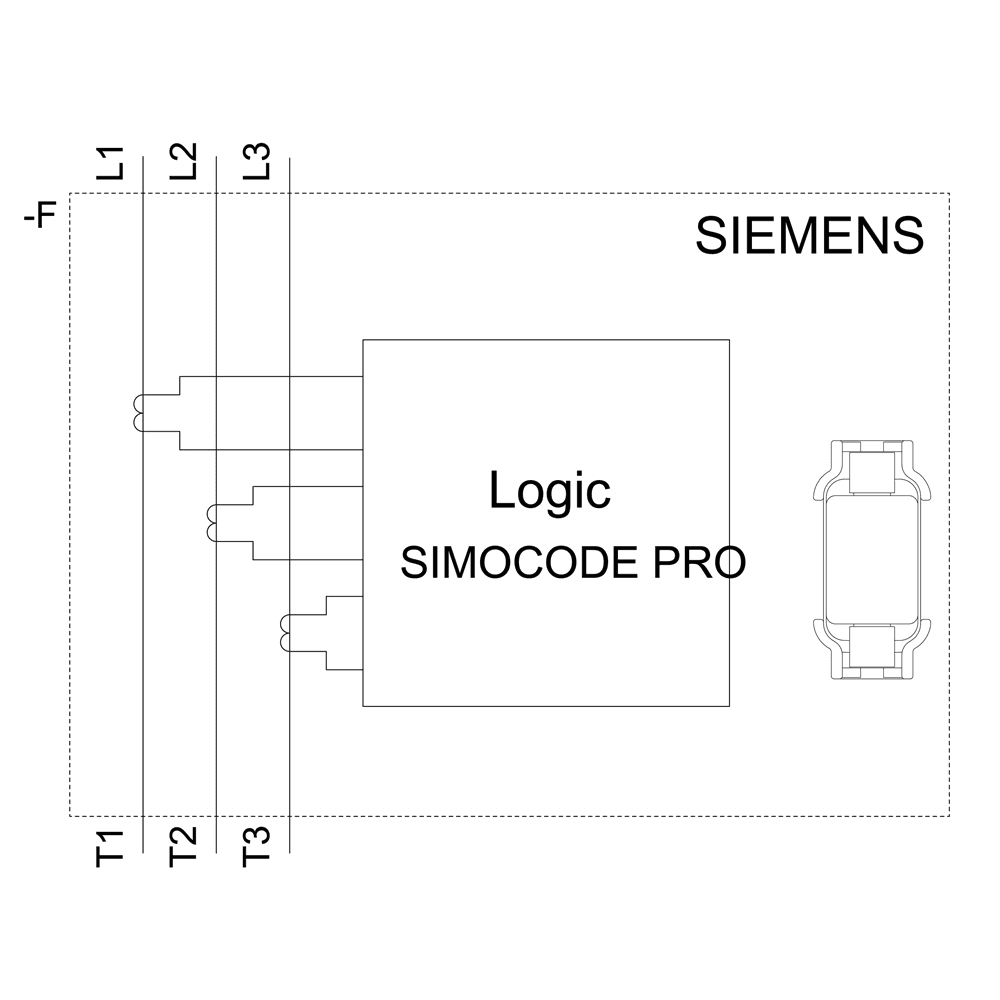

Current measuring module
Nomor Part: 3UF7100-1AA00-0
Kategori
Motor management device
Siemens 3UF7100-1AA00-0. Current measuring module, Set current 0.3...3 A Overall width 45 mm, straight-through transformer.
Spesifikasi
Mechanical
Net Weight0.164 kg

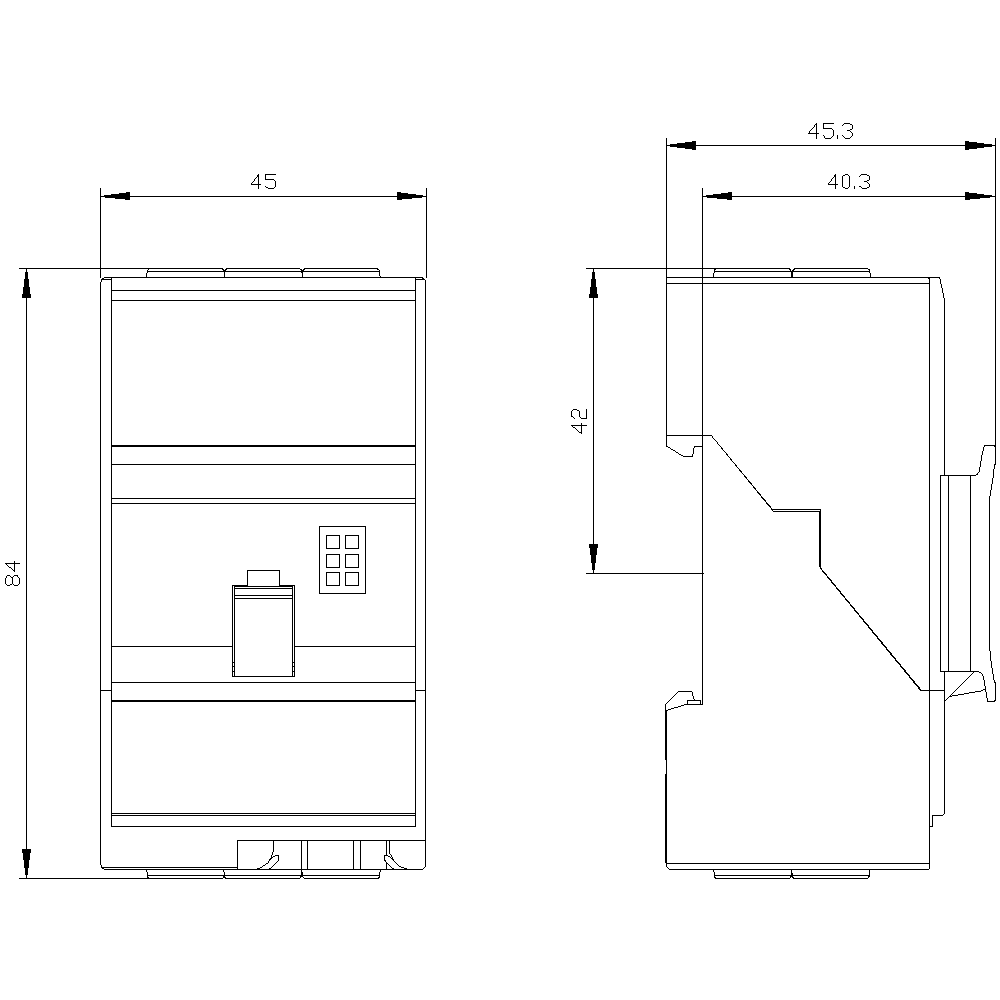

Dimensions
Width45 mm
Height84 mm
Depth45 mm
Other
trip classCLASS 5E
type of voltageAC
fastening methodscrew and snap-on mounting
mounting positionany
product brand nameSIMOCODE
product designationCurrent measuring module
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g
— at 50 Hz rated value110 ... 690 V
— at 60 Hz rated value110 ... 690 V
consumed active power0.2 W
diameter of inlet opening7.5 mm
size of the circuit-breakerS00, S0
Substance Prohibitance (Date)05/28/2009
operating frequency rated value50 ... 60 Hz
relative humidity during operation5 ... 95 %
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value6 000 V
reference code according to IEC 81346-2F
number of poles for main current circuit3
product function short circuit protectionNo
shock resistance according to IEC 60068-2-2715g / 11 ms
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
diameter of inlet opening for current measurement7.5 mm
Safety Integrity Level (SIL) according to IEC 615081
number of outputs as contact-affected switching element0
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)
adjustable current response value current of the current-dependent overload release0.3 ... 3 A
