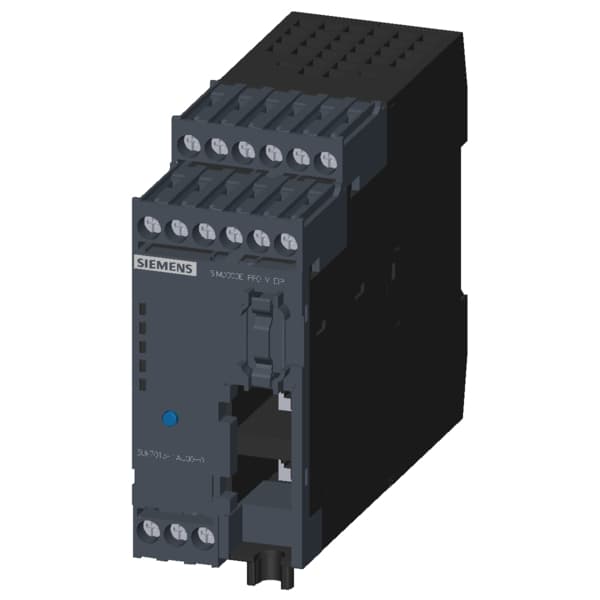

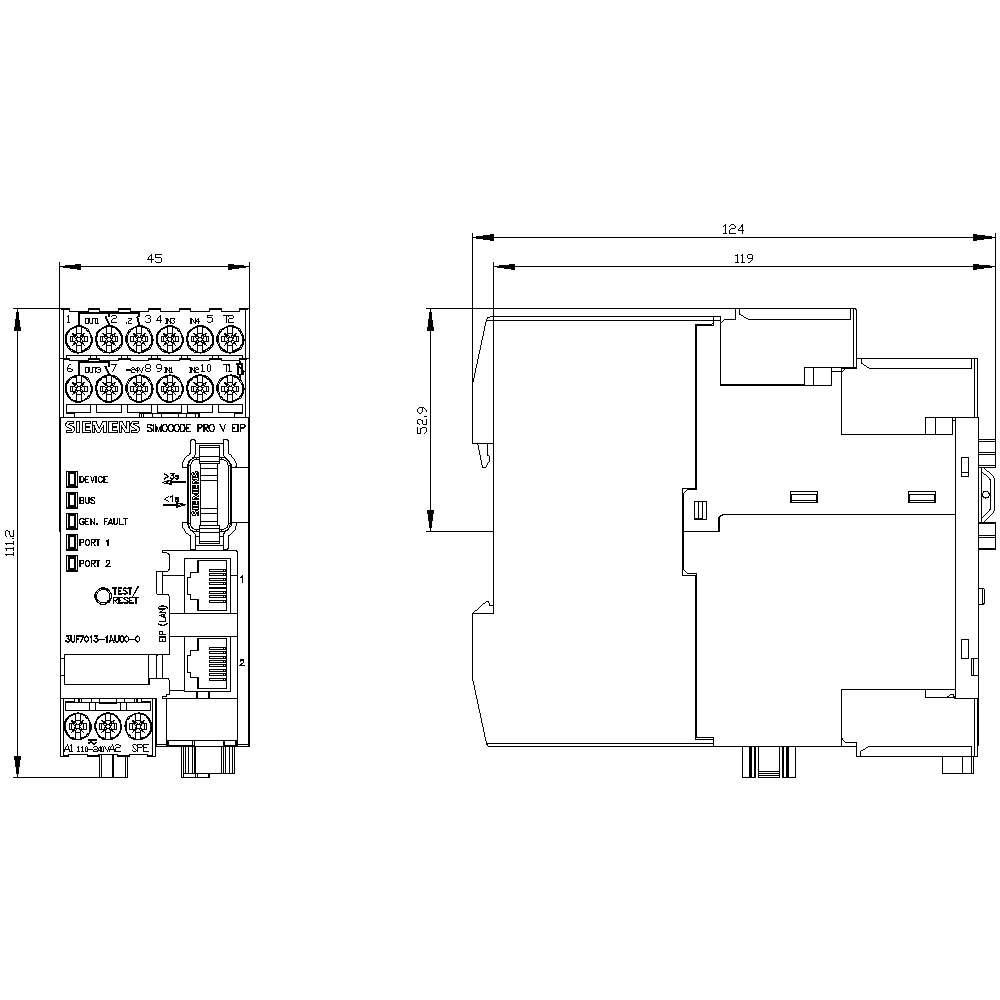

fastening methodscrew and snap-on mounting
number of inputs4
mounting positionany
number of outputs3
product brand nameSIMOCODE
switching behaviormonostable
product designationMotor management system
consumed active power4.8 W
design of the productbasic unit 3
transfer rate maximum100 Mbit/s
type of relay outputsMonostable
number of relay outputs3
apparent power consumption8.3 VA
Substance Prohibitance (Date)03/01/2017
type of input characteristicType 1 in accordance with EN 61131-2
number of semiconductor outputs0
release value of thermoresistor1 500 ... 1 650 Ω
response value of thermoresistor3 400 ... 3 800 Ω
design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
surge voltage resistance rated value4 000 V
product function soft starter controlYes
reference code according to IEC 81346-2F
wire length for digital signals maximum300 m
control supply voltage at DC rated value110 ... 240 V
touch protection against electrical shockfinger-safe
tightening torque with screw-type terminals0.8 ... 1.2 N·m
buffering time in the event of power failure0.02 s
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
electrical endurance (operating cycles) typical100 000
type of voltage of the control supply voltageAC/DC
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
EMC emitted interference according to IEC 60947-1class A
field-based interference according to IEC 61000-4-310 V/m
mechanical service life (operating cycles) typical10 000 000
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
contact rating of auxiliary contacts according to ULB300 / R300
number of outputs as contact-affected switching element3
installation altitude at height above sea level maximum2 000 m
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
total cold resistance number of sensors in series maximum1.5 kΩ
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
number of digital inputs with a common reference potential4
type of electrical connection of the communication interface2x RJ45
insulation voltage with degree of pollution 3 at AC rated value300 V
product component removable terminal for auxiliary and control circuitYes
relative symmetrical tolerance of the control supply voltage frequency5 %
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2) / I (M2), II (1/2) G, II (1G/2D)
