cable entry typeWithout

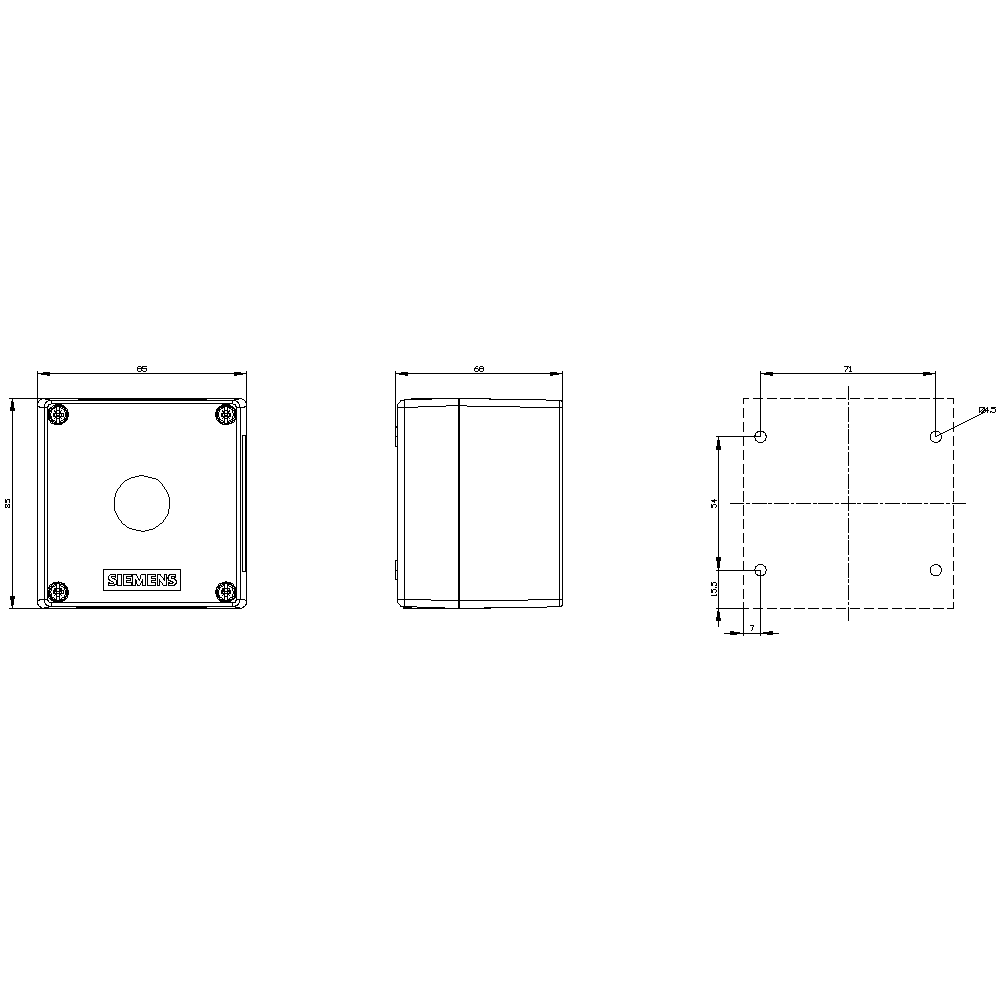

mounting diameter22.3 mm
product brand nameSIRIUS ACT

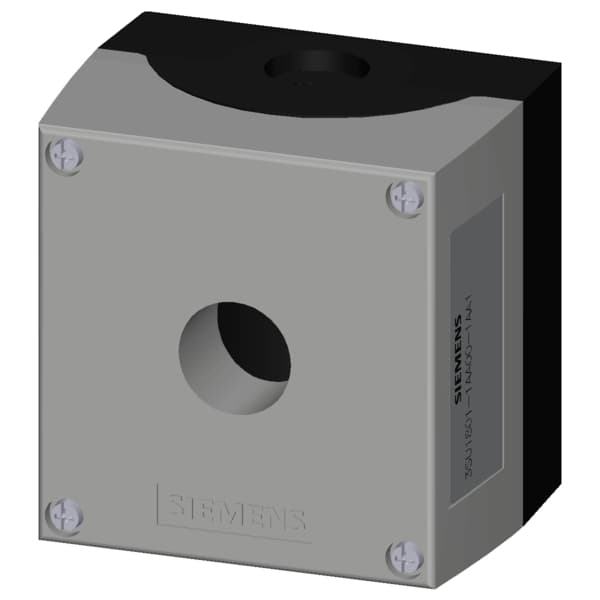

product designationEnclosures
protection class IPIP66, IP67, IP69(IP69K)
design of the housingCommand point in center
number of command points1
product type designation3SU1
material of the enclosureplastic
Substance Prohibitance (Date)10/01/2014
shape of the enclosure frontSquare
color of the enclosure top partgrey
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
fastening method of the enclosureVertical / horizontal
product component protective collarNo
type of electrical connection on enclosureCable routing above and below, both 1 x M20
fastening method of modules and accessoriesFront plate mounting
positive tolerance of installation diameter0.4 mm
tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
