product linePlastic, black, 22 mm
mounting height11.4 mm
fastening methodfront plate mounting
mounting diameter22.3 mm
installation depth49.6 mm
installation width29.5 mm
product brand nameSIRIUS ACT
degree of pollution3

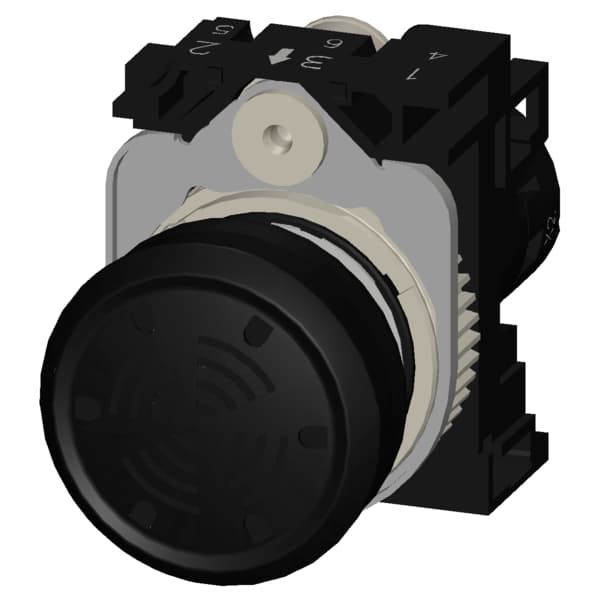

product designationAcoustic signaling device
protection class IPIP66, IP67, IP69(IP69K)
design of the productCompact unit
inrush current maximum3 A
material of the holderPlastic
number of command points1
product type designation3SU1
Substance Prohibitance (Date)10/01/2014
product component front ringNo
type of electrical connectionscrew terminal
color of the actuating elementblack
insulation voltage rated value320 V
shape of the actuating elementround
degree of protection NEMA rating1
loudness level at 10 cm distance75 dB
material of the actuating elementplastic
shape of the installation openinground
protection class IP of the terminalIP20, clamping screw tightened
surge voltage resistance rated value4 kV
reference code according to IEC 81346-2P
outer diameter of the actuating element29.5 mm
tightening torque with screw-type terminals0.8 ... 1 N·m
positive tolerance of installation diameter0.4 mm
tightening torque of the screws in the bracket1 ... 1.2 N·m
relative negative tolerance of the operating voltage20 %
relative positive tolerance of the operating voltage20 %
consumed current at rated value of operating voltage maximum32 mA
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
type of voltage of the supply voltage of the acoustic signal elementAC
