Aktif
Potentiometer
Nomor Part: 3SU1200-2PQ10-1AA0
Kategori
Potentiometer for command devices

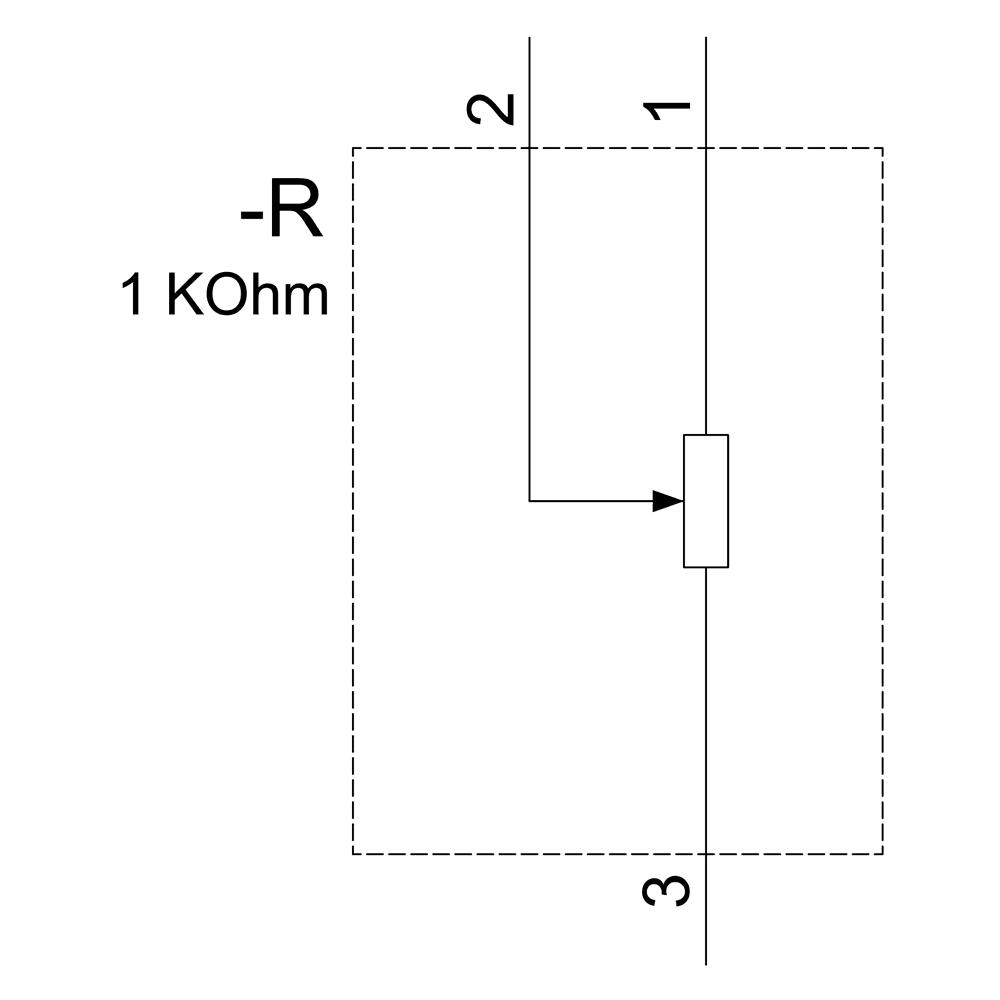

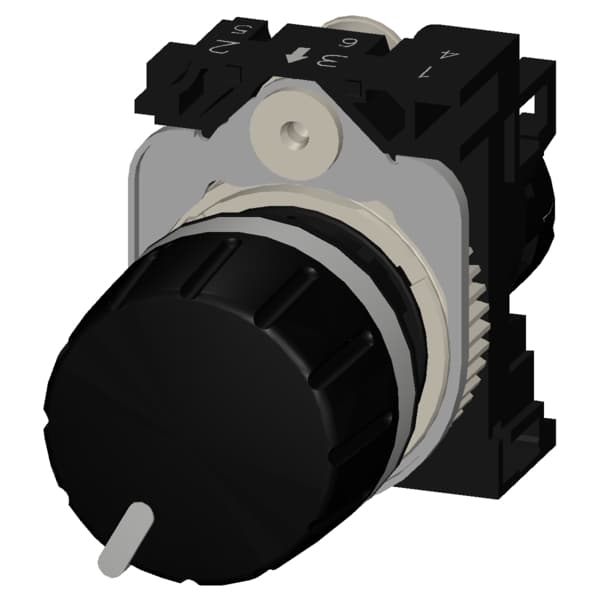

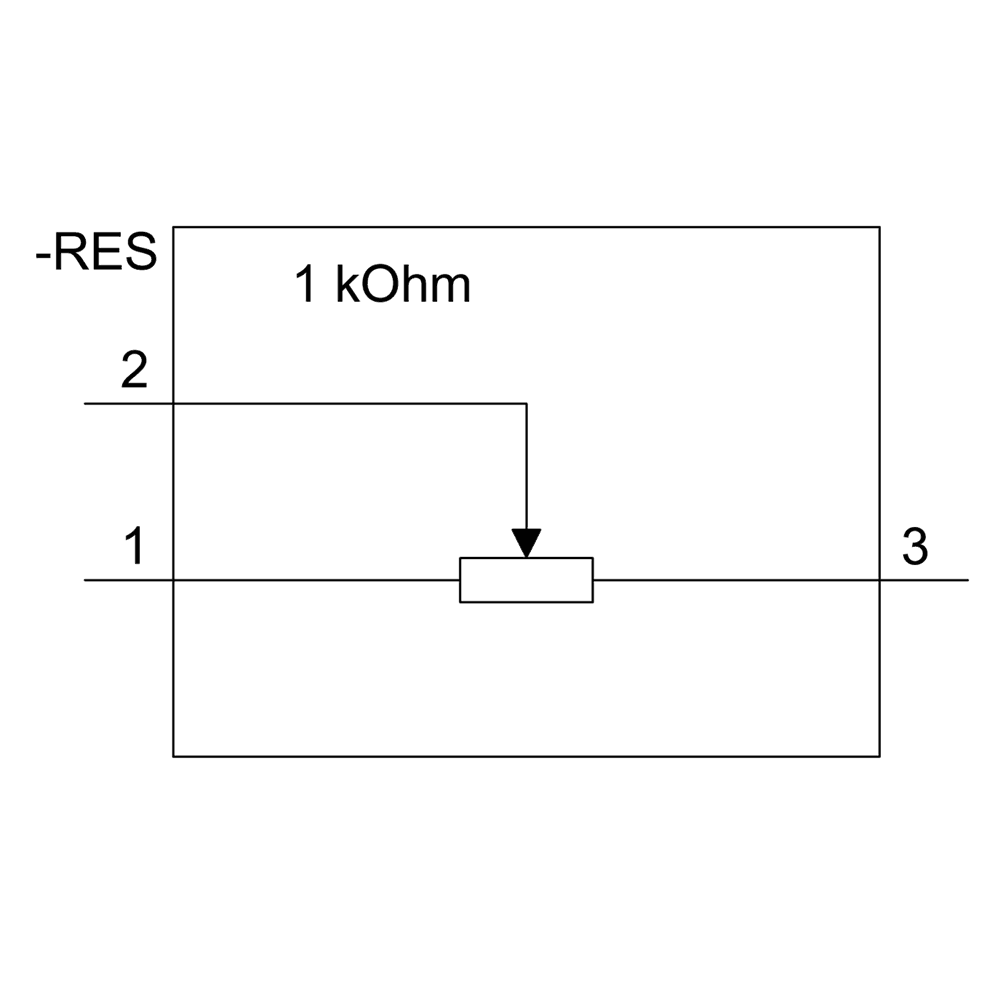

Siemens 3SU1200-2PQ10-1AA0. Potentiometer, compact, 22 mm, round, plastic, black, 1k ohm, with holder, screw terminal.
Spesifikasi
Mechanical
Net Weight65.5 g
Dimensions
Width30 mm
Height40 mm
Other
product linePlastic, black, 22 mm
mounting height19.4 mm
mounting diameter22.3 mm
installation depth46 mm
installation width30 mm
product brand nameSIRIUS ACT
degree of pollution3
product designationPotentiometers
protection class IPIP66, IP67, IP69(IP69K)
consumed active power1 W
design of the productCompact unit
material of the holderPlastic
number of command points1
product type designation3SU1
Maximum deflection angle [°]280°
Substance Prohibitance (Date)01/01/2016
product component front ringNo
type of electrical connectionscrew terminal
color of the actuating elementblack
insulation voltage rated value500 V
shape of the actuating elementround
design of the actuating elementRotary knob
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
material of the actuating elementplastic
shape of the installation openinground
protection class IP of the terminalIP20, clamping screw tightened
reference code according to IEC 81346-2S
outer diameter of the actuating element30 mm
tightening torque with screw-type terminals0.8 ... 1 N·m
positive tolerance of installation diameter0.4 mm
tightening torque of the screws in the bracket1 ... 1.2 N·m
principle of operation of the actuating elementInfinitely variable adjustment, angle of rotation 280°
mechanical service life (operating cycles) typical25 000
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)
