thermal current6 A
cable entry type2x M25 x 1,5
fastening methodscrew fixing

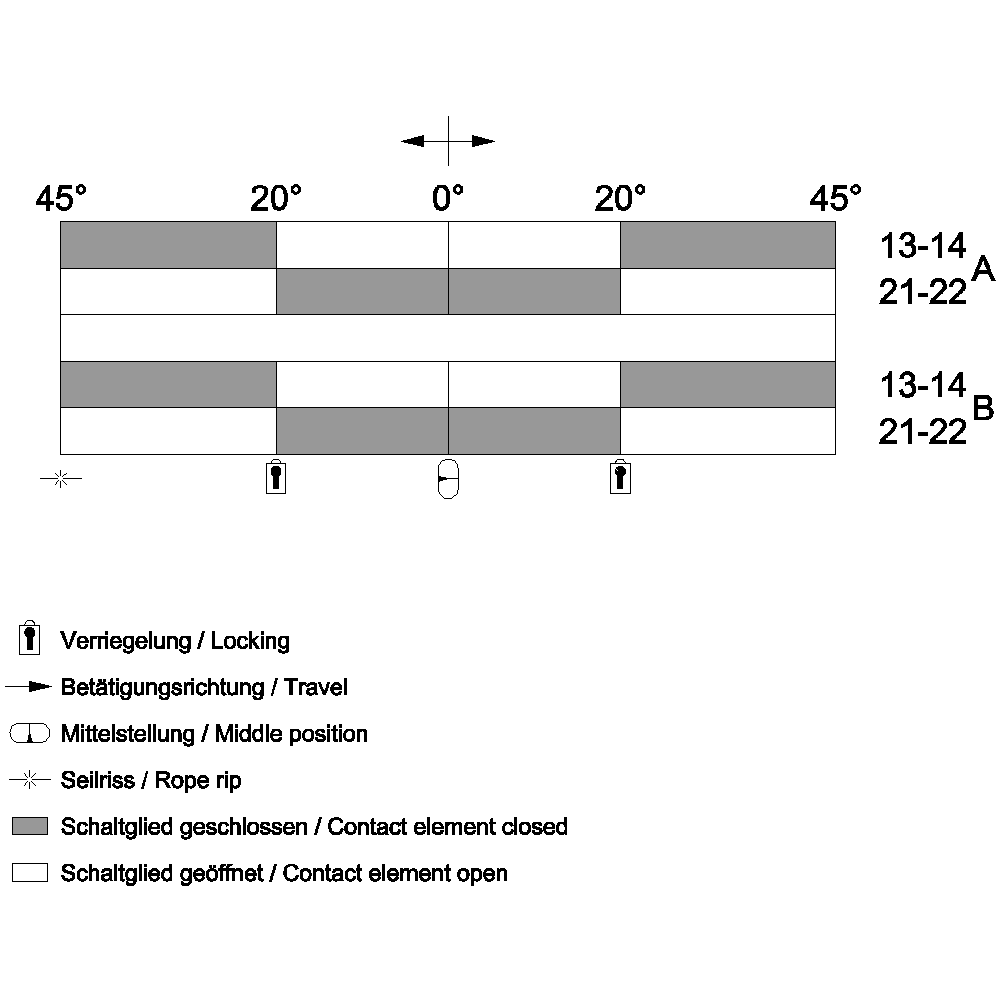

circuit principleJump function
product brand nameSIRIUS
degree of pollutionclass 3

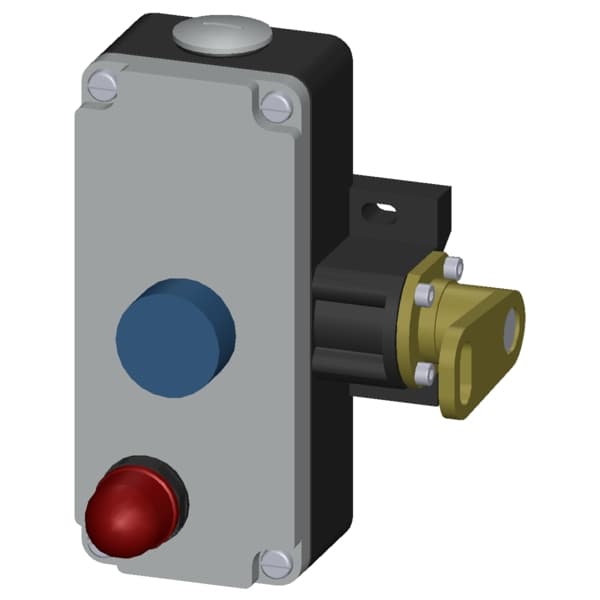

product designationcable-operated switch
protection class IPIP65
material of the contactSilver
coating of the enclosurepainted
product type designation3SE7
color of the light sourcered
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value400 V
product component light sourceYes
material of the enclosure coverMetal
product function status displayNo
ambient temperature during operation-25 ... +70 °C
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2S
product component EMERGENCY STOP deviceNo
product function EMERGENCY STOP functionYes
number of switching contacts safety-related2
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
continuous current of the DIAZED fuse link gG6 A
mechanical service life (operating cycles) typical100 000
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
B10 value with high demand rate according to SN 31920100 000
supply voltage 1 of the light source at DC rated value24 V
type of voltage of the supply voltage of the light sourceDC
proportion of dangerous failures with high demand rate according to SN 3192050 %
