thermal current6 A
cable entry type2x M20 x 1,5
fastening methodscrew fixing

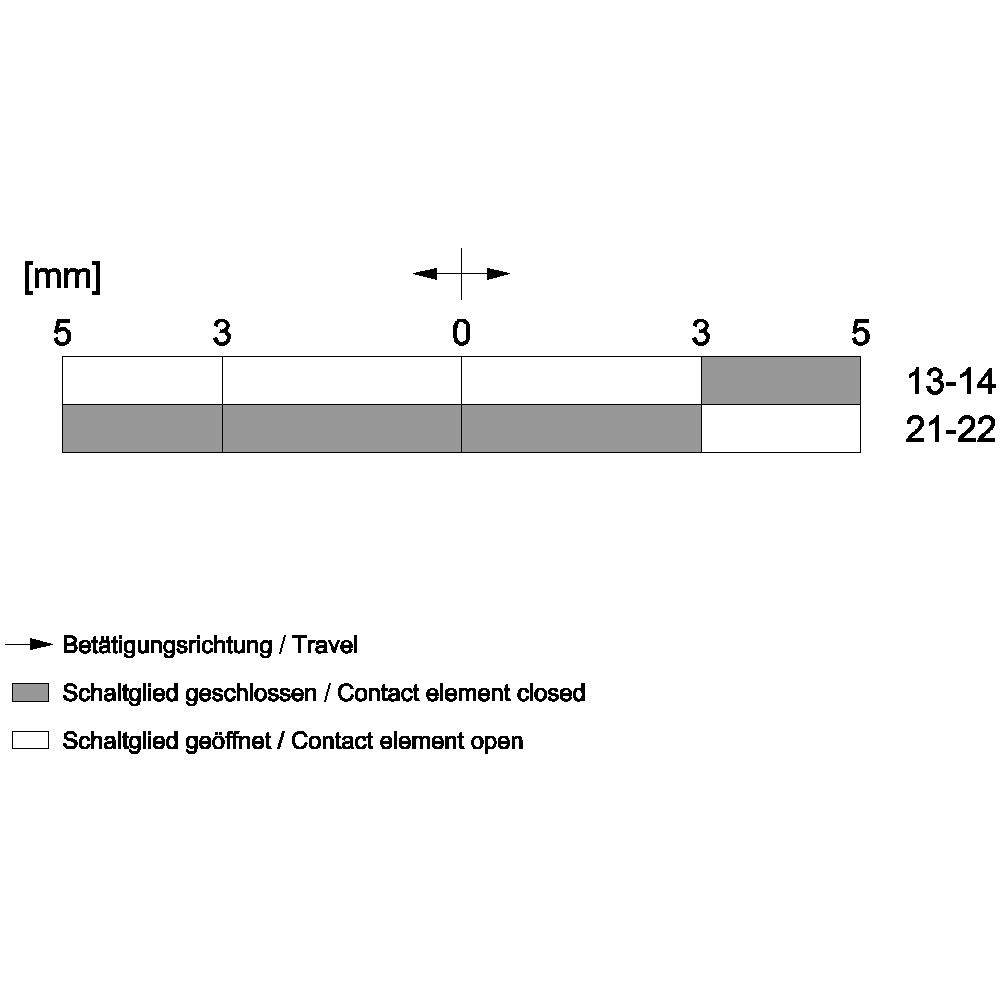

circuit principleJump function
product brand nameSIRIUS
degree of pollutionclass 3

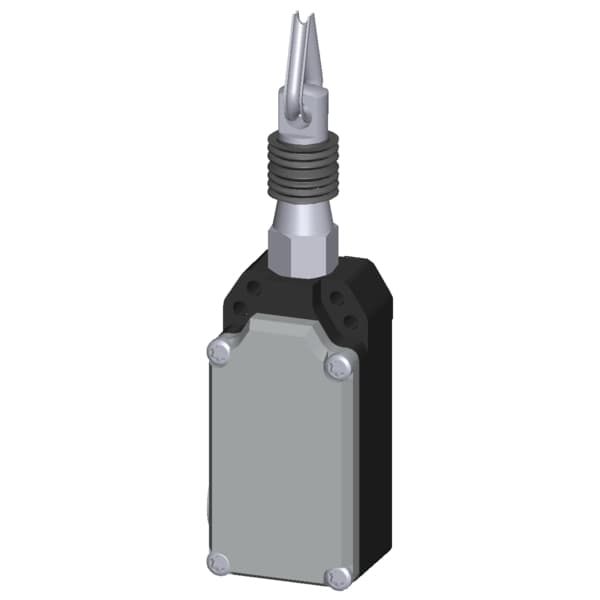

product designationcable-operated switch
protection class IPIP65
material of the contactSilver
coating of the enclosurepainted
product type designation3SE7
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value400 V
product component light sourceNo
material of the enclosure coverPlastic
product function status displayNo
ambient temperature during operation-25 ... +70 °C
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2S
product component EMERGENCY STOP deviceNo
product function EMERGENCY STOP functionNo
number of switching contacts safety-related1
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
continuous current of the DIAZED fuse link gG6 A
mechanical service life (operating cycles) typical1 000 000
