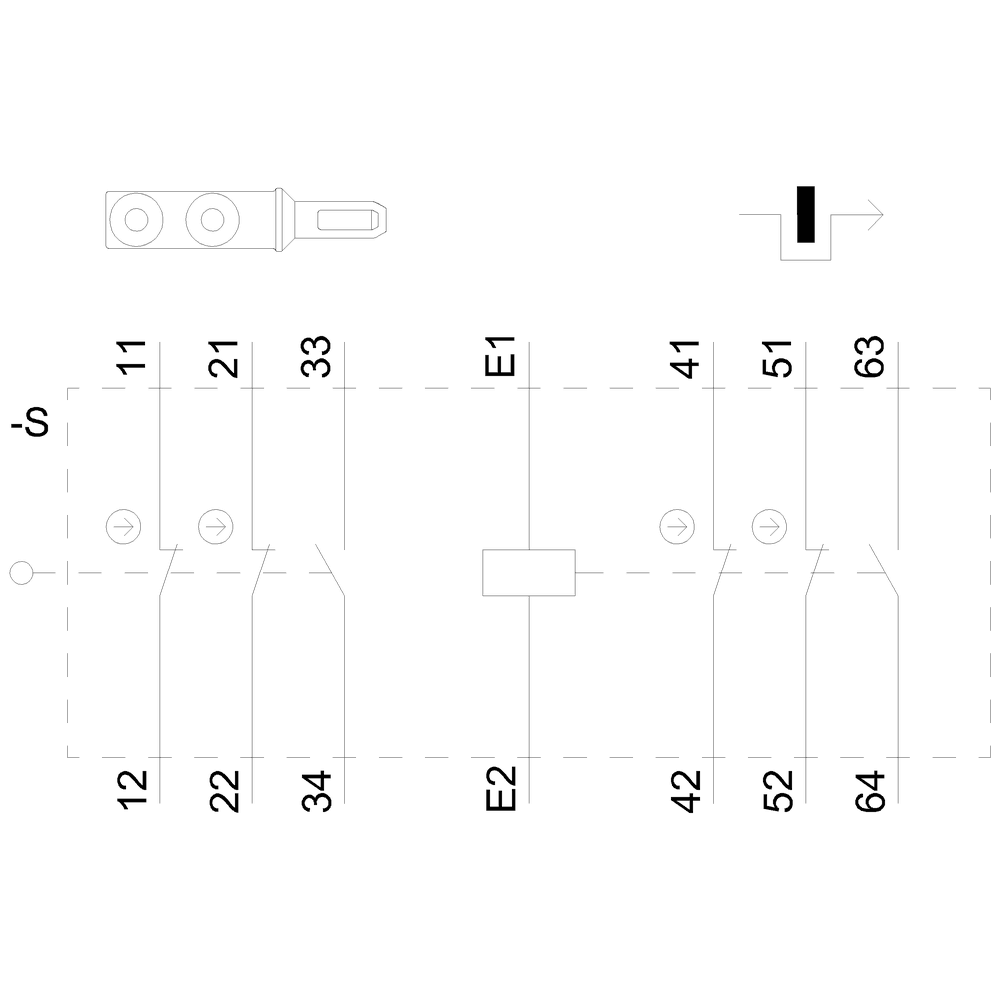

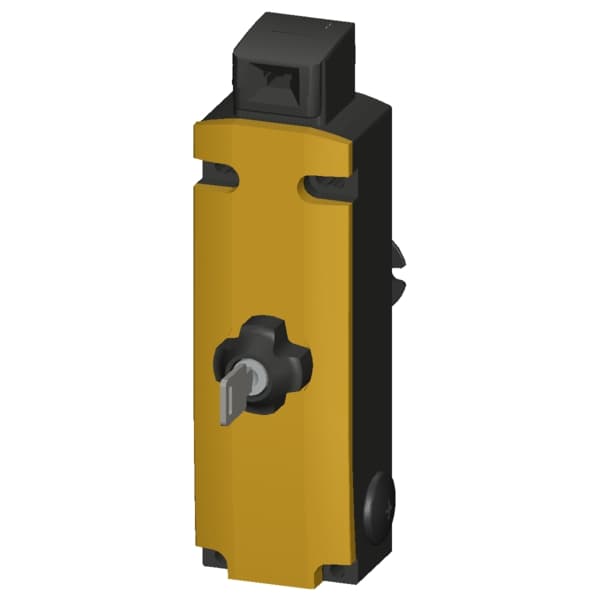

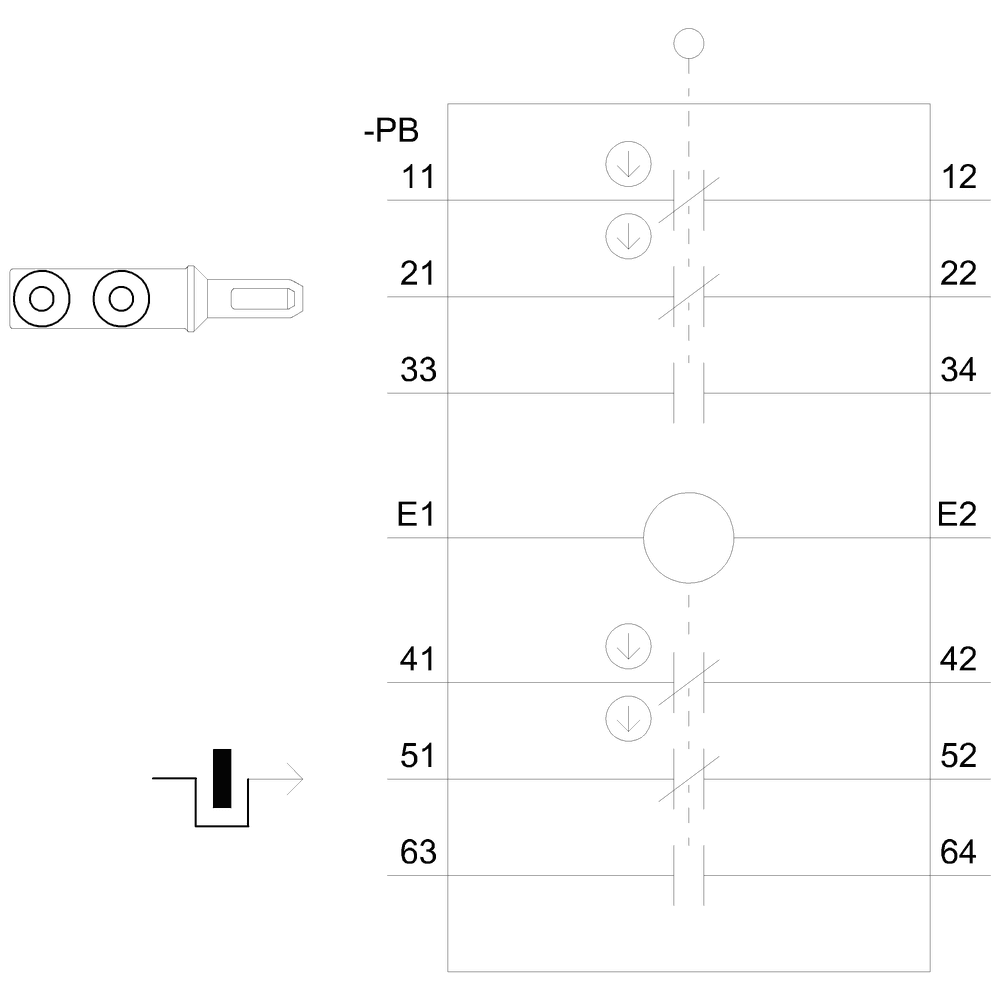

safety position switch with guard lock locking force 2600 N 5 approach directions spring-locked escape release from the rear and auxiliary release with lock on the front magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO supplied without actuator

Name: safety position switch with guard lock locking force 2600 N 5 approach directions spring-locked escape release from the rear and auxiliary release with lock on the front magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO supplied without actuator
Brand: Siemens
SKU: 3SE5312-0SH11
Availability: InStock

Nomor Part: 3SE5312-0SH11

Siemens 3SE5312-0SH11. safety position switch with guard lock locking force 2600 N 5 approach directions spring-locked escape release from the rear and auxiliary release with lock on the front magnet voltage 24 V DC monitoring actuator 2 NC/1 NO monitoring magnet 2 NC/1 NO supplied without actuator, actuator 3SE5000-0AV0. to be ordered separately..

Spesifikasi

Mechanical

Net Weight1.285 kg

Other

locking force2 600 N

repeat accuracy0.05 mm

thermal current10 A

cable entry type3x (M20 x 1.5)

fastening methodscrew fixing

shock resistance30g / 11 ms

circuit principleslow-action contacts

mounting positionany

product brand nameSIRIUS

degree of pollutionclass 3

product designationMechanical safety switches

protection class IPIP65/IP67

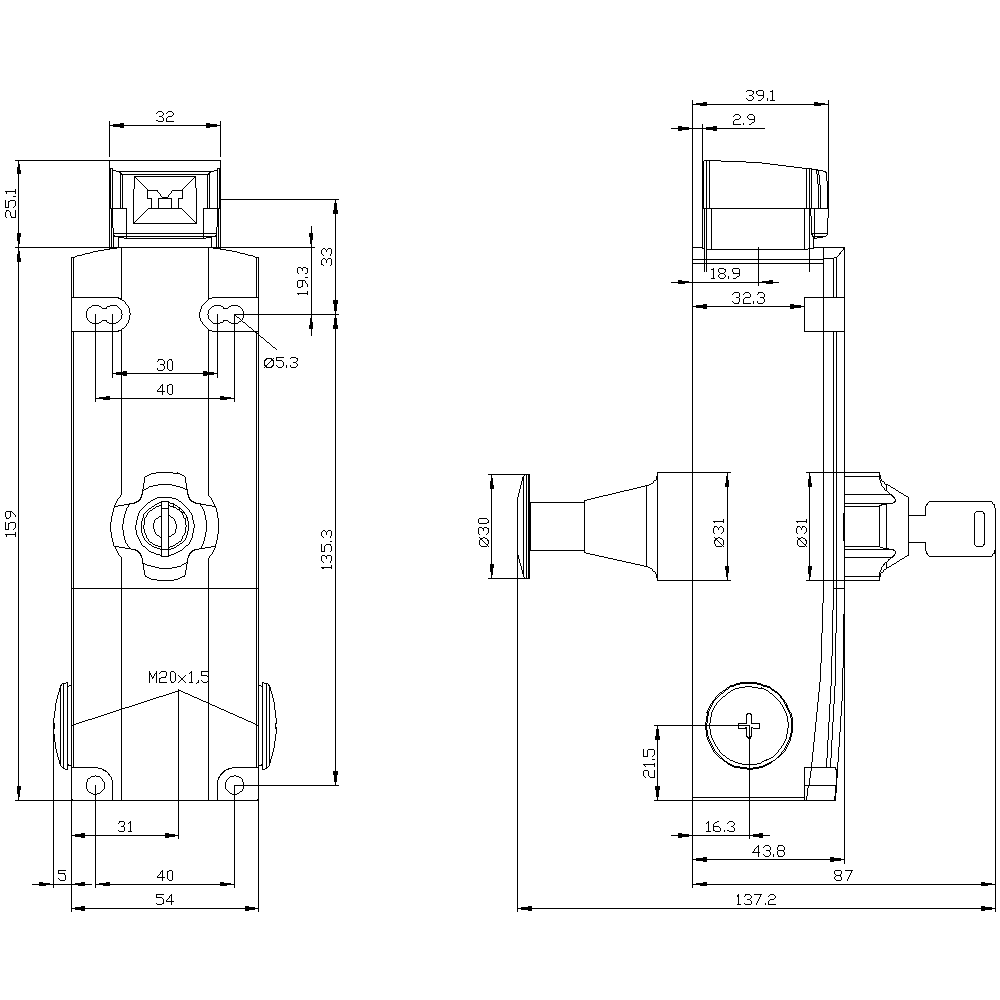

width of the sensor54 mm

length of the sensor185 mm

service life maximum20 a

vibration resistance0.35 mm / 5g

design of the housingspecial design

design of the productwith separate actuator and with tumbler

design of the interfacewithout

coating of the enclosurecathodic dip coating

locking mechanism designspring-locked (closed-circuit current principle) with escape unlocking at the rear and lock on the front

product type designation3SE5

material of the enclosuremetal

Substance Prohibitance (Date)10/01/2011

supply voltage of magnet coil24 V

type of electrical connectionscrew terminal

insulation voltage rated value250 V

design of the actuating element5 directions of approach

design of the switching functionpositive opening

number of directions of actuation5

product function positive openingYes

suitability for use safety switchYes

device type according to ISO 13849-13

consumed active power of magnet coil3.5 W

surge voltage resistance rated value4 kV

explosion protection category for dustnone

reference code according to IEC 81346-2B

test wear-related service life necessaryYes

number of switching contacts safety-related4

design of the housing according to standardNo

material of the enclosure of the switch headmetal

continuous current of the DIAZED fuse link gG6 A; for a short-circuit current smaller than 400 A

product function suitable for safety functionYes

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A

mechanical service life (operating cycles) typical1 000 000

minimum actuating force in directions of actuation30 N

B10 value with high demand rate according to SN 319201 000 000

manufacturer's article number of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing

design of the interface for safety-related communicationwithout

failure rate [FIT] with low demand rate according to SN 31920100 FIT
