locking force2 600 N
repeat accuracy0.05 mm
thermal current10 A
cable entry type3x (M20 x 1.5)
fastening methodscrew fixing
shock resistance30g / 11 ms

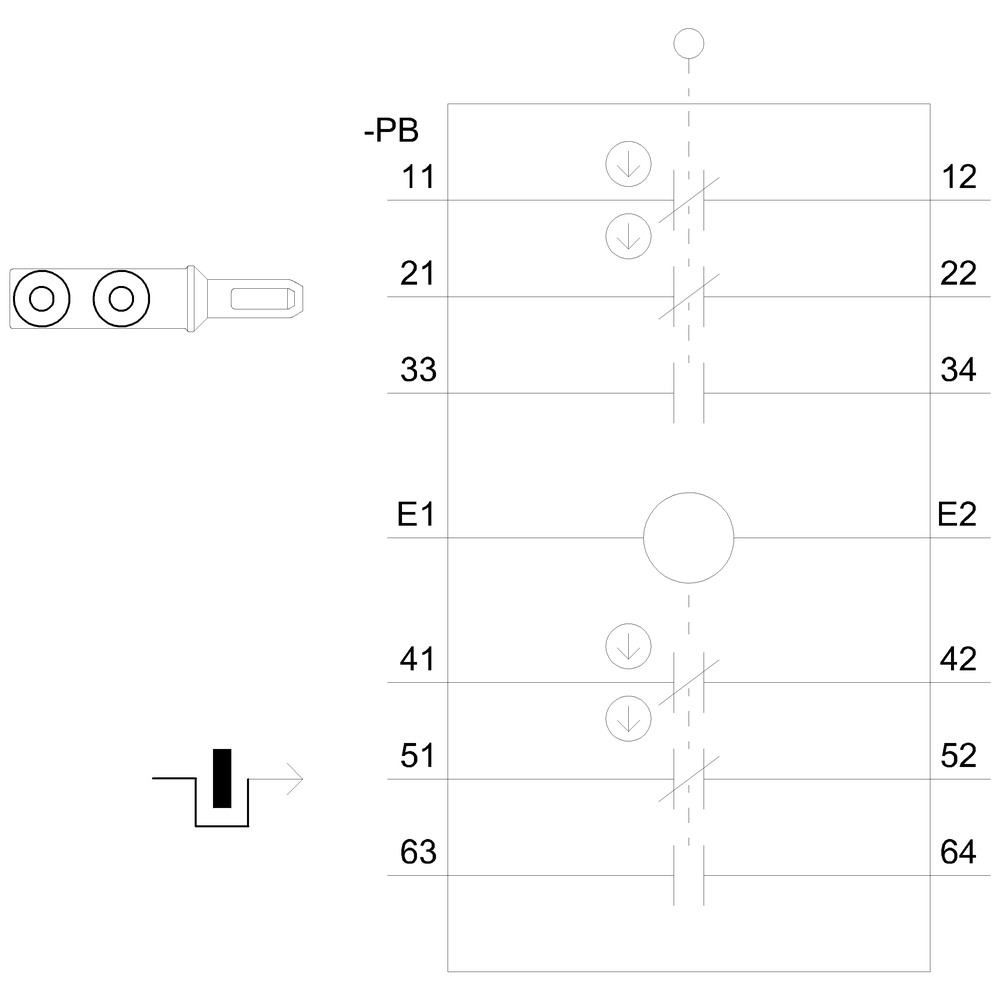

circuit principleslow-action contacts
mounting positionany

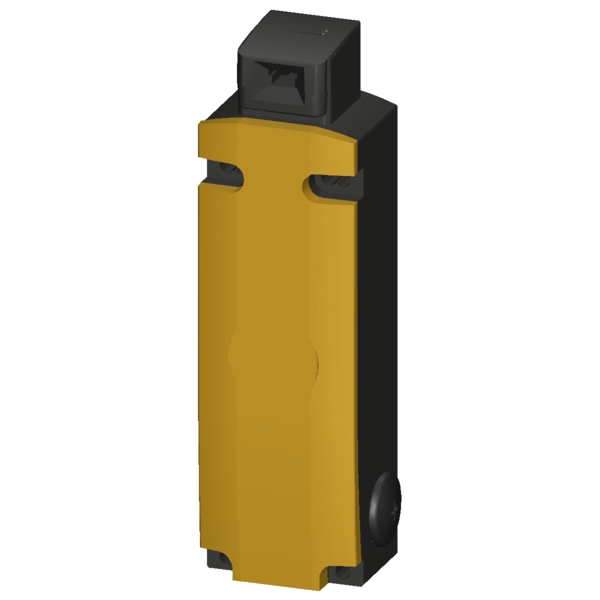

product brand nameSIRIUS
degree of pollutionclass 3
product designationMechanical safety switches
protection class IPIP66/IP67
width of the sensor54 mm
length of the sensor185 mm
service life maximum20 a
vibration resistance0.35 mm / 5g
design of the housingspecial design
design of the productwith separate actuator and with tumbler
design of the interfacewithout
coating of the enclosurecathodic dip coating
locking mechanism designmagnetic field lock (open-circuit principle)
product type designation3SE5
material of the enclosuremetal
Substance Prohibitance (Date)10/01/2011
supply voltage of magnet coil24 V
type of electrical connectionscrew terminal
insulation voltage rated value250 V

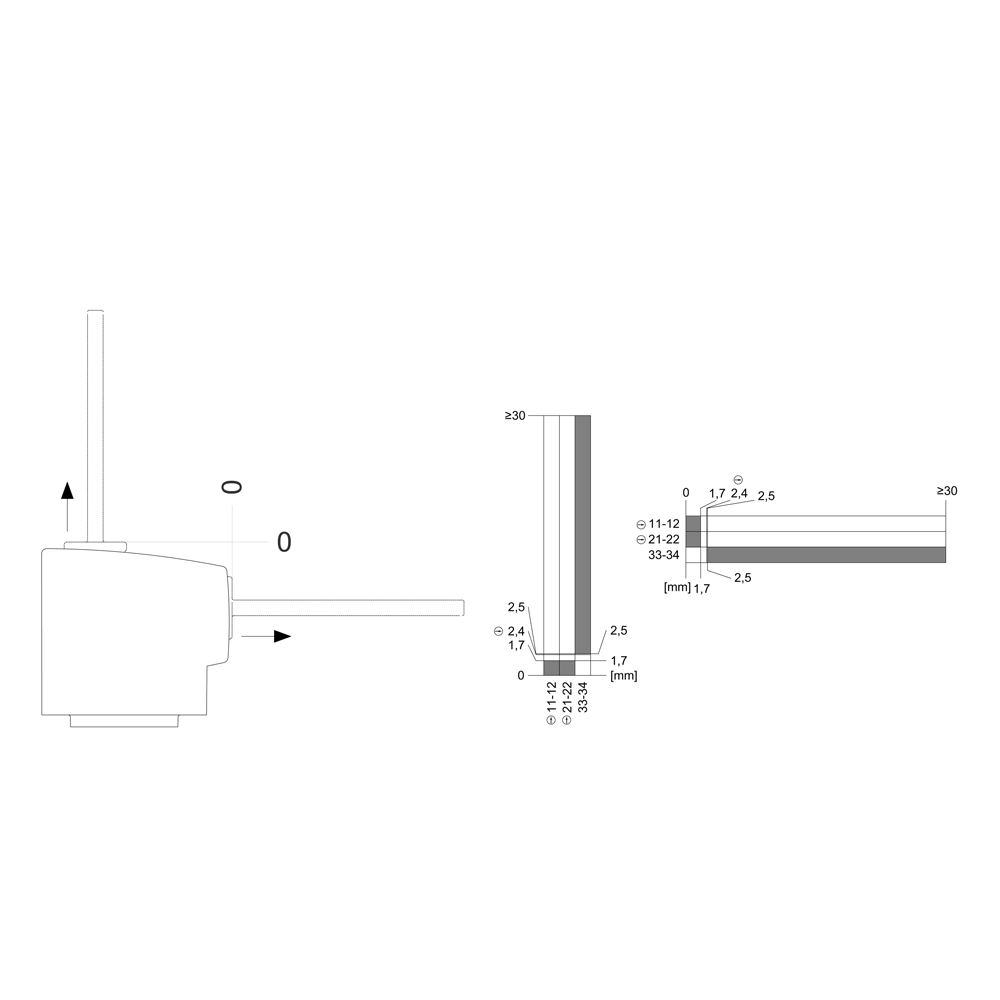

design of the actuating element5 directions of approach
design of the switching functionpositive opening
number of directions of actuation5
product function positive openingYes
suitability for use safety switchYes
device type according to ISO 13849-13
consumed active power of magnet coil3.5 W
surge voltage resistance rated value4 kV
explosion protection category for dustnone
reference code according to IEC 81346-2B
test wear-related service life necessaryYes
number of switching contacts safety-related4
design of the housing according to standardNo
material of the enclosure of the switch headmetal
continuous current of the DIAZED fuse link gG6 A; for a short-circuit current smaller than 400 A
product function suitable for safety functionYes
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
mechanical service life (operating cycles) typical1 000 000
minimum actuating force in directions of actuation30 N
B10 value with high demand rate according to SN 319201 000 000
manufacturer's article number of the optional actuators3SE5000-0AV01 standard actuator, 3SE5000-0AV02 actuator with vertical fixing, 3SE5000-0AV03 actuator with transverse fixing, 3SE5000-0AV04 radius actuator, approach from left, 3SE5000-0AV05 universal actuator, 3SE5000-0AV06 radius actuator, approach from right, 3SE5000-0AV07 Heavy Duty actuator, 3SE5000-0AW42 actuator with vertical fixing, stainless steel socket, 3SE5000-0AW43 actuator with transverse fixing, stainless steel socket, 3SE5000-0AW51 stainless steel actuator, 3SE5000-0AW52 stainless steel actuator with vertical fixing, 3SE5000-0AW53 stainless steel actuator with transverse fixing
design of the interface for safety-related communicationwithout
failure rate [FIT] with low demand rate according to SN 31920100 FIT
