repeat accuracy0.05 mm
active principlemechanical
cable entry type1x (M20 x 1.5)
fastening methodscrew fixing
mounting positionany
product brand nameSIRIUS
degree of pollutionclass 3

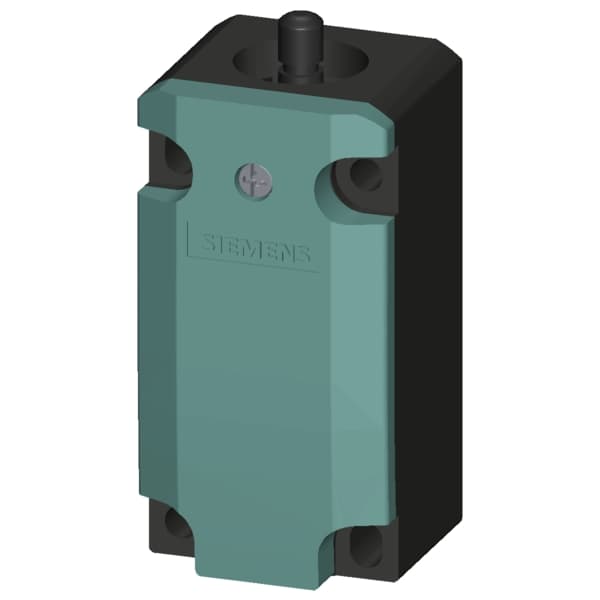

product designationHousing EKS, EN50041 for standard position switch + cover, turquoise
protection class IPIP66/IP67
width of the sensor40 mm
length of the sensor85.7 mm
service life maximum20 a
design of the housingblock, narrow
design of the interfacewithout
coating of the enclosurecathodic dip coating
product type designation3SE5
material of the enclosuremetal
Substance Prohibitance (Date)07/01/2006
insulation voltage rated value400 V
design of the actuating elementOther, without, empty enclosure
product function positive openingYes
device type according to ISO 13849-13
explosion protection category for dustnone
reference code according to IEC 81346-2U
test wear-related service life necessaryYes
design of the housing according to standardYes
product function suitable for safety functionYes
vibration resistance according to IEC 60068-2-60.35 mm/5g
B10 value with high demand rate according to SN 3192010 000 000
design of the interface for safety-related communicationwithout
failure rate [FIT] with low demand rate according to SN 31920100 FIT
