Aktif

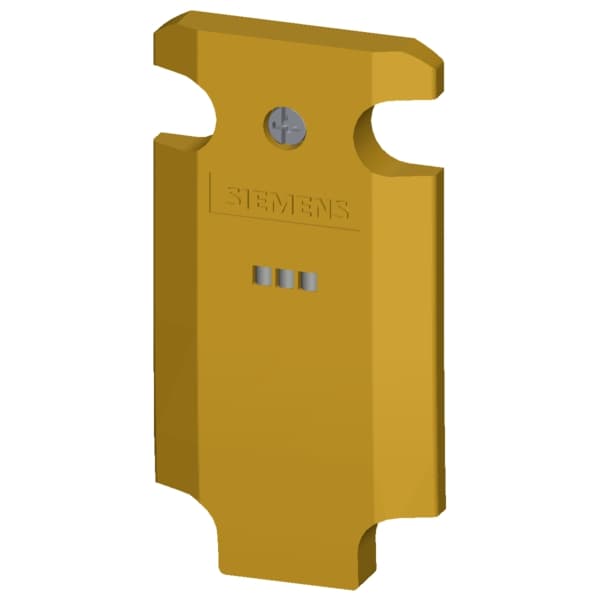

LED cover yellow for position switch metal 3SE51
Nomor Part: 3SE5110-3AA00-1AG0
Kategori
End switch
Siemens 3SE5110-3AA00-1AG0. LED cover yellow for position switch metal 3SE51, enclosure, according to EN 50041 2 LEDs, yellow/green, 230 V AC.
Spesifikasi
Mechanical
Net Weight0.067 kg
Other
fastening methodscrew fixing
mounting positionany
product brand nameSIRIUS
degree of pollutionclass 3
product designationcover with LEDs 230 V AC, for EN 50041 enclosures, metal, yellow
protection class IPIP66/IP67
width of the sensor40 mm
length of the sensor78 mm
design of the housingblock, narrow
design of the interfacewithout
coating of the enclosurecathodic dip coating
product type designation3SE5
Substance Prohibitance (Date)07/01/2006
design of the actuating elementOther, without, cover
explosion protection category for dustnone
vibration resistance according to IEC 60068-2-60.35 mm/5g
design of the interface for safety-related communicationwithout
type of voltage of the supply voltage of the optional LED displayAC
