Aktif
twist lever for position switch 3SE52 Metal lever
Nomor Part: 3SE5000-0AA25
Kategori
Actuator for position switch with separate actuator

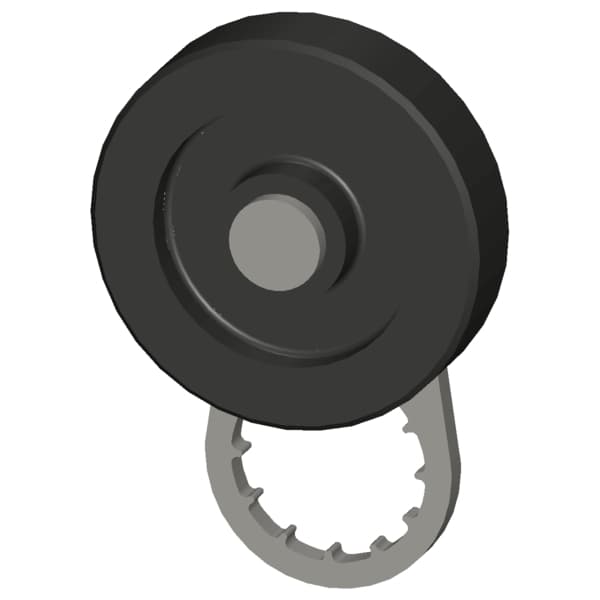

Siemens 3SE5000-0AA25. twist lever for position switch 3SE52 Metal lever, 21 mm long Plastic roller 30 mm.
Spesifikasi
Mechanical
Net Weight0.025 kg
Other
active principlemechanical
fastening methodscrew fixing
mounting positionany
product brand nameSIRIUS
product designationactuator for part-turn actuator
design of the interfacewithout
coating of the enclosureOther types
product type designation3SE5
shape of the switch headroller
Substance Prohibitance (Date)07/01/2006

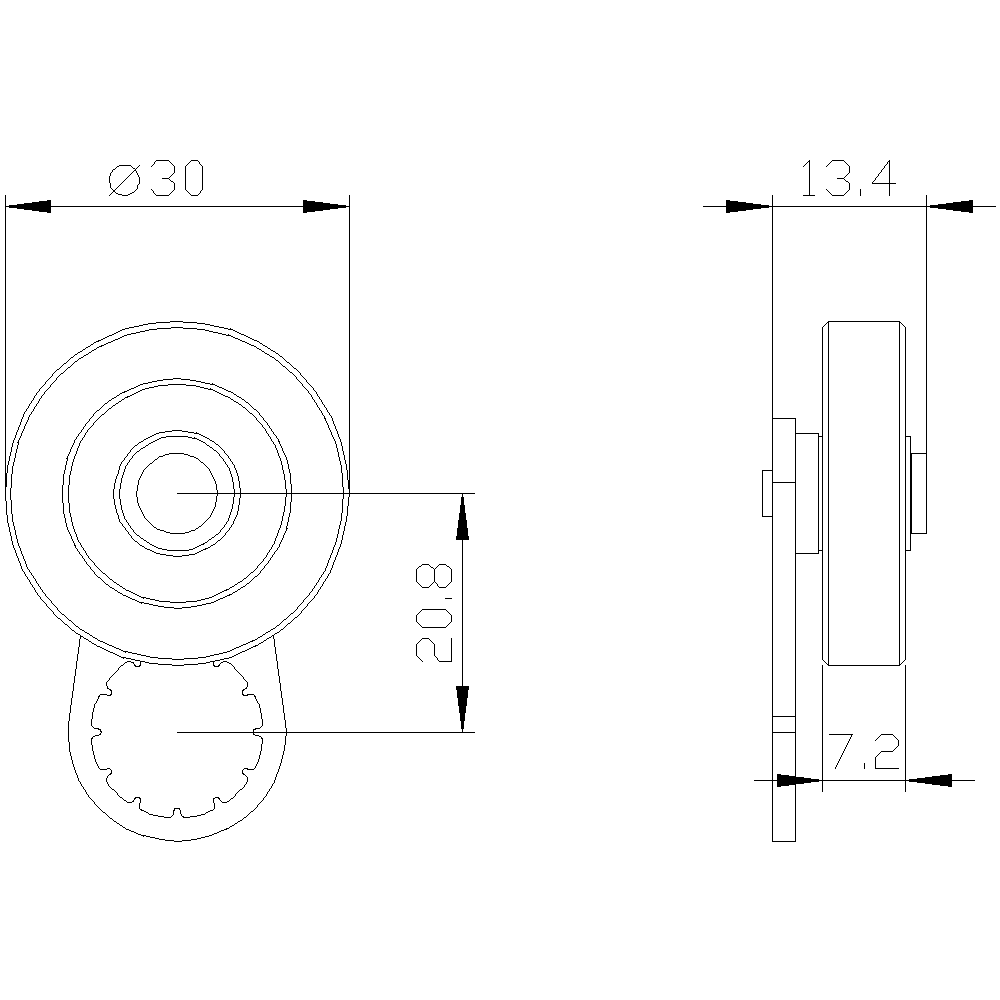

design of the actuating elementTwist lever, metal lever, 21 mm long, straight, plastic roller 30 mm
standard-compliant actuator headEN 50047, design A
outer diameter of the switch head30 mm
product function positive openingYes
explosion protection category for dustnone
reference code according to IEC 81346-2T
mechanical service life (operating cycles) typical15 000 000
design of the interface for safety-related communicationwithout
