momentary-contact foot switch
Nomor Part: 3SE2932-0AB20
Kategori
Foot switch

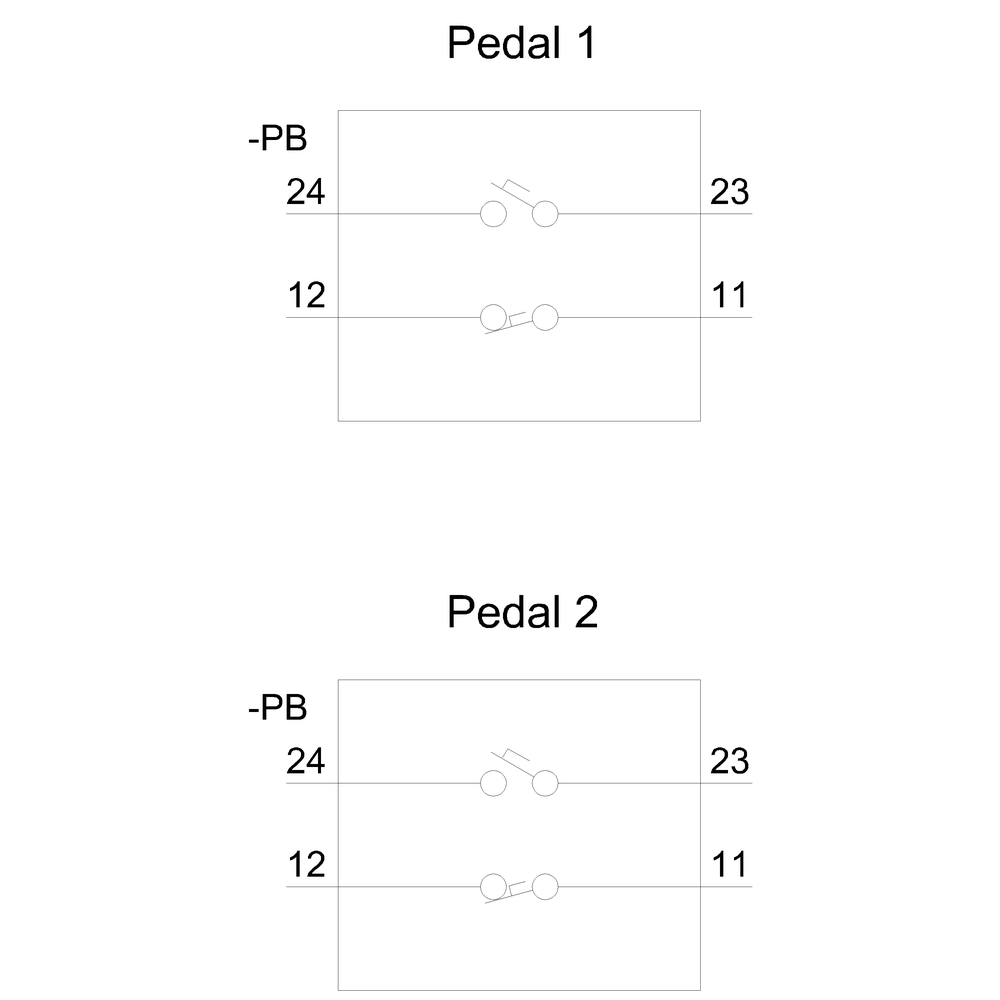

Siemens 3SE2932-0AB20. momentary-contact foot switch, 2-pedal without cover, without latching, metal enclosure IP65, cable entry M25 x 1.5 slow-action contacts 1 NO+1 NC per pedal.
Spesifikasi
Mechanical
Net Weight2.042 kg

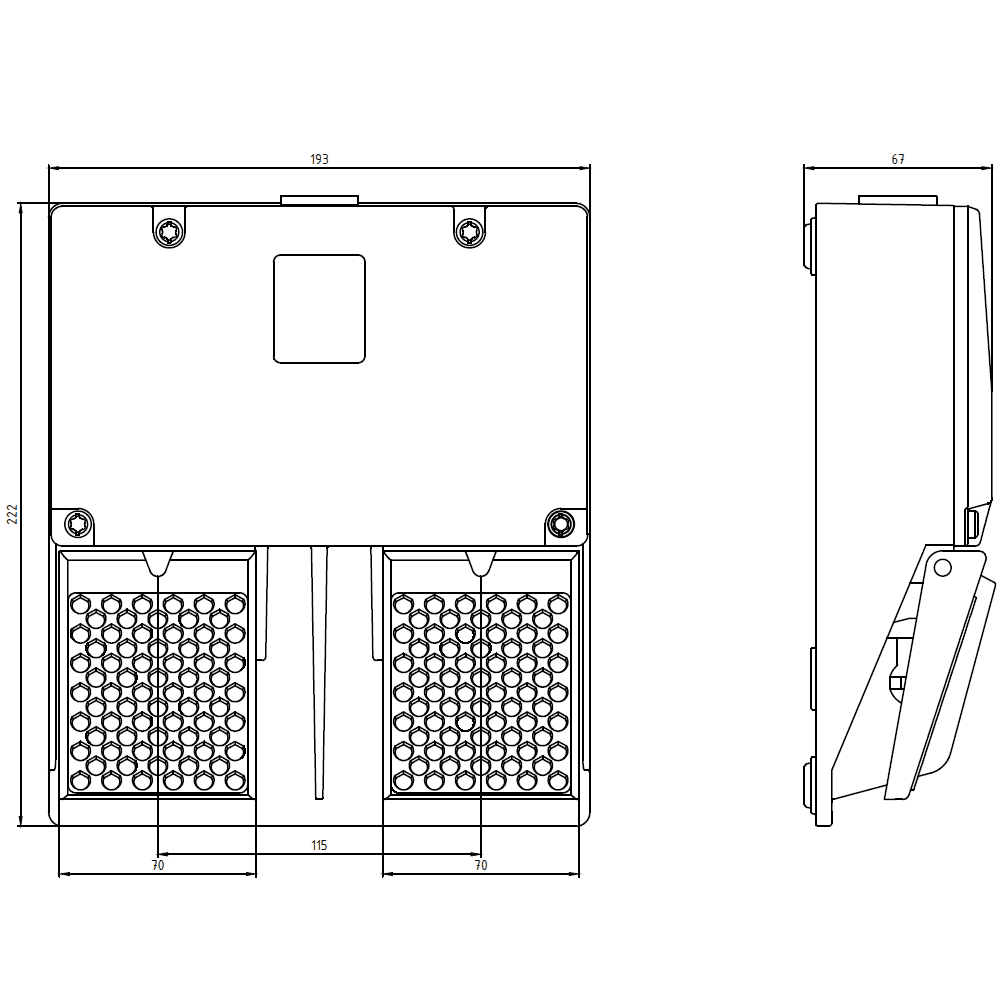

Dimensions
Width193 mm
Height68 mm
Depth221 mm
Other
cable entry typeM25 x 1.5
product brand nameSIRIUS
product designationmomentary-contact foot switch
protection class IPIP65
product type designation3SE29
material of the enclosuremetal
number of switching steps1
Substance Prohibitance (Date)07/01/2006
number of the actuation pedals2
suitability for use safety switchNo
ambient temperature during operation-25 ... +80 °C
reference code according to IEC 81346-2S
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
mechanical service life (operating cycles) typical1 000 000
minimum actuating force in directions of actuation15 N
B10 value with high demand rate according to SN 319201 000 000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
T1 value for proof test interval or service life according to IEC 6150820 a
