cable entry typeM20 x 1.5
product brand nameSIRIUS

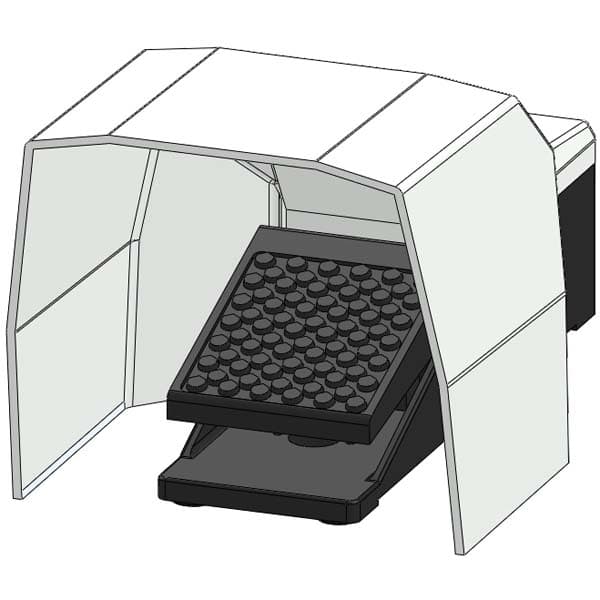

product designationmomentary-contact foot switch
protection class IPIP65
product type designation3SE29
material of the enclosuremetal
number of switching steps1
Substance Prohibitance (Date)07/01/2006
number of the actuation pedals1
suitability for use safety switchNo
ambient temperature during operation-25 ... +80 °C
reference code according to IEC 81346-2S

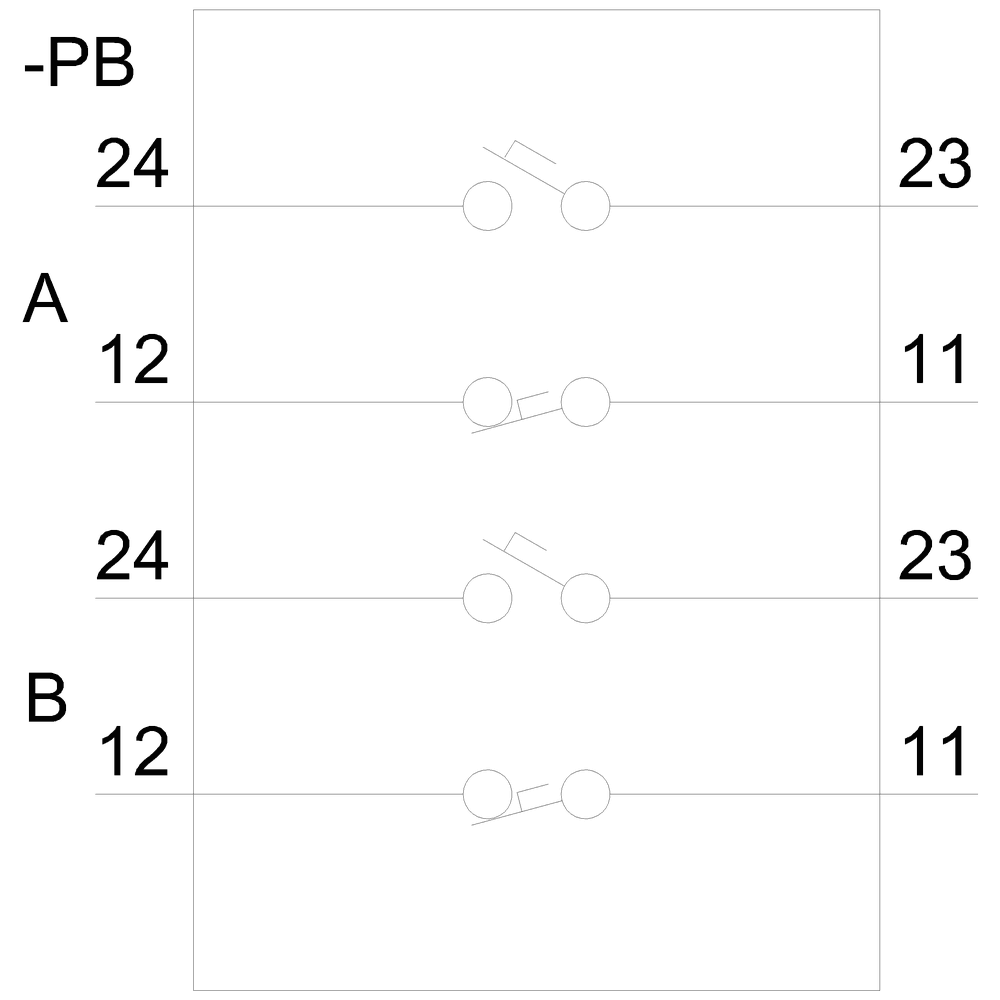

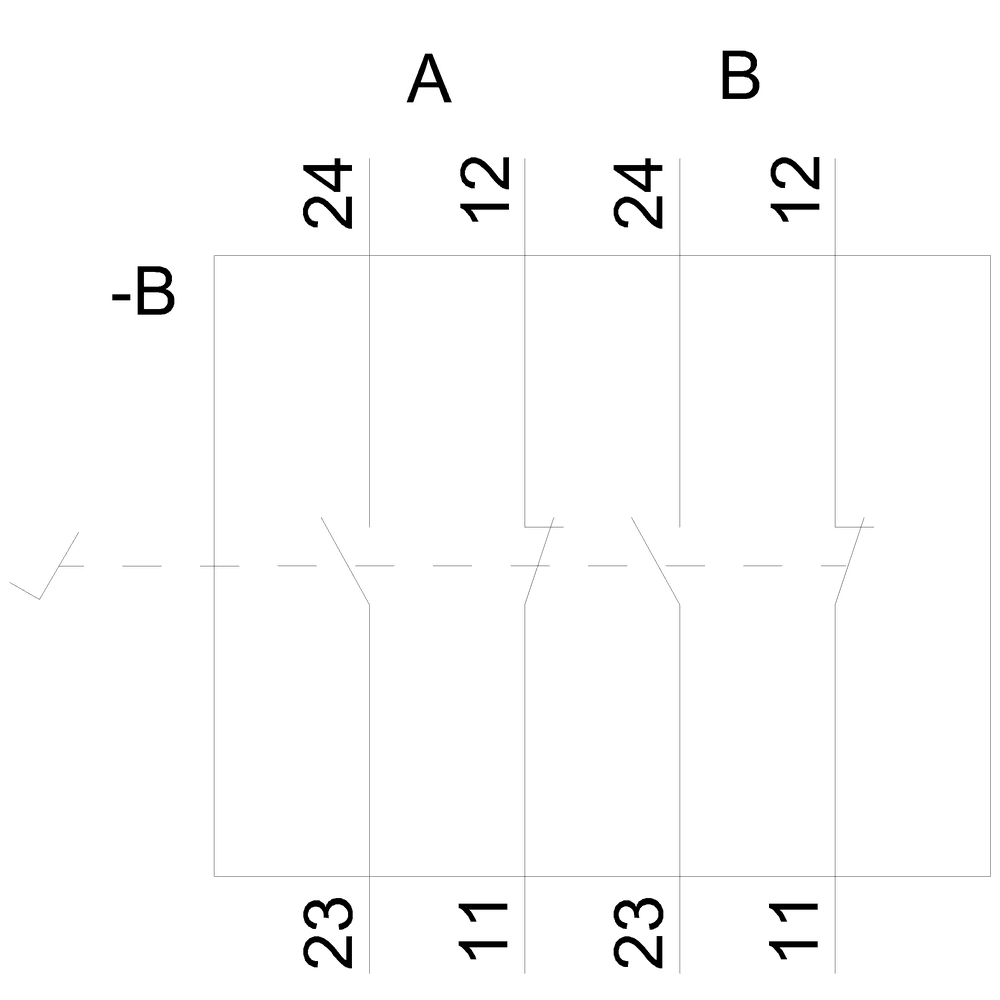

number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
mechanical service life (operating cycles) typical1 000 000
minimum actuating force in directions of actuation20 N
B10 value with high demand rate according to SN 319201 000 000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
T1 value for proof test interval or service life according to IEC 6150820 a
