thermal current2.5 A
active principlemechanical
cable entry type2x (M20 x 1.5)
fastening methodscrew fixing
shock resistance30g / 18 ms
circuit principleslow-action contacts
product brand nameSIRIUS

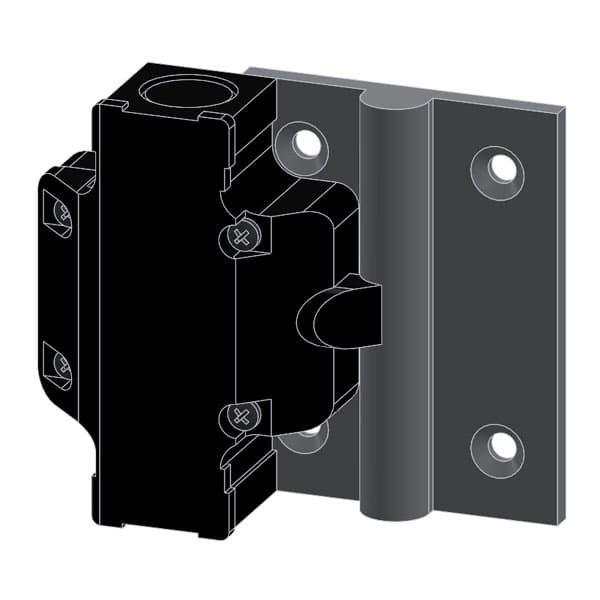

product designationsafety position switch
protection class IPIP65

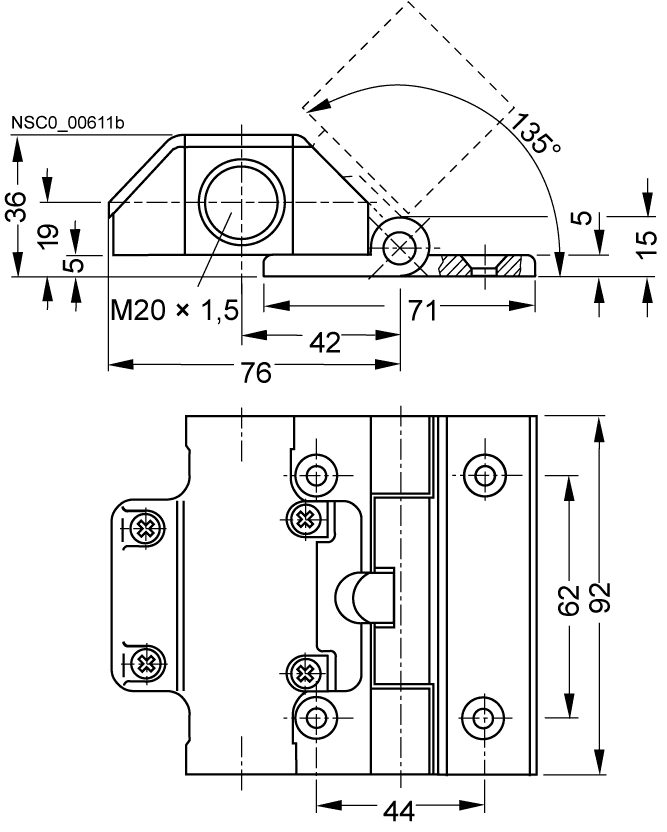

width of the sensor111.5 mm
length of the sensor92 mm
vibration resistance10 ... 200 Hz: 20g
design of the housingspecial design
design of the interfacewithout
coating of the enclosurenone
material of the enclosureglass fiber reinforced thermoplast
Substance Prohibitance (Date)07/01/2006
type of electrical connectionscrew terminal
insulation voltage rated value250 V
design of the actuating elementrotary actuator
design of the switching contactmechanical

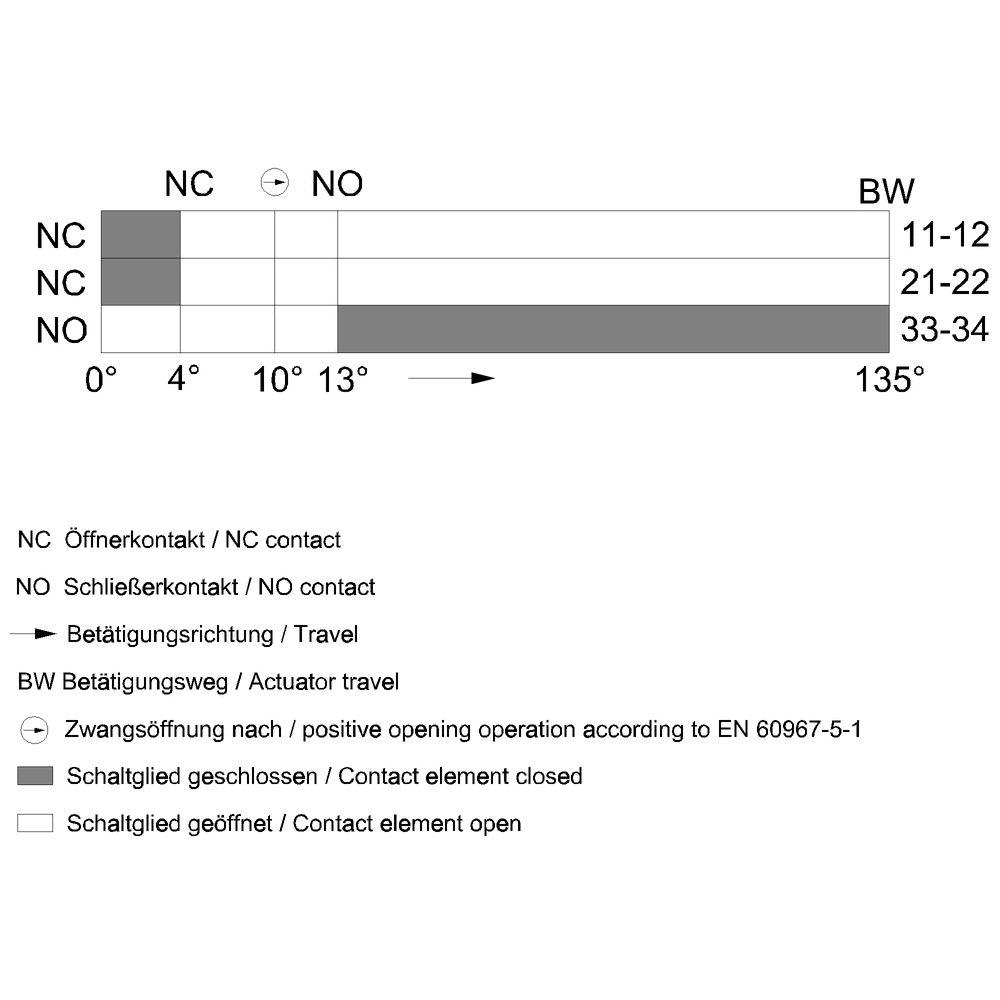

design of the switching functionpositive opening
product function positive openingYes
suitability for use safety switchYes
surge voltage resistance rated value4 kV
explosion protection category for dustnone
reference code according to IEC 81346-2B

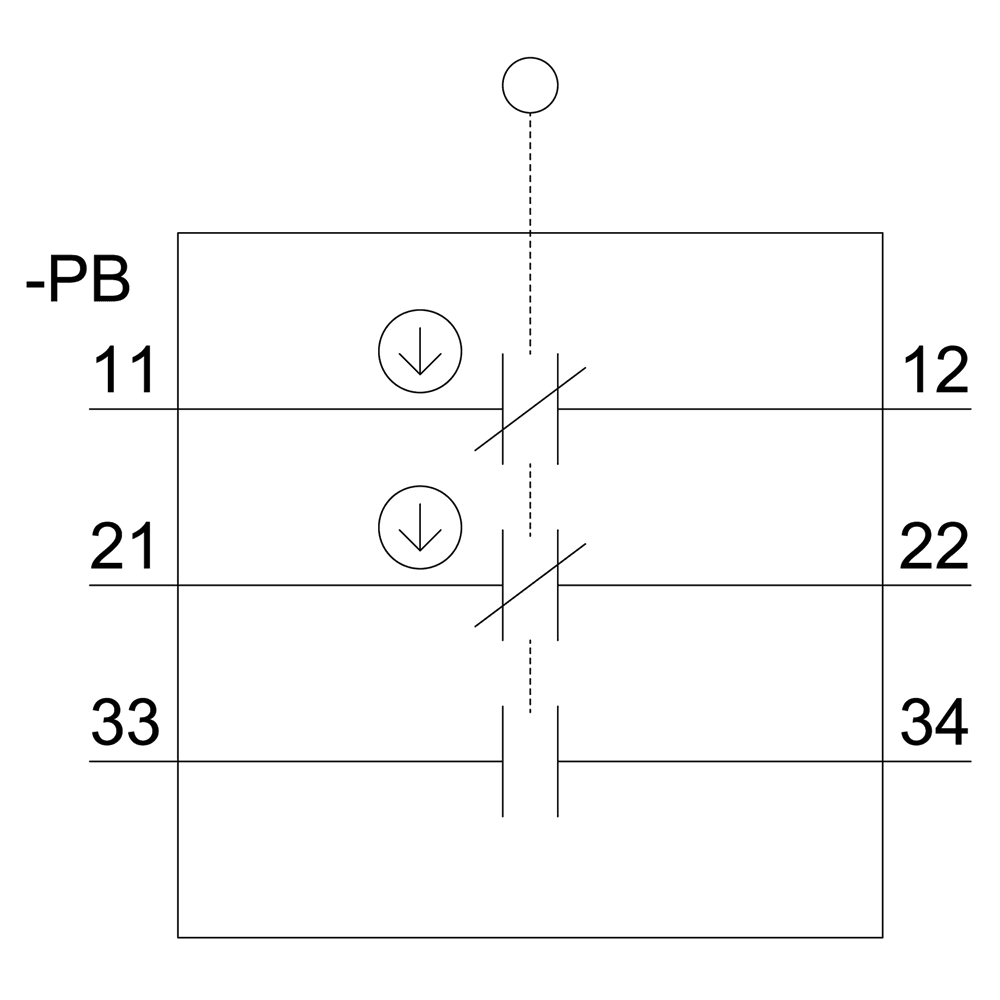

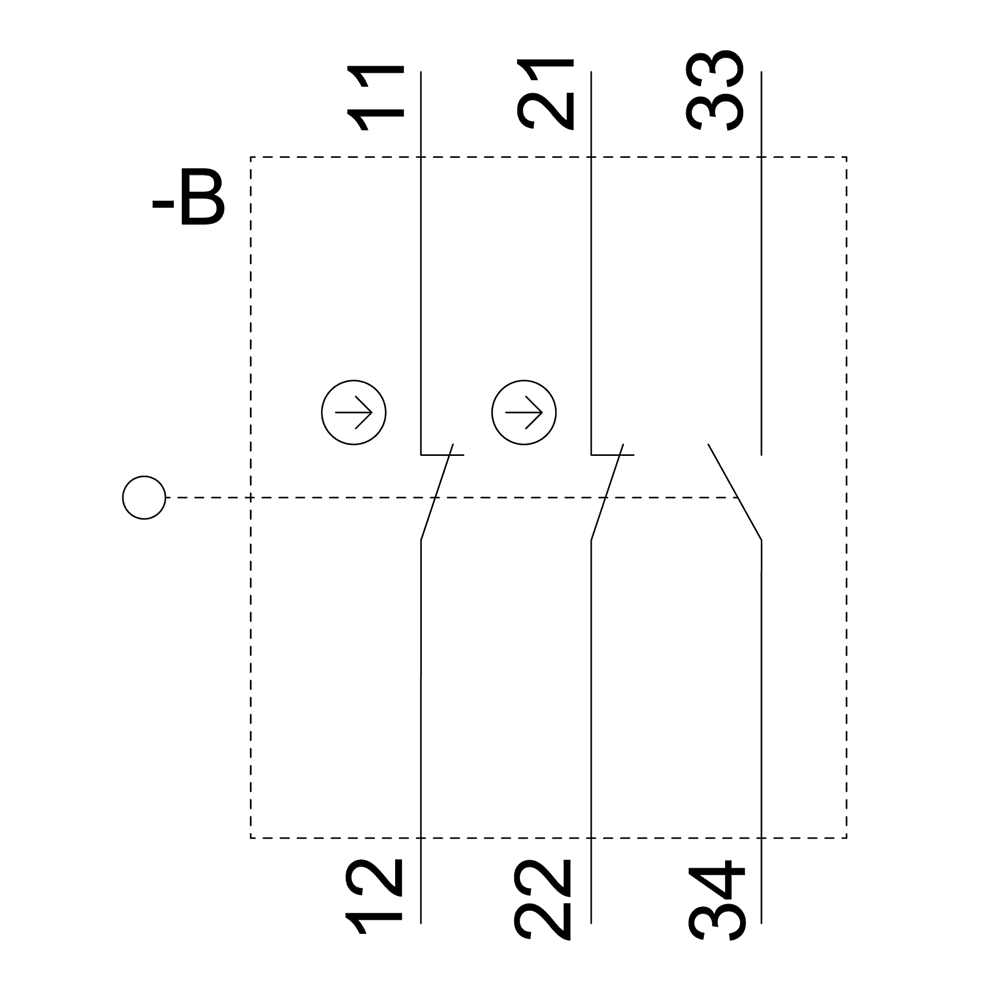

number of switching contacts safety-related2
design of the housing according to standardNo
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
mechanical service life (operating cycles) typical1 000 000
design of the interface for safety-related communicationwithout
