Pushbutton
Nomor Part: 3SB2000-0AD01
Kategori
Front element for push button

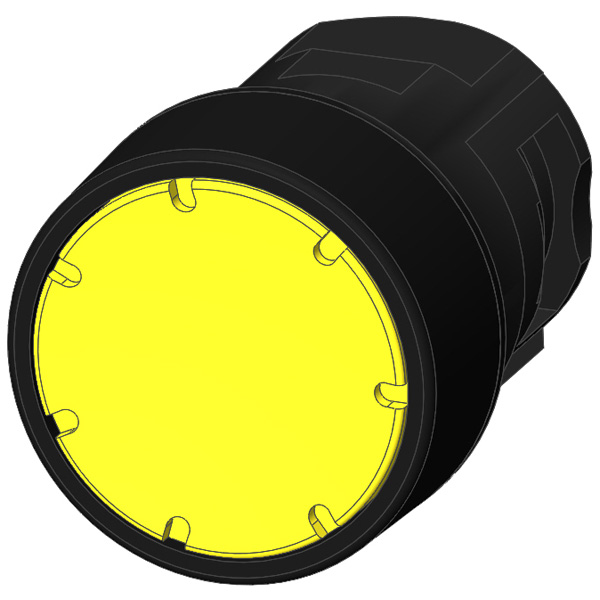

Siemens 3SB2000-0AD01. Pushbutton, 16 mm, round, plastic, yellow, pushbutton, flat.
Spesifikasi
Mechanical
Net Weight0.008 kg
Other
mounting height8 mm
fastening methodfront plate mounting
mounting diameter16 mm
installation depth50 mm
installation width19 mm
product brand nameSIRIUS
product designationPushbuttons
protection class IPIP65
design of the productSingle device round
material of the holderPlastic
color of the front ringblack
design of the front ringStandard
number of command points1
product type designation3SB2
type of unlocking devicewithout
material of the front ringplastic
operating frequency maximum1 000 1/h
Substance Prohibitance (Date)07/01/2006
product component front ringYes
number of switching positions2
color of the actuating elementyellow
shape of the actuating elementFlat pushbutton
design of the actuating elementPushbutton
material of the actuating elementplastic
shape of the installation openinground
reference code according to IEC 81346-2S
outer diameter of the actuating element19 mm
product extension optional light sourceNo
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5g
principle of operation of the actuating elementmomentary contact type
mechanical service life (operating cycles) typical10 000 000
tightening torque of the screws in the bracket maximum0.4 N·m
environmental category during operation according to IEC 607213K6
