Aktif

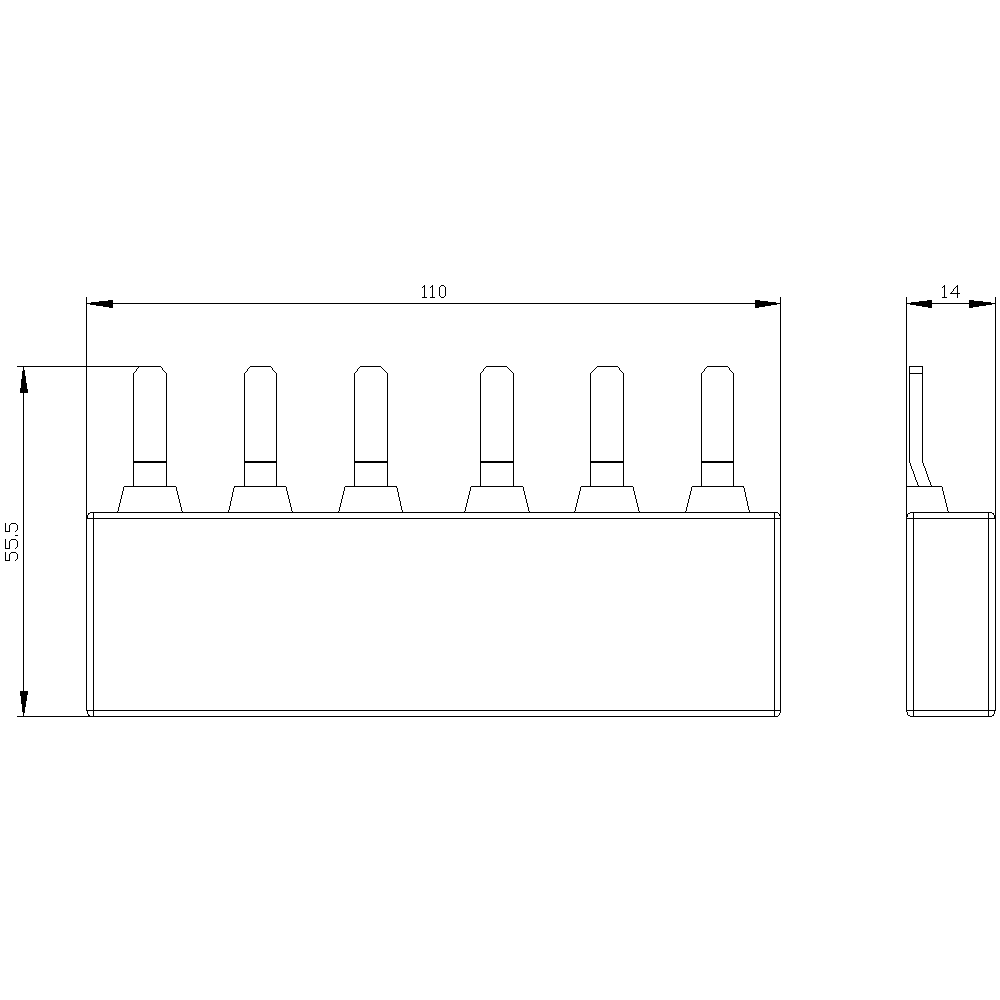

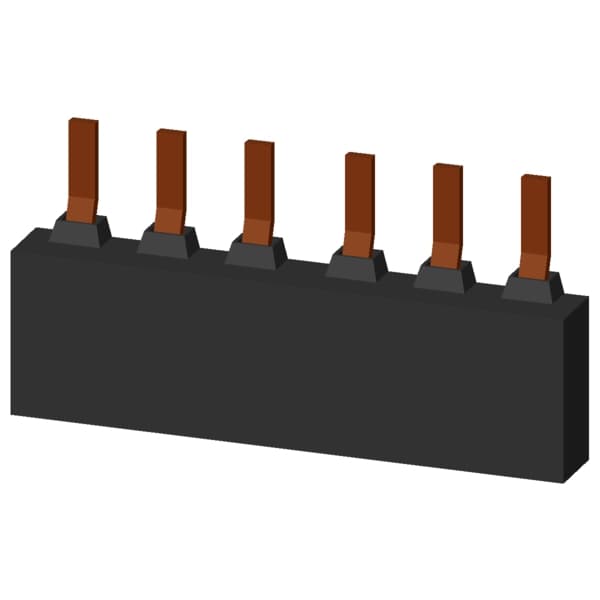

3-phase busbar for 2 circuit breakers size S2 modular spacing 55 mm
Nomor Part: 3RV1935-1A
Merek
Kategori
Busbar adapter
Siemens 3RV1935-1A. 3-phase busbar for 2 circuit breakers size S2 modular spacing 55 mm.
Spesifikasi
Mechanical
Net Weight113 g
Other
thermal current108 A
product categoryInfeed systems
product brand nameSIRIUS
product designation3-phase busbar
suitability for usecircuit-breakers 3RV2
product type designation3RV19
size of the circuit-breakerS2
Substance Prohibitance (Date)07/01/2006
operational current rated value108 A
operating voltage at AC rated value690 V
number of poles for main current circuit3
