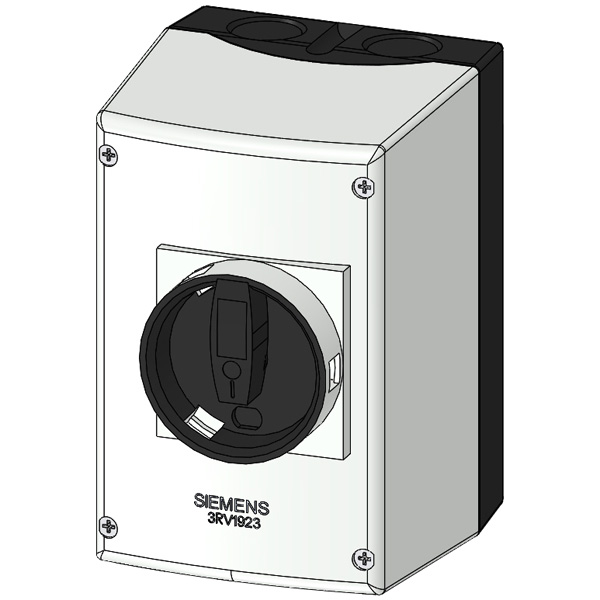

Molded-plastic enclosure for surface mounting Degree of protection IP55 with N and PE terminal Can be locked in O position 72 mm with metric cable gland No UL/CSA approval
Nomor Part: 3RV1923-1DA00
Kategori
Empty enclosure for switchgear
Siemens 3RV1923-1DA00. Molded-plastic enclosure for surface mounting Degree of protection IP55 with N and PE terminal Can be locked in O position 72 mm with metric cable gland No UL/CSA approval.
Spesifikasi
Mechanical
Net Weight0.338 kg
Dimensions
Width105 mm
Height155 mm
Depth126 mm
Other
product categoryEnclosure
product brand nameSIRIUS
product designationMolded-plastic enclosure for surface mounting
design of the productAssembly
product type designation3RV19
material of the enclosureplastic
Substance Prohibitance (Date)07/01/2006
protection class IP of the enclosureIP55
product function EMERGENCY OFF functionNo
