trip classCLASS 10

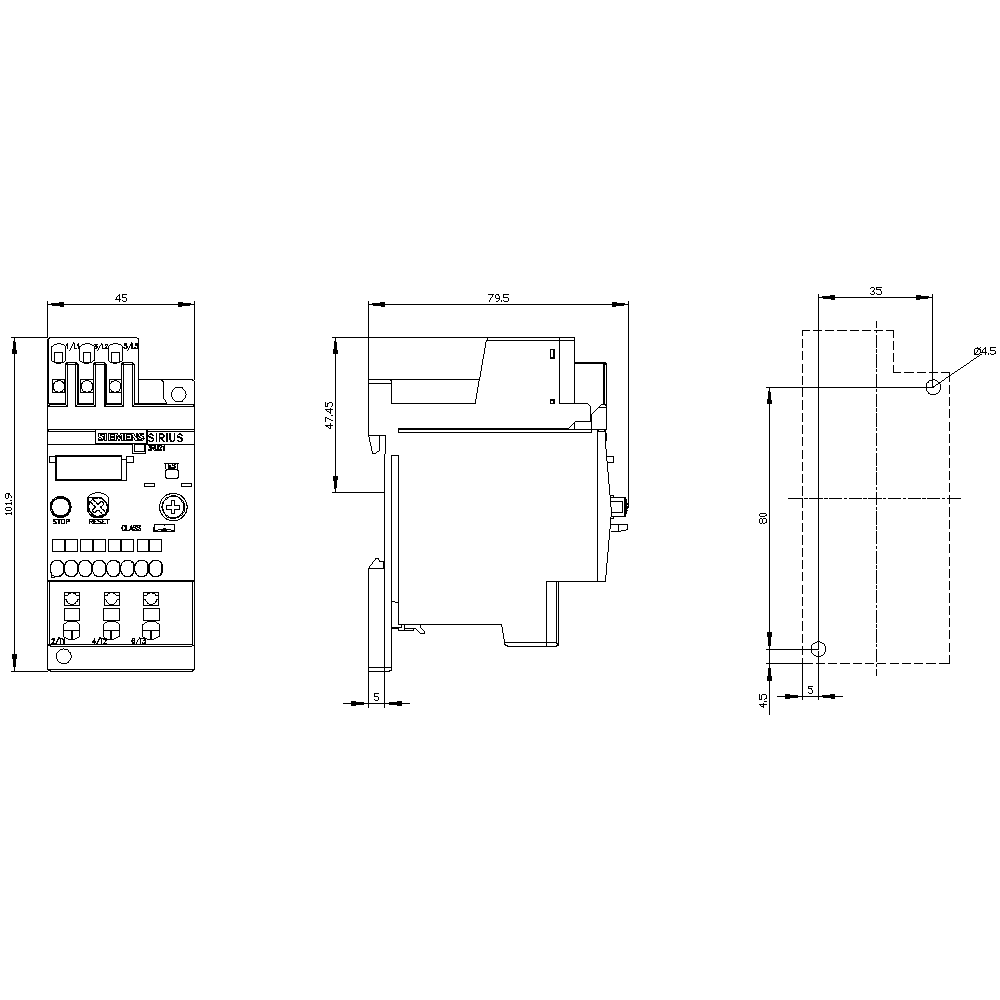

fastening methodstand-alone installation
mounting positionfor mounting on contactors: with a vertical mounting plane +/-135° rotatable & +/- 22.5° tiltable, stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual
— solid or stranded2x (0.5 ... 2.5 mm²)

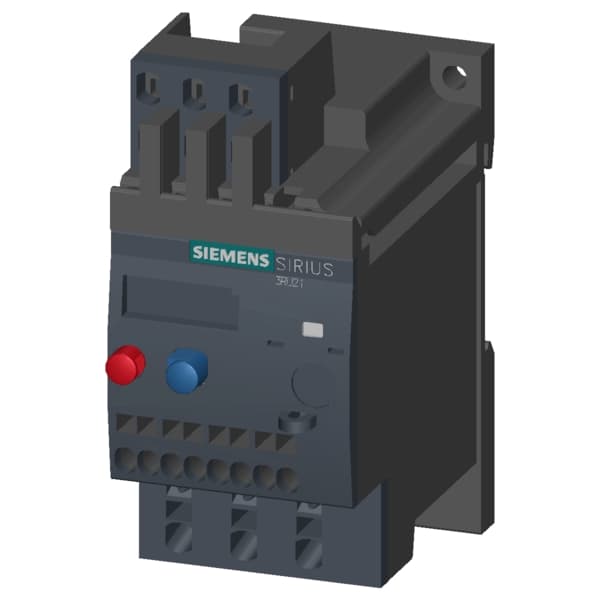

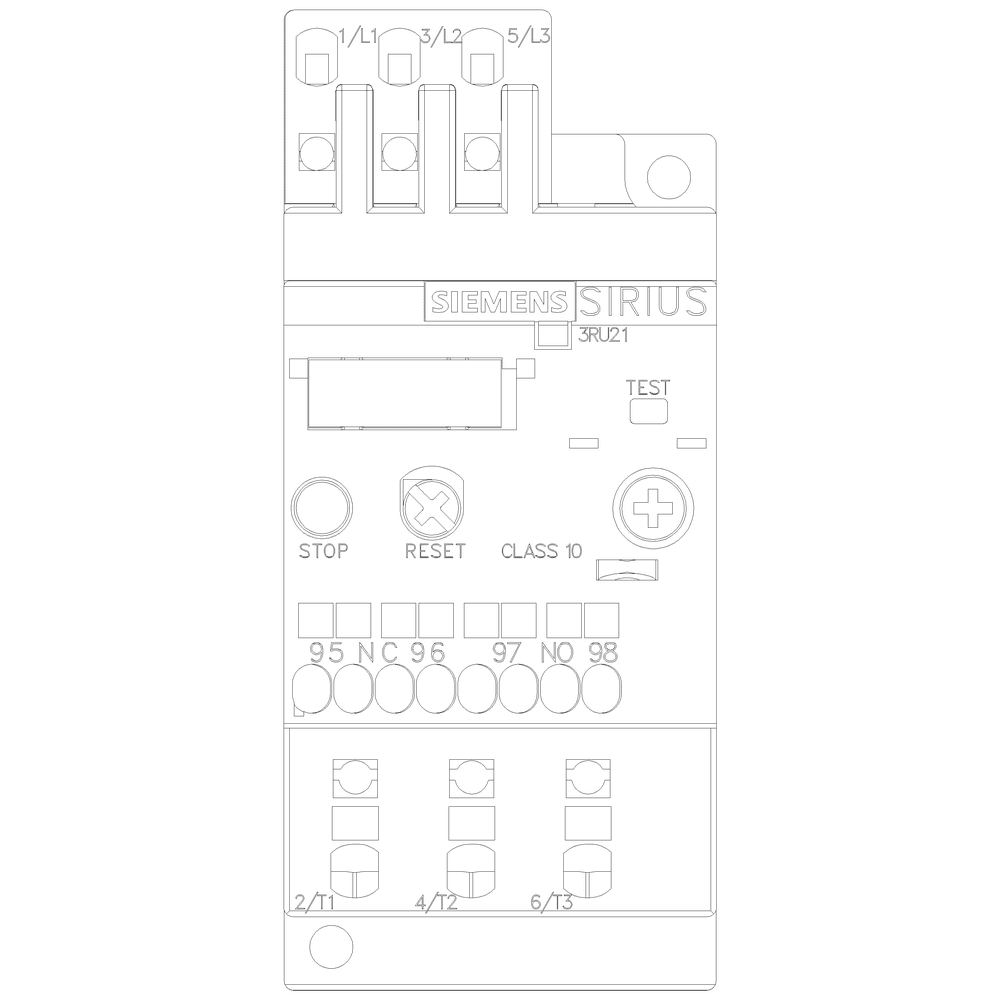

product brand nameSIRIUS
product designationthermal overload relay
— at 400 V rated value0.06 kW
— at 500 V rated value0.09 kW
— at 690 V rated value0.12 kW
size of overload relayS00
product type designation3RU2
temperature compensation-40 ... +60 °C
MTTF with high demand rate2 280 a
design of screwdriver shaftDiameter 3 mm
size of the screwdriver tip3 x 0,5 mm
Substance Prohibitance (Date)10/01/2009
design of the auxiliary switchintegrated
design of the overload releasethermal
operating frequency rated value50 ... 60 Hz
operational current rated value0.25 A
relative humidity during operation10 ... 95 %
display version for switching statusSlide switch
surge voltage resistance rated value6 kV
reference code according to IEC 81346-2F

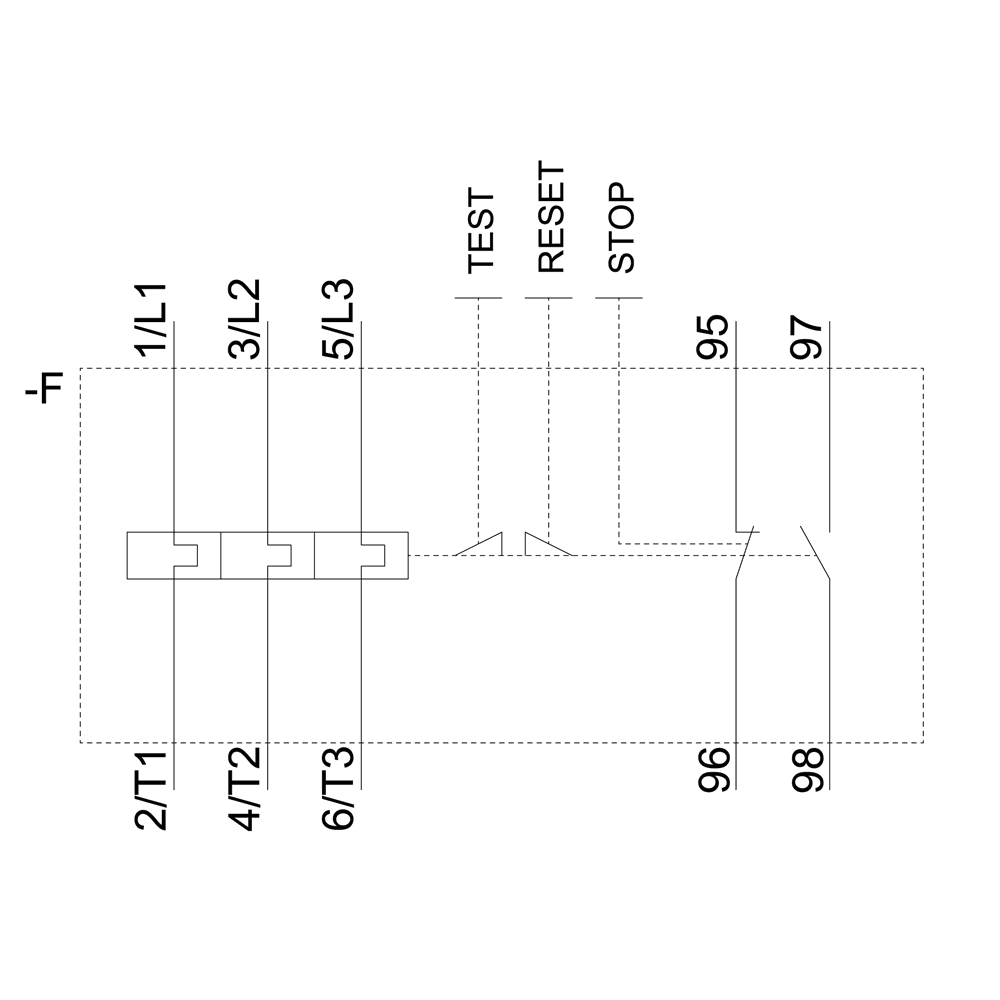

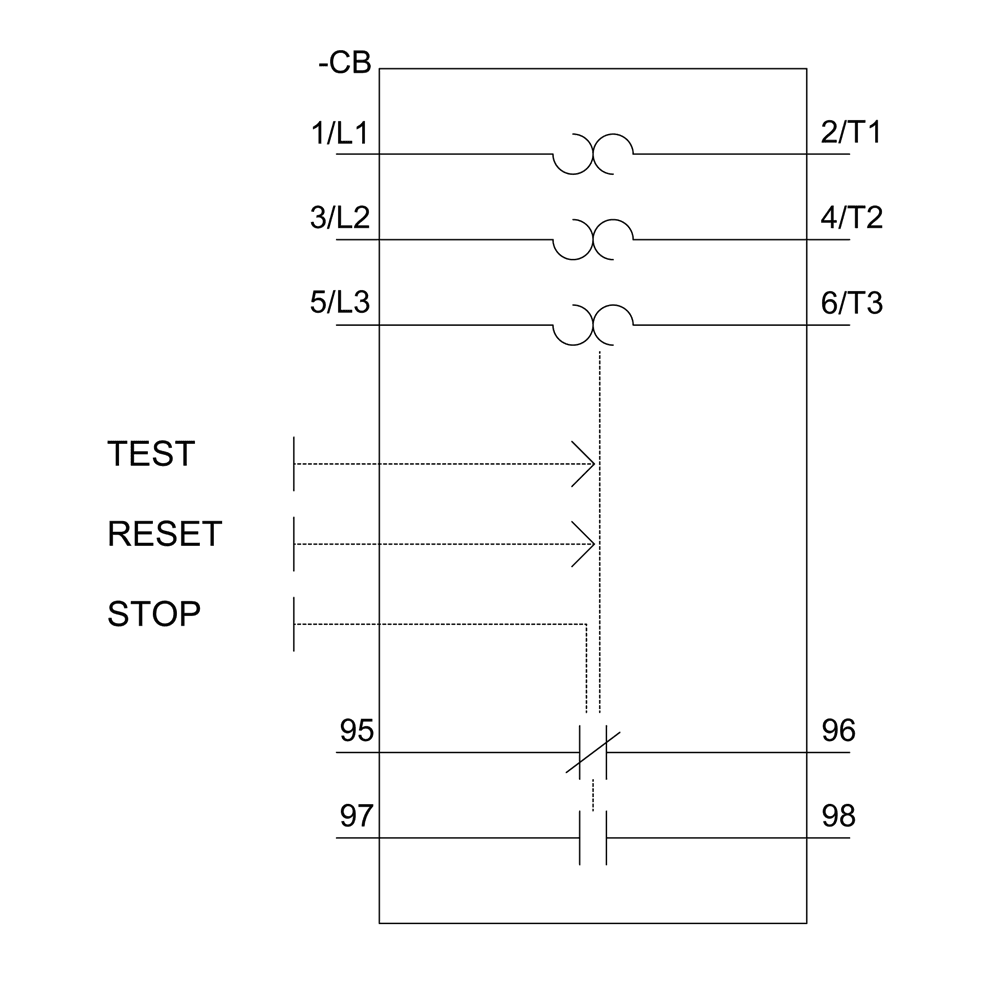

number of poles for main current circuit3
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
shock resistance according to IEC 60068-2-278g / 11 ms
— finely stranded without core end processing2x (0.5 ... 1.5 mm²)
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
operational current at AC-3e at 400 V rated value0.25 A
size of contactor can be combined company-specificS00
contact rating of auxiliary contacts according to ULB600 / R300
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
failure rate [FIT] with low demand rate according to SN 3192050 FIT
arrangement of electrical connectors for main current circuitTop and bottom
insulation voltage with degree of pollution 3 at AC rated value690 V
product component removable terminal for auxiliary and control circuitNo
power loss [W] for rated value of the current at AC in hot operating state4.8 W
adjustable current response value current of the current-dependent overload release0.18 ... 0.25 A
