— solid2x (0.5 ... 2.5 mm²), 1x 4 mm²
fastening methodclip-on
product categoryLatching blocks
mounting positionany
size of contactorS0
product brand nameSIRIUS

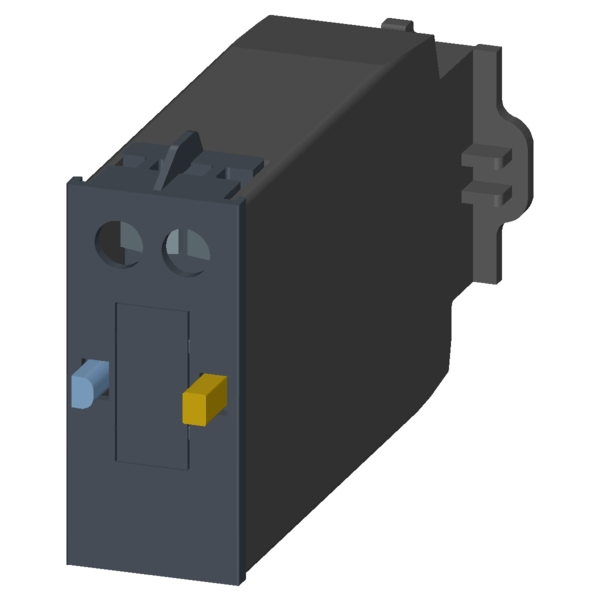

product designationmechanical latch
product type designation3RT29
certificate of suitabilityCE / UL / CSA
Substance Prohibitance (Date)10/01/2009
protection class IP on the frontIP20
surge voltage resistance rated value4 kV
— finely stranded with core end processing2x (0.5 ... 2.5 mm²), 1x 2.5 mm²
power loss [W] of magnet coil at DC typical4 W
control supply voltage 1 at DC rated value110 V
power loss [V∙A] of magnet coil at AC typical4 VA
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
type of voltage of the control supply voltageAC/DC
insulation voltage with degree of pollution 3 at AC rated value300 V
type of electrical connection for auxiliary and control circuitscrew-type terminals
AWG number as coded connectable conductor cross section for auxiliary contacts14 ... 12
