power contactor
Nomor Part: 3RT1054-1NP36-3PA0
Kategori
Power contactor, AC switching
Siemens 3RT1054-1NP36-3PA0. power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 200-277 V PLC input 24 V DC 3-pole, auxiliary contacts 2 NO + 2 NC permanently mounted drive: electronic main circuit: box terminal control and auxiliary circuit: screw terminal.
Spesifikasi
Mechanical
Net Weight3.3 kg

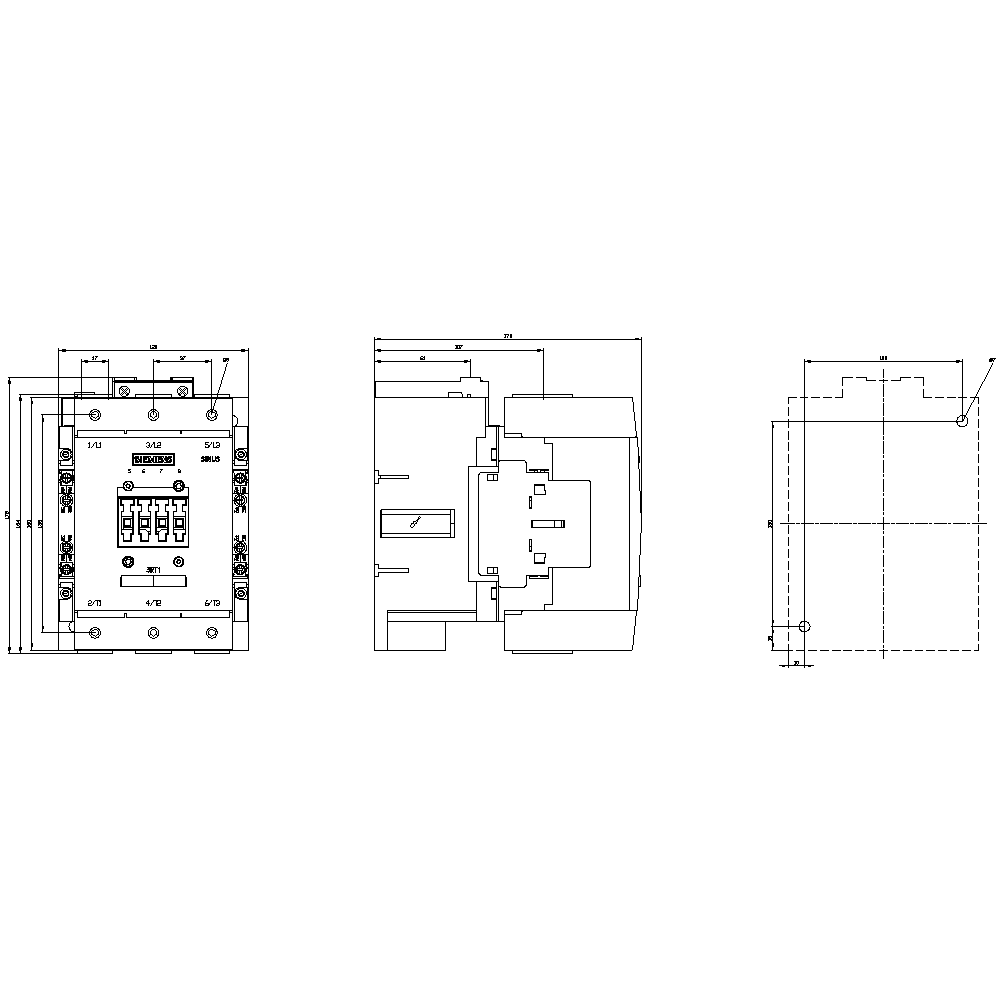

Dimensions
Width120 mm
Height172 mm
Depth170 mm
Other
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
— maximum1 000 1/h
— upwards10 mm
— at 50 Hz4.8 VA
— at 60 Hz4.8 VA
— forwards20 mm
— strandedmax. 1x 50, 1x 70 mm²
— downwards10 mm
arcing time10 ... 15 ms
— at the side10 mm
fastening methodscrew fixing
mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
size of contactorS6
— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
product brand nameSIRIUS
product designationPower contactor
— at 24 V rated value160 A
— at 60 V rated value160 A
service life maximum20 a
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 230 V rated value25 hp
— at 400 V rated value55 kW
— at 440 V rated value1.4 A
— at 500 V rated value75 kW
— at 600 V rated value0.75 A
— at 690 V rated value110 kW
— at 1000 V rated value75 kW
— at 200/208 V rated value40 hp
— at 220/230 V rated value50 hp
— at 460/480 V rated value100 hp
— at 575/600 V rated value125 hp
product type designation3RT1
relative humidity minimum10 %
Substance Prohibitance (Date)05/01/2012
design of the auxiliary switchlateral, permanently connected
design of the surge suppressorwith varistor
closing power of magnet coil at DC320 W
holding power of magnet coil at DC2.8 W
device type according to ISO 13849-13
operational current at AC-12 maximum10 A
fastening method side-by-side mountingYes
— with type of coordination 1 requiredgG: 355 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 250 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 250 A (415 V, 50 kA)
reference code according to IEC 81346-2Q
number of NC contacts for main contacts0
number of NO contacts for main contacts3
test wear-related service life necessaryYes
voltage at PLC-control input rated value24 V
control supply voltage at DC rated value200 ... 277 V
number of poles for main current circuit3
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
safety device type according to IEC 61508-2Type A
— finely stranded without core end processingmax. 1x 50, 1x 70 mm²
type of voltage of the control supply voltageAC/DC
suitability for use safety-related switching OFFYes; safety-related disconnection via A1 A2
type of PLC-control input according to IEC 60947-1Type 2
control version of the switch operating mechanismPLC-IN or Standard A1 - A2 (adjustable)
overdimensioning according to ISO 13849-2 necessaryYes
— up to 230 V for current peak value n=20 rated value115 A
— up to 230 V for current peak value n=30 rated value98 A
— up to 400 V for current peak value n=20 rated value115 A
— up to 400 V for current peak value n=30 rated value98 A
— up to 500 V for current peak value n=20 rated value115 A
— up to 500 V for current peak value n=30 rated value98 A
— up to 690 V for current peak value n=20 rated value115 A
— up to 690 V for current peak value n=30 rated value98 A
type of calculation of power loss depending on polequadratic
— up to 1000 V for current peak value n=20 rated value53 A
— up to 1000 V for current peak value n=30 rated value53 A
— up to 690 V at ambient temperature 40 °C rated value160 A
— up to 690 V at ambient temperature 60 °C rated value140 A
contact rating of auxiliary contacts according to ULA600 / Q600
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
— up to 1000 V at ambient temperature 40 °C rated value80 A
— up to 1000 V at ambient temperature 60 °C rated value80 A
B10 value with high demand rate according to SN 319201 000 000
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
operating range factor of the voltage at PLC-control input0.8 ... 1.1
failure rate [FIT] with low demand rate according to SN 31920100 FIT
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
minimum cross-section in main circuit at maximum AC-1 rated value70 mm²
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact2
consumed current at PLC-control input according to IEC 60947-1 maximum20 mA
AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 14
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V
