Aktif
power contactor
Nomor Part: 3RT1054-1AU36
Kategori
Power contactor, AC switching

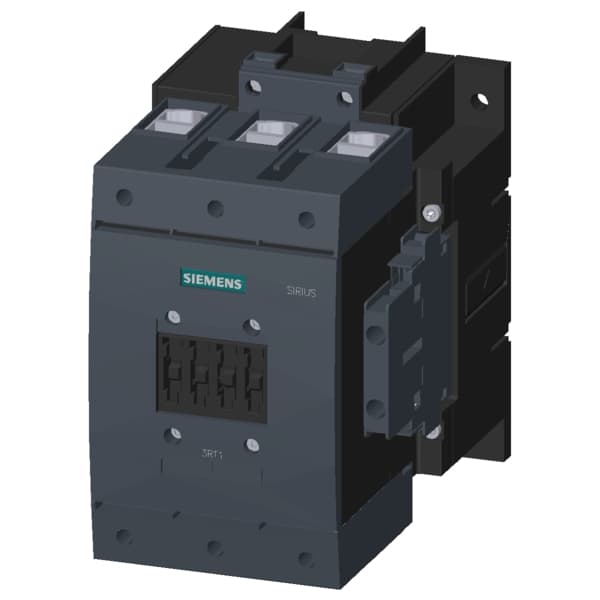

Siemens 3RT1054-1AU36. power contactor, AC-3e/AC-3 115 A, 55 kW / 400 V, AC (50-60 Hz) / DC Uc: 240-277 V 3-pole, auxiliary contacts 2 NO + 2 NC drive: conventional main circuit: box terminal control and auxiliary circuit: screw terminal.
Spesifikasi
Mechanical
Net Weight3.641 kg

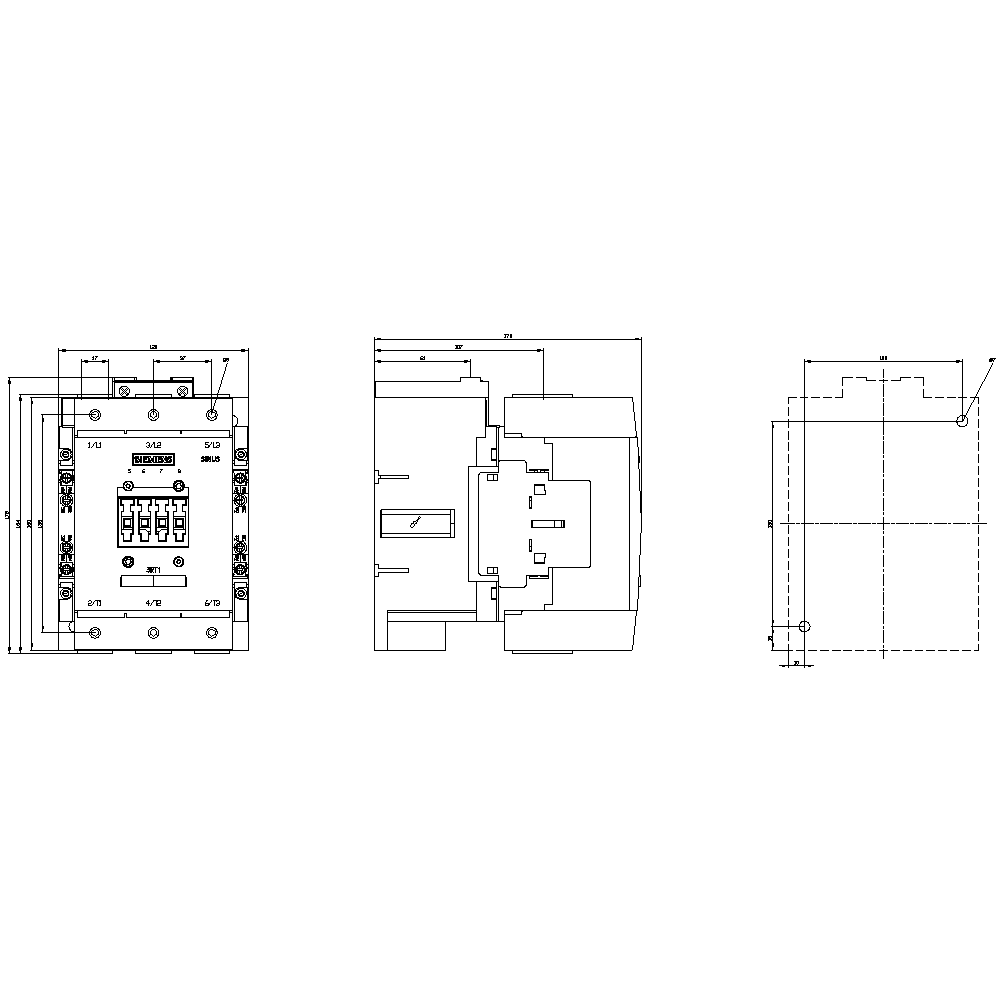

Dimensions
Width120 mm
Height172 mm
Depth170 mm
Other
— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), max. 2x (0.75 ... 4 mm²)
— maximum1 000 1/h
— upwards10 mm
— at 50 Hz5.8 VA
— at 60 Hz5.8 VA
— forwards20 mm
— strandedmax. 1x 50, 1x 70 mm²
— downwards10 mm
arcing time10 ... 15 ms
— at the side10 mm
fastening methodscrew fixing
mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back
size of contactorS6
— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), max. 2x (0,75 ... 4 mm²)
product brand nameSIRIUS
product designationPower contactor
— at 24 V rated value160 A
— at 60 V rated value160 A
service life maximum20 a
— at 110 V rated value160 A
— at 220 V rated value160 A
— at 230 V rated value25 hp
— at 400 V rated value55 kW
— at 440 V rated value1.4 A
— at 500 V rated value75 kW
— at 600 V rated value0.75 A
— at 690 V rated value110 kW
— at 1000 V rated value75 kW
— at 200/208 V rated value40 hp
— at 220/230 V rated value50 hp
— at 460/480 V rated value100 hp
— at 575/600 V rated value125 hp
product type designation3RT1
relative humidity minimum10 %
Substance Prohibitance (Date)05/01/2012

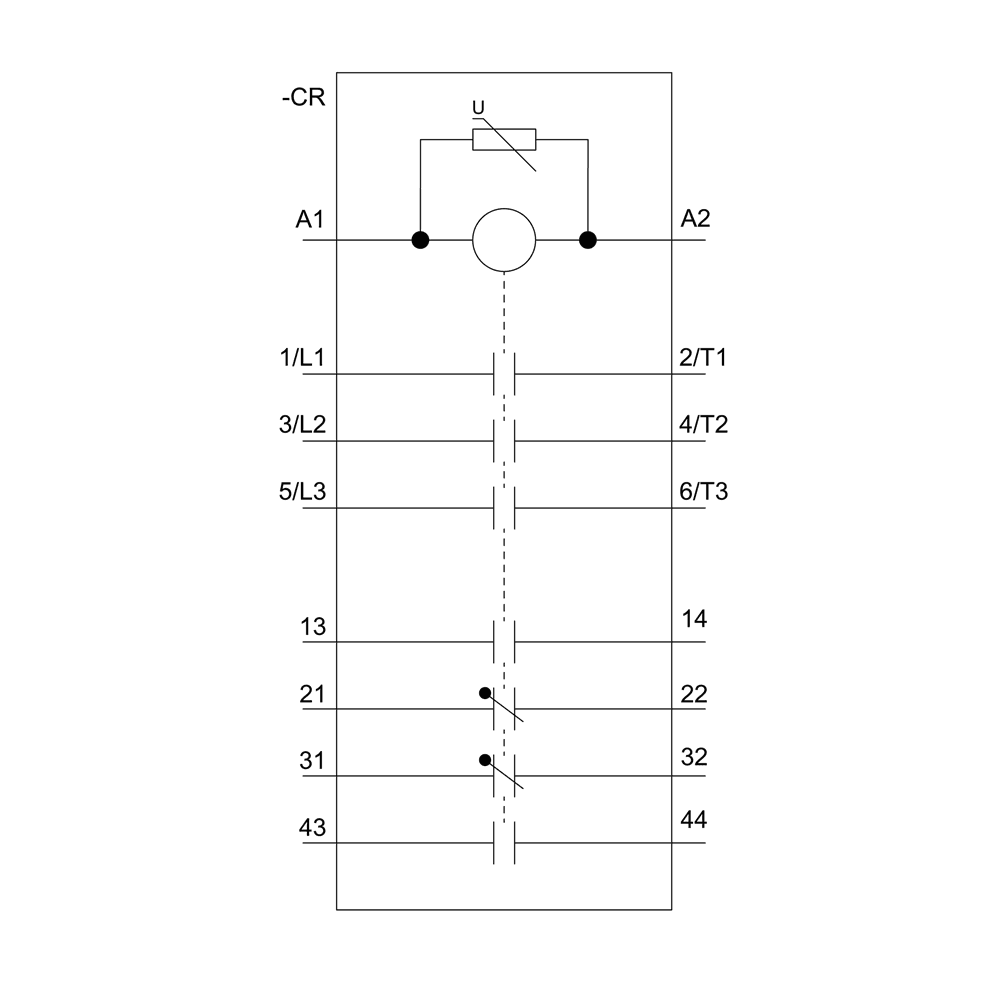

design of the surge suppressorwith varistor
closing power of magnet coil at DC360 W
holding power of magnet coil at DC5.2 W
device type according to ISO 13849-13
operational current at AC-12 maximum10 A
fastening method side-by-side mountingYes
— with type of coordination 1 requiredgG: 355 A (690 V, 100 kA)
— with type of coordination 2 requiredgG: 250 A (690 V, 100 kA), aM: 200 A (690 V, 50 kA), BS88: 250 A (415 V, 50 kA)
reference code according to IEC 81346-2Q
number of NC contacts for main contacts0
number of NO contacts for main contacts3
test wear-related service life necessaryYes
control supply voltage at DC rated value240 ... 277 V
number of poles for main current circuit3
— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
safety device type according to IEC 61508-2Type A
— finely stranded without core end processingmax. 1x 50, 1x 70 mm²
type of voltage of the control supply voltageAC/DC
suitability for use safety-related switching OFFYes
control version of the switch operating mechanismStandard A1 - A2
overdimensioning according to ISO 13849-2 necessaryYes
— up to 230 V for current peak value n=20 rated value115 A
— up to 230 V for current peak value n=30 rated value98 A
— up to 400 V for current peak value n=20 rated value115 A
— up to 400 V for current peak value n=30 rated value98 A
— up to 500 V for current peak value n=20 rated value115 A
— up to 500 V for current peak value n=30 rated value98 A
— up to 690 V for current peak value n=20 rated value115 A
— up to 690 V for current peak value n=30 rated value98 A
type of calculation of power loss depending on polequadratic
— up to 1000 V for current peak value n=20 rated value53 A
— up to 1000 V for current peak value n=30 rated value53 A
— up to 690 V at ambient temperature 40 °C rated value160 A
— up to 690 V at ambient temperature 60 °C rated value140 A
contact rating of auxiliary contacts according to ULA600 / Q600
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
— up to 1000 V at ambient temperature 40 °C rated value80 A
— up to 1000 V at ambient temperature 60 °C rated value80 A
B10 value with high demand rate according to SN 319201 000 000
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
failure rate [FIT] with low demand rate according to SN 31920100 FIT
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
minimum cross-section in main circuit at maximum AC-1 rated value70 mm²
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact2
AWG number as coded connectable conductor cross section for auxiliary contacts18 ... 14
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1690 V
