wire length3
connector typeSocket/open
number of poles2
cable designationBUS: 1P24-19/2,55 02YS(ST)C11Y
degree of pollution3

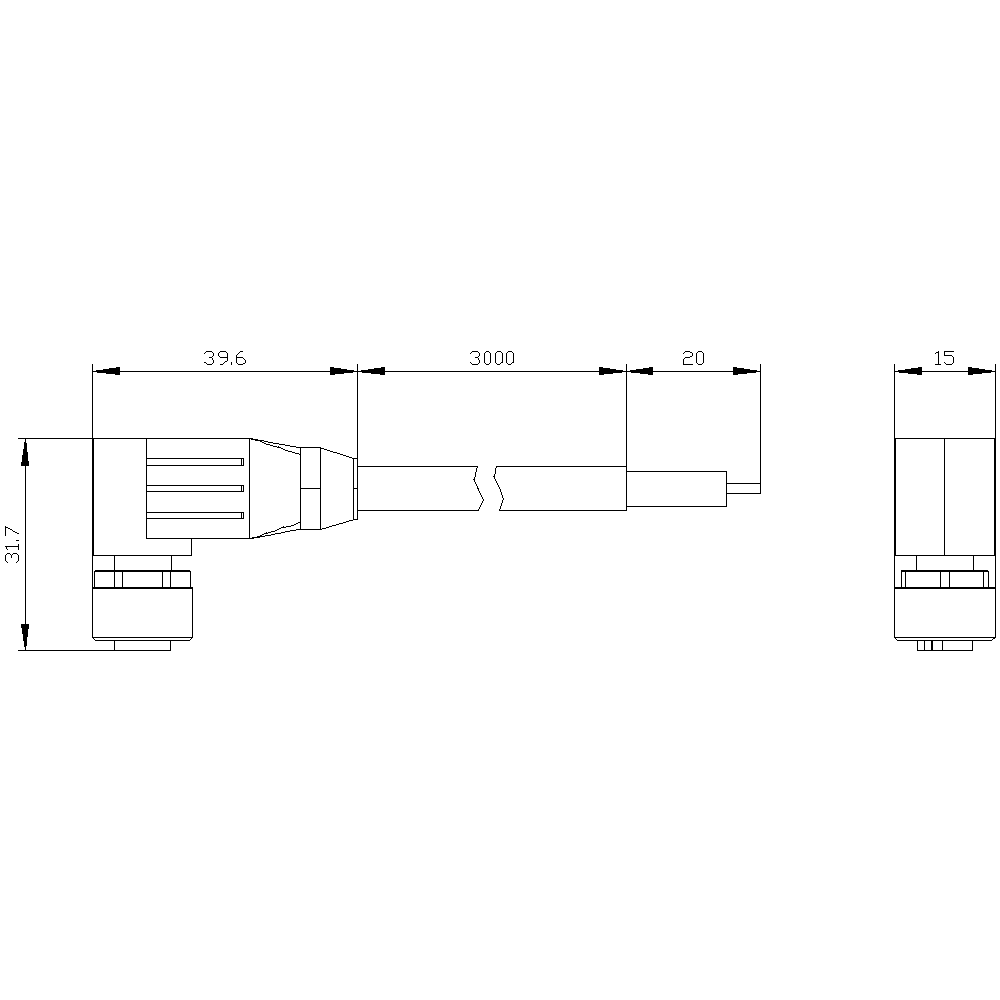

product descriptionM12 socket, angled B coded
cable end componentsopen on one side
design of the shieldShielding braid of tinned copper wire
type of cable outletangled
type of strain reliefmolded
type of plug interlockM12 x 1 thread
ampacity per pin maximum4
number of bending cycles5 000 000
number of electrical cores2
conductor cross section rated value0.25
surge voltage resistance rated value1.5
mechanical service life (mating cycles)100
connector coding of the M12 circular connectorB
symmetrical tolerance of the outer diameter of the cable0.2
