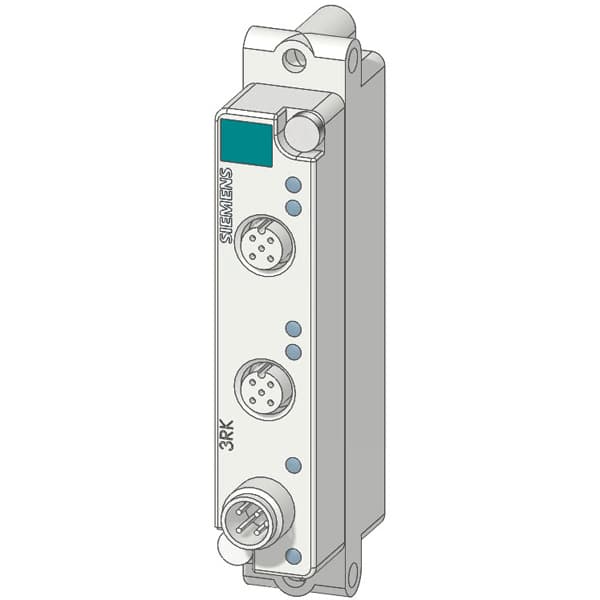

ASIsafe compact module K20F digital safety
Nomor Part: 3RK1205-0BQ30-0AA3
Merek
Kategori
Fieldbus, decentr. periphery - digital I/O module
Siemens 3RK1205-0BQ30-0AA3. ASIsafe compact module K20F digital safety, 2 F-DI, IP67 2 x input for mechanical sensors 2 x M12 socket.
Spesifikasi

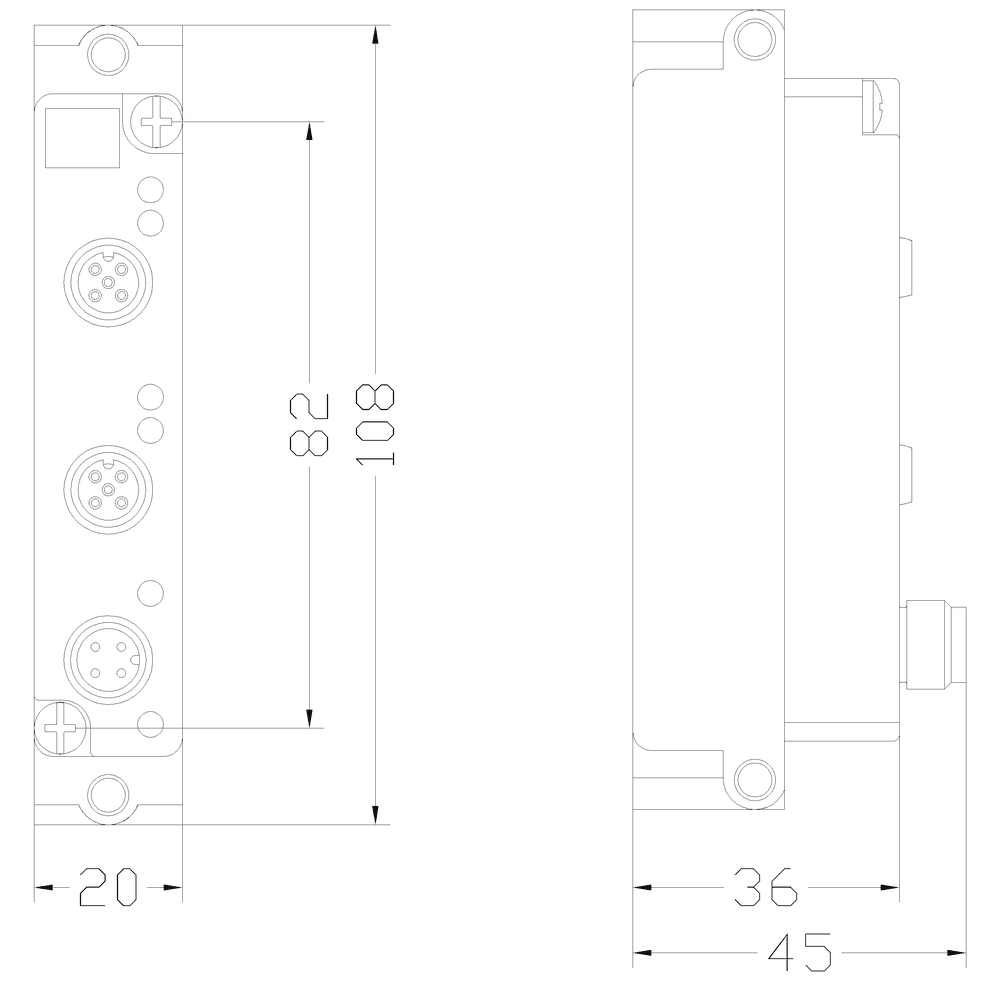

Dimensions
Width20 mm
Height108 mm
Depth45 mm
Other
fastening methodno mounting plate required
shock resistance15g / 11 ms
protection class IPIP67
design of the productsafe compact module for operation in the field, IP67 - K20F
number of digital inputs2
design of the device typestandard slave
number of digital outputs0
design of the pin assignment of the inputsspecial assignement ASIsafe
type of electrical connection of the inputs and outputsM12 screw-type terminals
