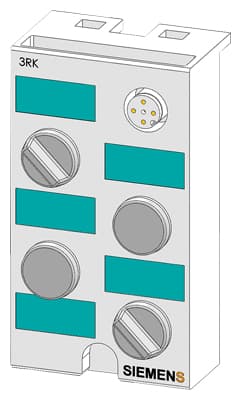

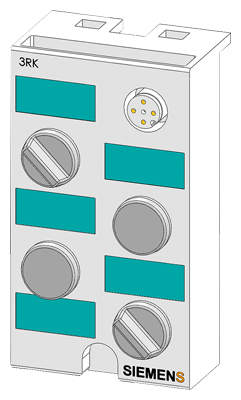

ASIsafe compact module K45F digital safety
Nomor Part: 3RK1205-0BQ00-0AA3
Kategori
Fieldbus, decentr. periphery - digital I/O module
Siemens 3RK1205-0BQ00-0AA3. ASIsafe compact module K45F digital safety, 2 F-DI, IP67 2 x input for mechanical sensors 2 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately.
Spesifikasi
Dimensions
Width45 mm
Height80 mm
Depth34 mm
Other
fastening methodstandard rail mounting/wall mounting using mounting plate for K45 compact module
protection class IPIP67
design of the productSafe compact module K45F, 2F-DI
type of voltage of output voltagesDC
reference code according to EN 61346-2A
number of digital inputs safety-related2
design of the pin assignment of the inputsspecial assignement
protocol is supported AS-Interface protocolYes
input current at digital input for signal <1> minimum5
type of electrical connection of the inputs and outputsM12 screw terminals
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
