input voltage20 ... 30 V

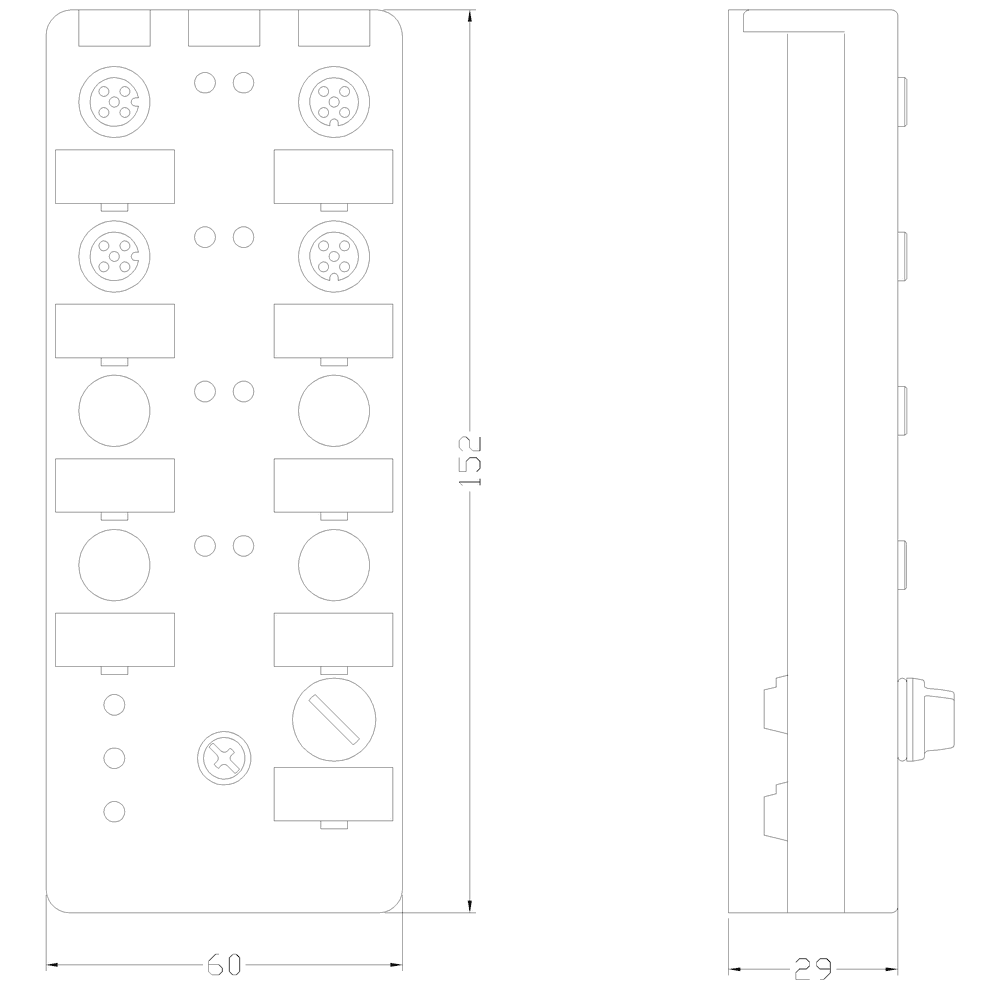

fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module
shock resistance15g / 11 ms
protection class IPIP67

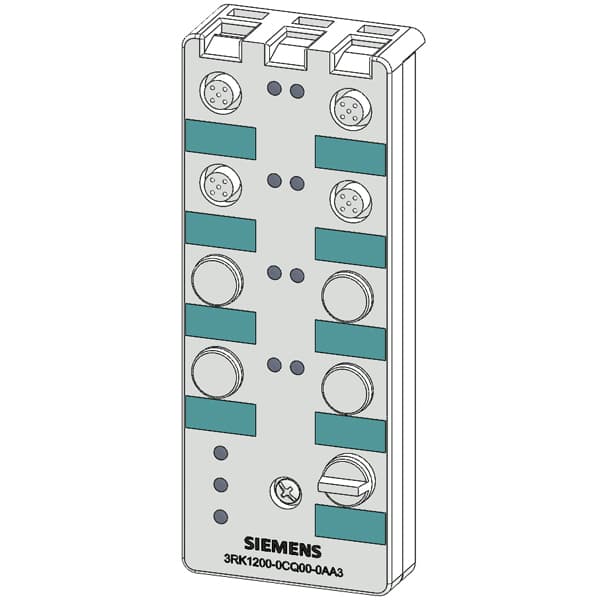

design of the productdigital I/O modules for operation in the field, IP67 - K60
number of digital inputs4
design of the device typestandard slave
number of digital outputs0
type of connection technology2- and 3-wire technology
type of voltage of the input voltagesDC
type of voltage supply for sensor supplyusing AS-Interface

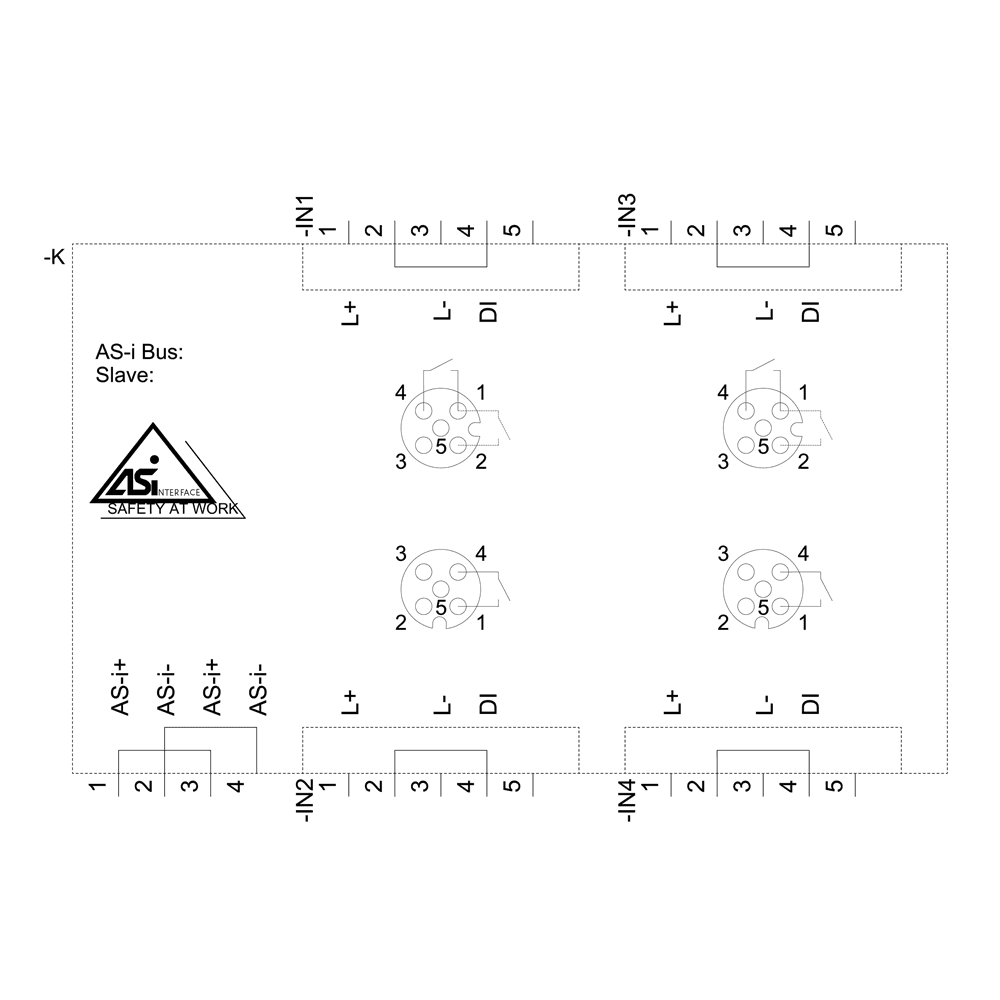

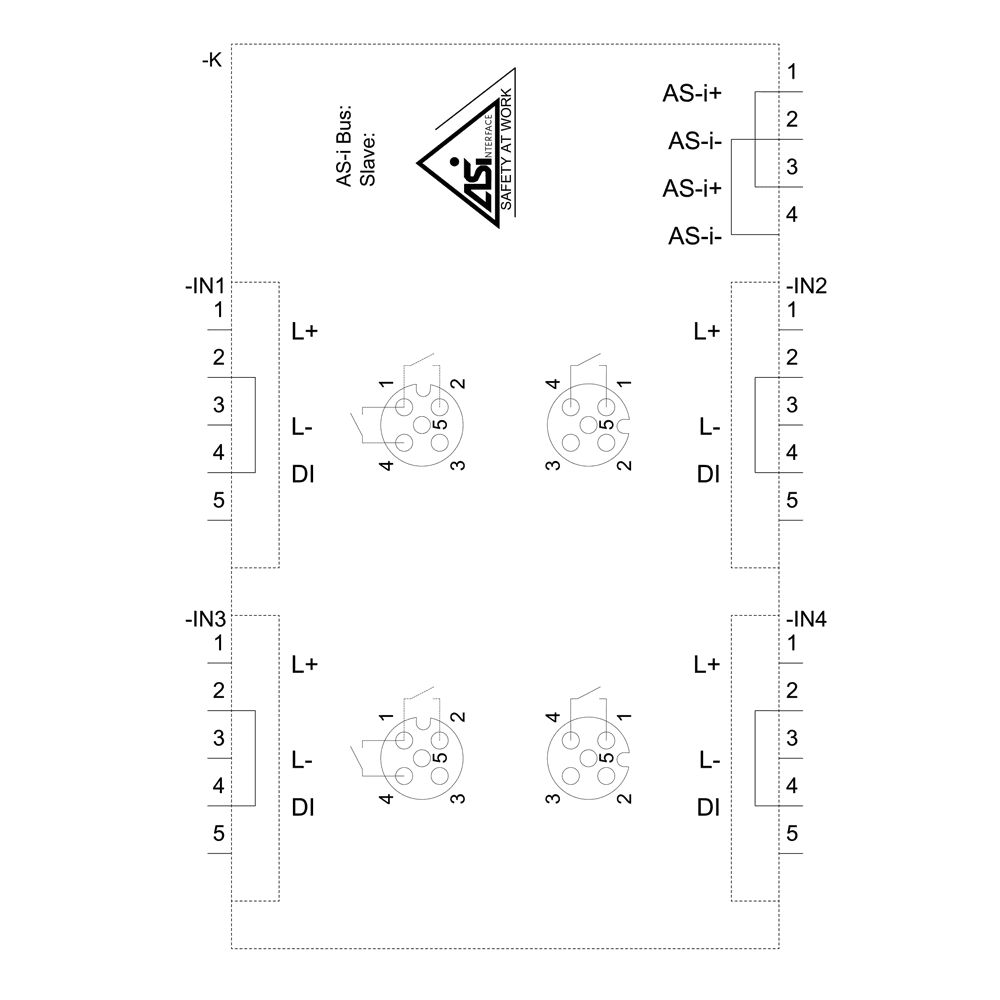

design of the pin assignment of the inputsY-II assignement
design of the pin assignment of the outputsY-II assignement
type of electrical connection of the inputs and outputsM12 screw-type terminals
property of the sensor supply short-circuit and overload resistantYes
