Aktif

AS-i compact module K60 digital 4 DQ

Name: AS-i compact module K60 digital 4 DQ
Brand: Siemens
SKU: 3RK1100-1CQ00-0AA3
Availability: InStock

Nomor Part: 3RK1100-1CQ00-0AA3

Merek

Kunjungi Situs Web

Kategori

Fieldbus, decentr. periphery - digital I/O module

Spesifikasi

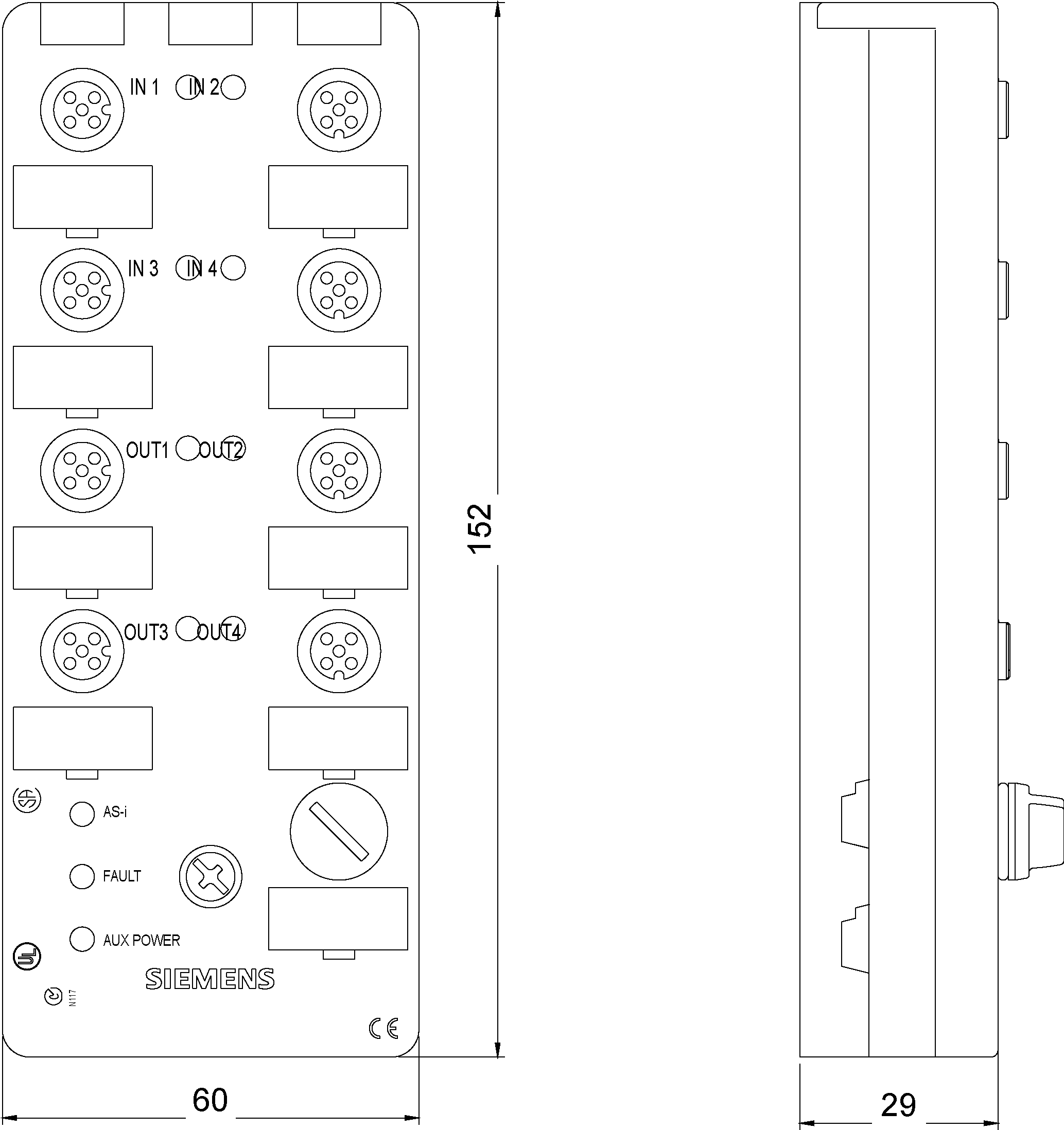

Dimensions

Width60 mm

Height152 mm

Depth29 mm

Other

fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module

shock resistance15g / 11 ms

protection class IPIP67

design of the productdigital I/O modules for operation in the field, IP67 - K60

number of digital inputs0

type of switching outputPNP transistor

design of the device typestandard slave

number of digital outputs4

type of voltage of output voltagesDC

property of the output short-circuit proofYes

design of the pin assignment of the outputsY-II assignement

ampacity of the semiconductor output at DC-13 at 24 V2 A

type of electrical connection of the inputs and outputsM12 screw-type terminals
