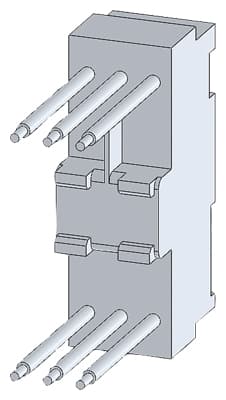

Adapter 45 mm for circuit breaker Size S0 3RV1.2 and 3RV2.2 max. 25 A Conductor cross-section AWG10
Nomor Part: 3RA6890-0BA
Merek
Kategori
Chassis part power circuit breaker
Siemens 3RA6890-0BA. Adapter 45 mm for circuit breaker Size S0 3RV1.2 and 3RV2.2 max. 25 A Conductor cross-section AWG10.
Spesifikasi
Dimensions
Width45 mm
Height26 mm
Depth23 mm
Other
fastening methodsnap-on mounting
shock resistanceSemi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes
product brand nameSIRIUS
degree of pollution3
product designationadapter 45 mm
vibration resistancef = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles
operating voltage at AC-3 rated value maximum690
operational current at AC at 400 V rated value25
installation altitude at height above sea level maximum
