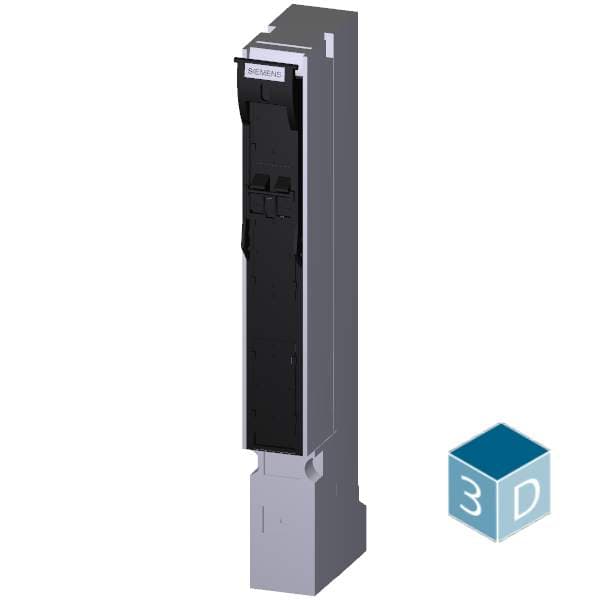

in-line fuse switch disconnector 3-pole switchable

Name: in-line fuse switch disconnector 3-pole switchable
Brand: Siemens
SKU: 3NJ4103-3DF02
Availability: InStock

Nomor Part: 3NJ4103-3DF02

Merek

Kunjungi Situs Web

Kategori

In-line fuse base

Spesifikasi

Mechanical

Net Weight1.14 kg

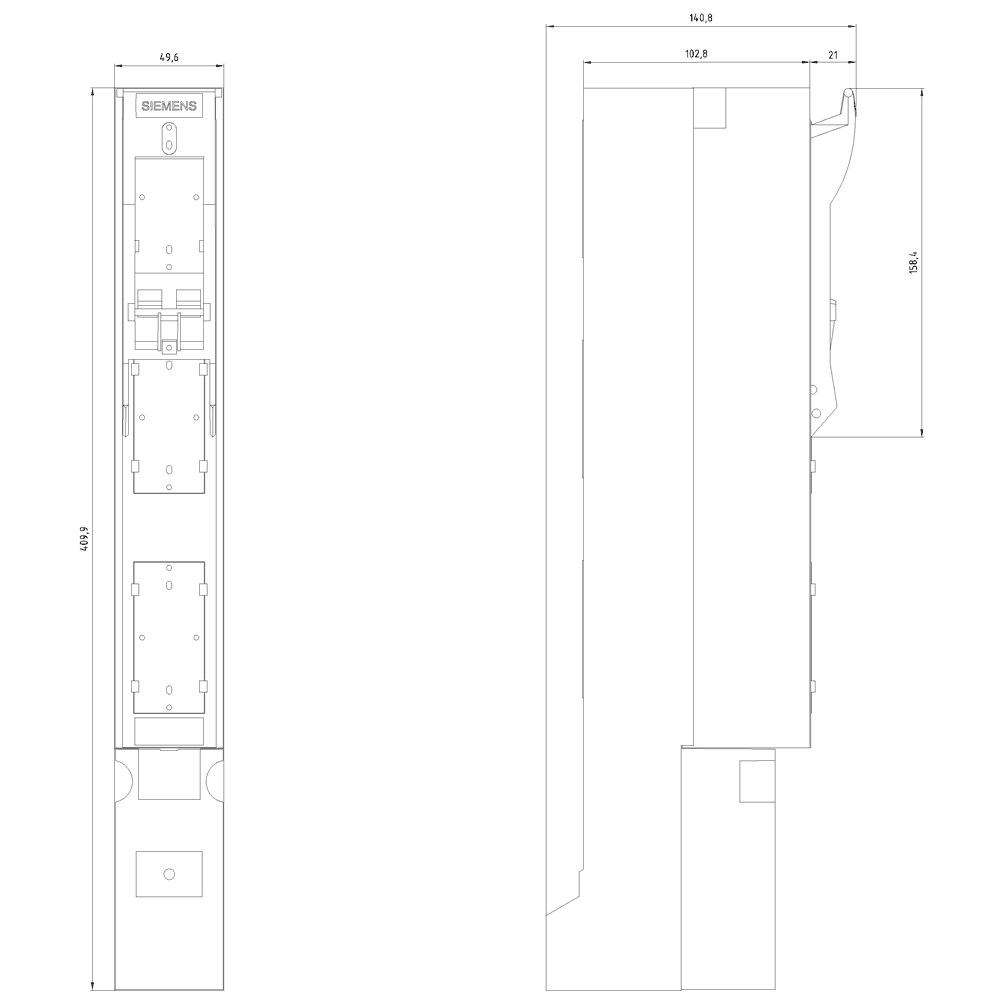

Dimensions

Width50 mm

Height410 mm

Depth121 mm

Other

fuse systemLV HRC fuse

type of deviceFor busbar system 100 mm

number of poles3

fastening methodFlachanschluss, M 8

mounting positionvertical, horizontal

size of fuse linkNH00

product brand nameSENTRON

product designationFuse switch disconnectors

number of poles note3-pole switchable

design of the productin in-line design

suitability for operationSystem protection

busbar center-to-center spacing100 mm

insulation voltage rated value1 000 V

design of the auxiliary releaseWithout

design of the safety monitoringWithout

suitability for use main switchNo

protection class IP on the frontIP30

suitability for use safety switchNo

design of the load switch strip formYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchNo

type of electrical connection for main current circuitbusbar connection

type of switching contact double breaking switching contactNo

arrangement of electrical connectors for main current circuitScrew terminal
