Aktif

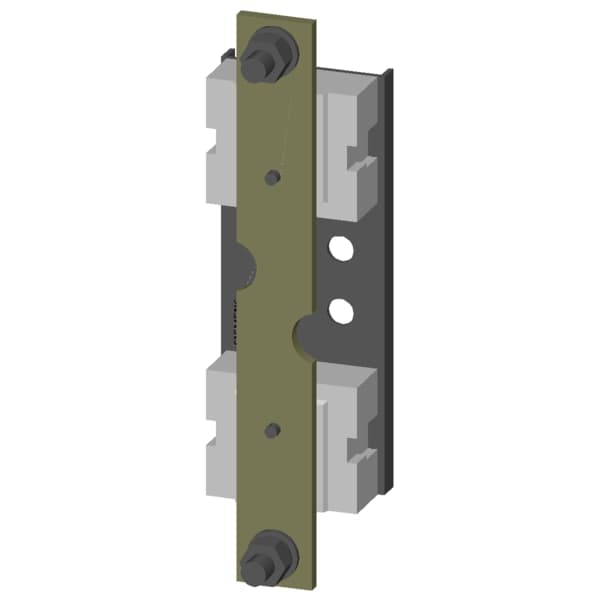

Neutral terminal base ceramic Sz. 2 400A 690V
Nomor Part: 3NG2300
Kategori
Low Voltage HRC solid link
Siemens 3NG2300. Neutral terminal base ceramic Sz. 2 400A 690V.
Spesifikasi
Mechanical
Net Weight940 g

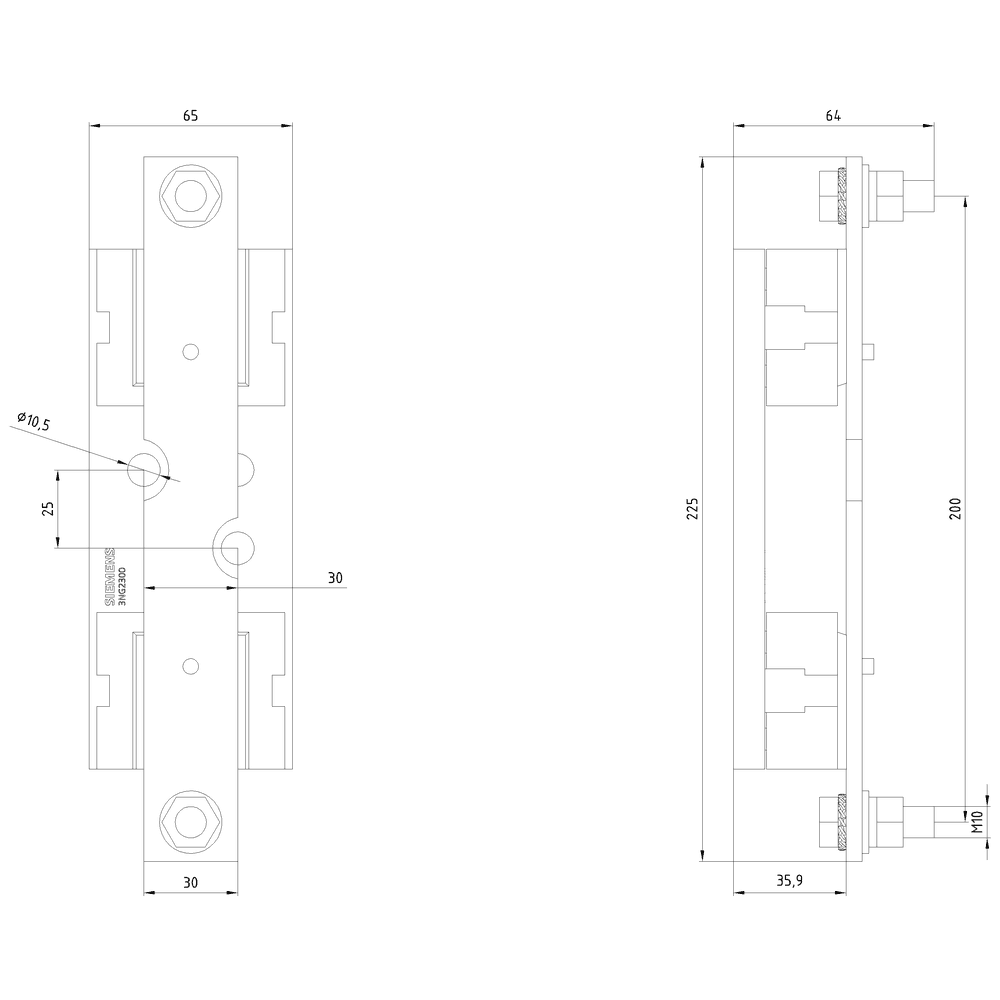

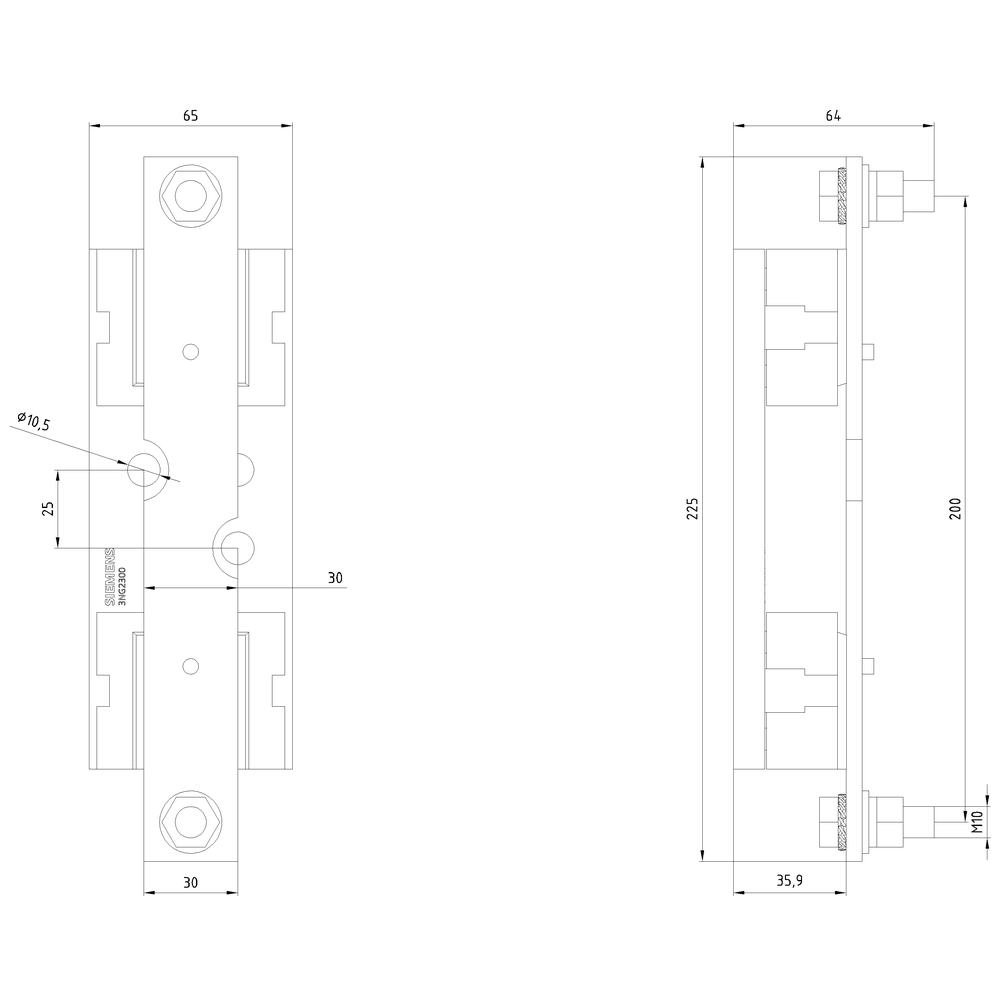

Dimensions
Height225 mm
Depth64 mm
Other
fastening methodfixed mounting
size of fuse linkLV HRC2
product brand nameSENTRON
product designationNeutral terminal base
design of the productceramic
type of electrical connectionflat connector
design of the thread of the nutM10
operational current rated value400 A
design of the thread of the connection screwM10
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
