Aktif

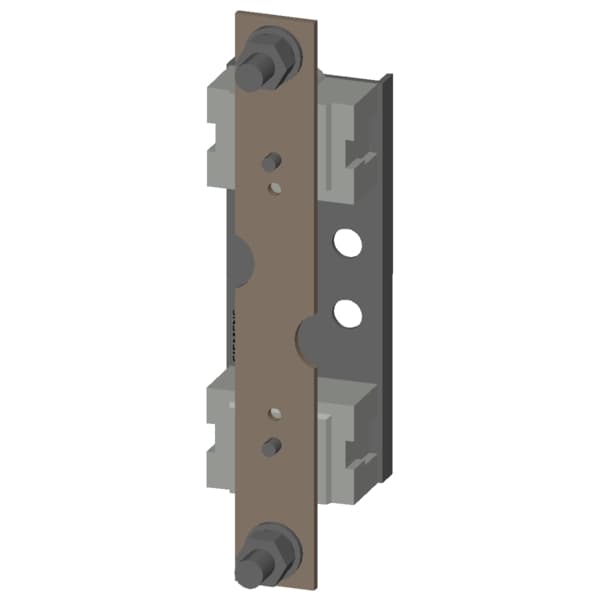

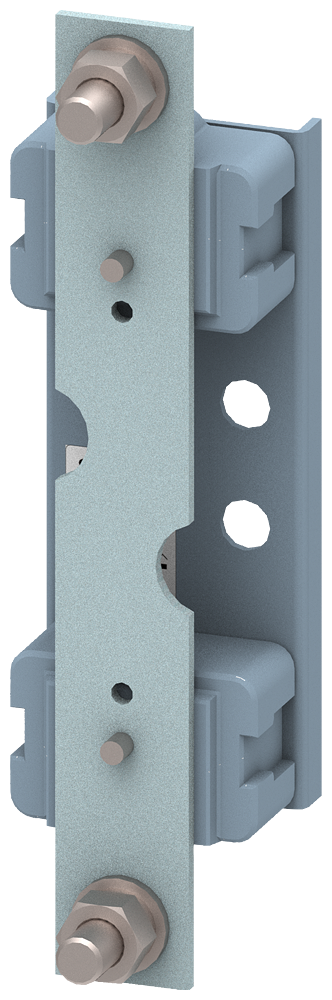

Neutral terminal base ceramic Sz. 1 250A 690V
Nomor Part: 3NG2200
Kategori
Low Voltage HRC solid link
Siemens 3NG2200. Neutral terminal base ceramic Sz. 1 250A 690V.
Spesifikasi
Mechanical
Net Weight591 g

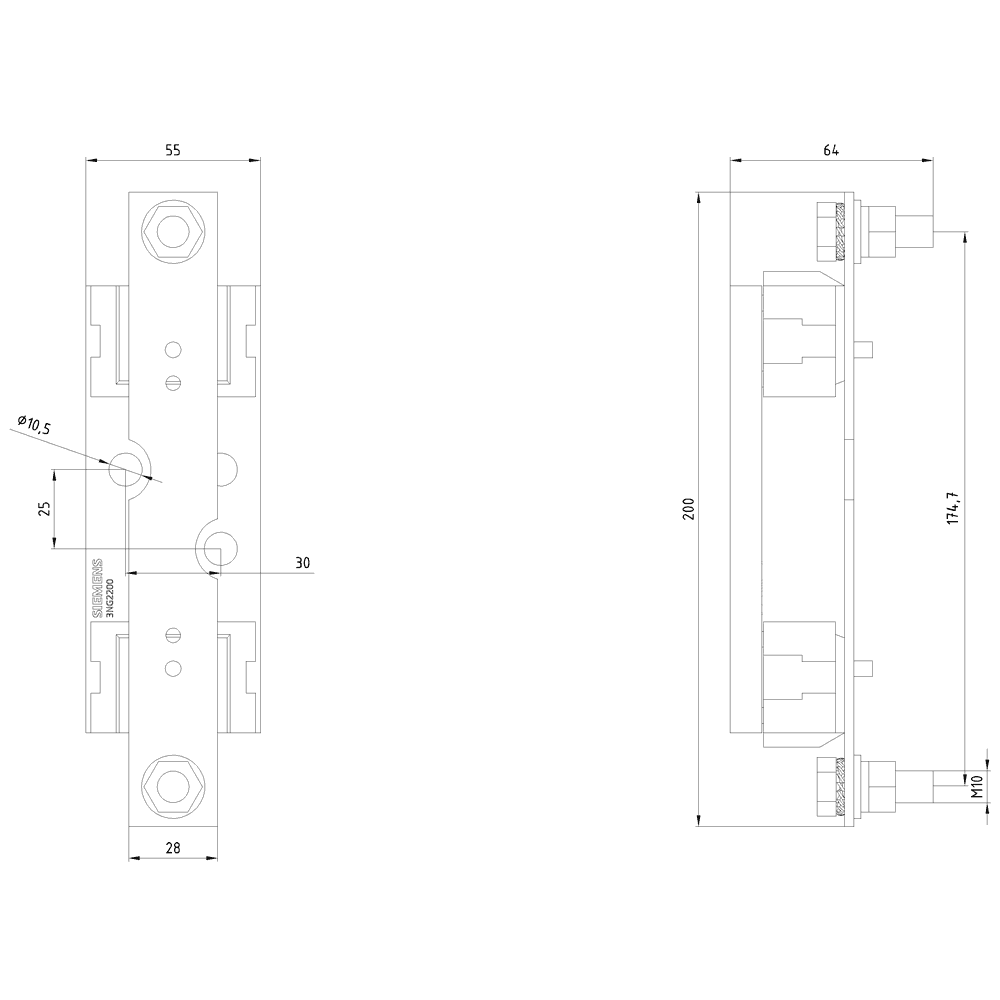

Dimensions
Height200 mm
Depth64 mm
Other
fastening methodfixed mounting
size of fuse linkLV HRC1
product brand nameSENTRON
product designationNeutral terminal base
design of the productceramic
type of electrical connectionflat connector
design of the thread of the nutM10
operational current rated value250 A
design of the thread of the connection screwM10
tightening torque with screw-type terminals maximum32 N·m
tightening torque of the screw for securing the equipment maximum6 N·m
