Aktif
rotary operating mechanism
Nomor Part: 3LD9283-4G
Merek
Kategori
Handle for power circuit breaker

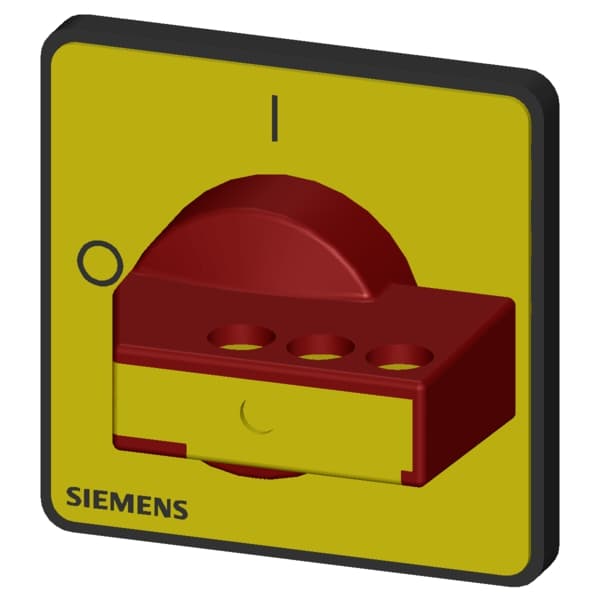

Siemens 3LD9283-4G. rotary operating mechanism, actuating lever red/yellow, for molded plastic encapsulation, lockable in 0- and 1-position. Accessory for switch disconnector 3LD2 in molded plastic enclosure with EMC place.
Spesifikasi
Mechanical
Net Weight79 g
Other
colorred / yellow
product brand nameSENTRON
product designationRotary operators
special product featurecan be locked in 0 and I position
number of bracket locks maximum3
degree of protection NEMA rating1, 3R, 4X, 12
hasp thickness of the bracket locks4 ... 6 mm
suitability for use circuit breakerNo
suitability for use switch disconnectorYes
suitability for use EMERGENCY OFF switchYes
product feature can be locked in ON position
