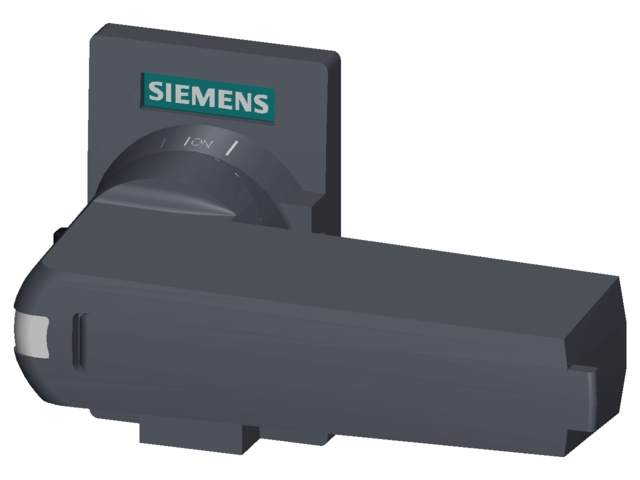

Accessory for 3KD size 2 Direct operating mechanism
Nomor Part: 3KD9201-1
Kategori
Door coupling handle for switchgear
Siemens 3KD9201-1. Accessory for 3KD size 2 Direct operating mechanism, for front operating mechanism, grey, Standard version can be locked in OFF position with three padlocks.
Spesifikasi
Mechanical
Net Weight134 g

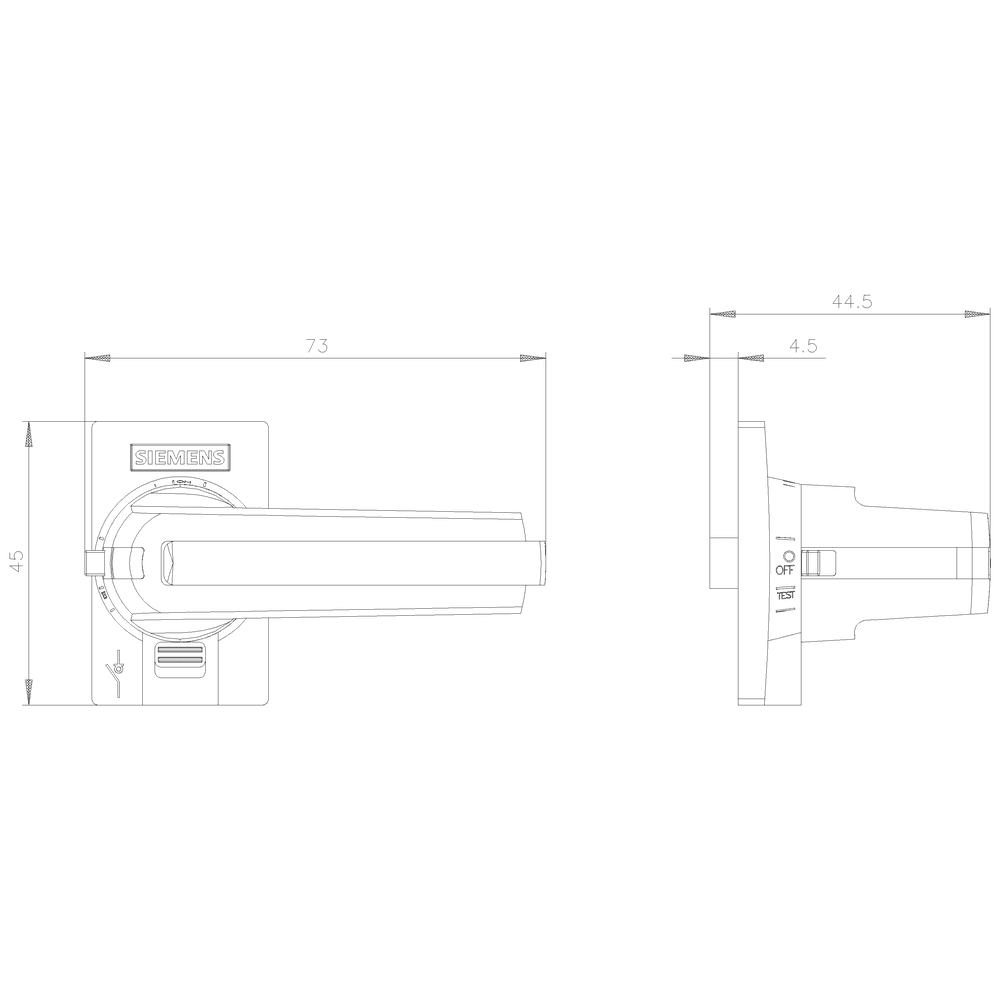

Dimensions
Width73 mm
Height45 mm
Depth44.5 mm
Other
product brand nameSENTRON
product designationAccessories for switch disconnectors
suitability for useFor 3KD, size 2
design of the productDirect operating mechanism
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementgray
protection class IP on the frontIP30
display version for switch position indicatorON-OFF-TEST
product feature can be locked into OFF positionYes
