accessories for 3KD size 1/2
Nomor Part: 3KD9103-6
Kategori
Auxiliary contact block

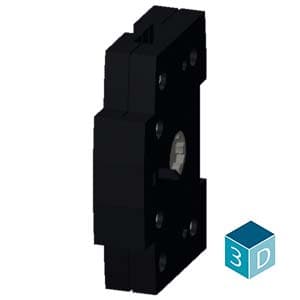

Siemens 3KD9103-6. accessories for 3KD size 1/2, 3KF size 1, 3KC0 size 1/2, auxiliary switch module for max. 2 auxiliary switches with test function.
Spesifikasi
Mechanical
Net Weight147 g
Dimensions
Width27.65 mm
Height84 mm
Depth60.5 mm
Other
fastening methodSide mounting
product brand nameSENTRON
product descriptionFor max. 2 auxiliary switches, with test function
product designationAccessories for switch disconnectors
suitability for useFor 3KD sizes 1 and 2
design of the productAuxiliary switch module
number of CO contacts of auxiliary contacts instantaneous contact0
number of NC contacts for auxiliary contacts instantaneous contact0
number of NO contacts for auxiliary contacts instantaneous contact0
