Aktif

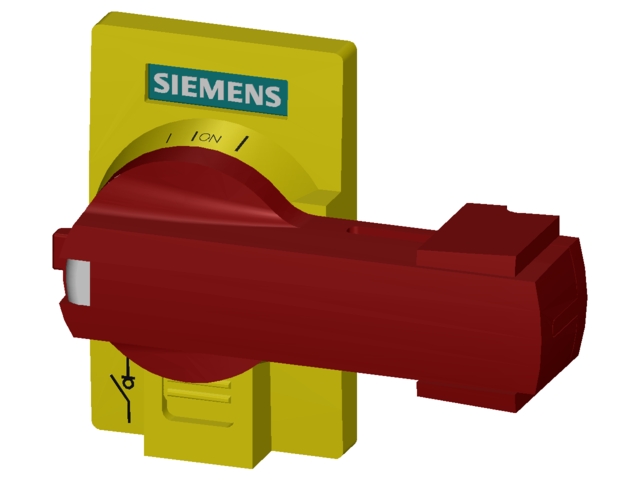

Accessory for 3KD size 1 Direct operating mechanism
Nomor Part: 3KD9101-8
Kategori
Door coupling handle for switchgear
Siemens 3KD9101-8. Accessory for 3KD size 1 Direct operating mechanism, for front operating mechanism, red/yellow, Flat version can be locked in OFF position with one padlock.
Spesifikasi
Mechanical
Net Weight114 g
Dimensions
Width57 mm
Height45 mm
Depth27.5 mm
Other
product brand nameSENTRON
product designationAccessories for switch disconnectors
suitability for useFor 3KD, size 1
design of the productDirect operating mechanism DIN43880
product feature interlockYes
type of the driving mechanismManual operating mechanism
color of the actuating elementRed/Yellow
protection class IP on the frontIP30
display version for switch position indicatorON-OFF-TEST
product feature can be locked into OFF positionYes
