Aktif
Accessory for 3KC3
Nomor Part: 3KC9603-1
Merek
Kategori
Auxiliary contact block

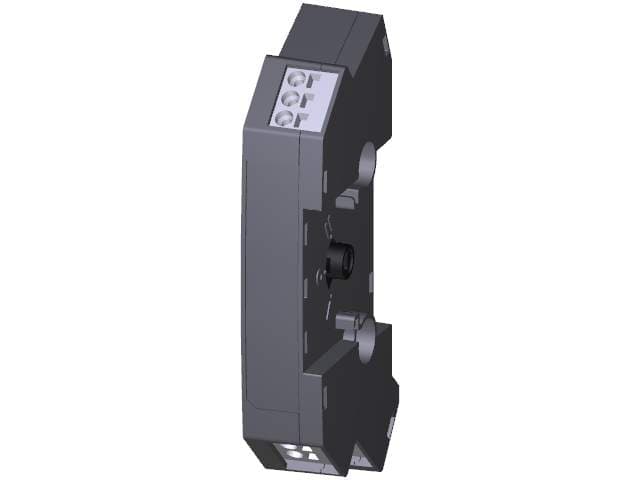

Siemens 3KC9603-1. Accessory for 3KC3, 3KC6 Auxiliary switch contains 3 change-over contacts: 1 change-over contact for Position I, O, II for 40-160 A with separate contacts contains 1 unit incl. set of screws.
Spesifikasi
Mechanical
Net Weight65 g

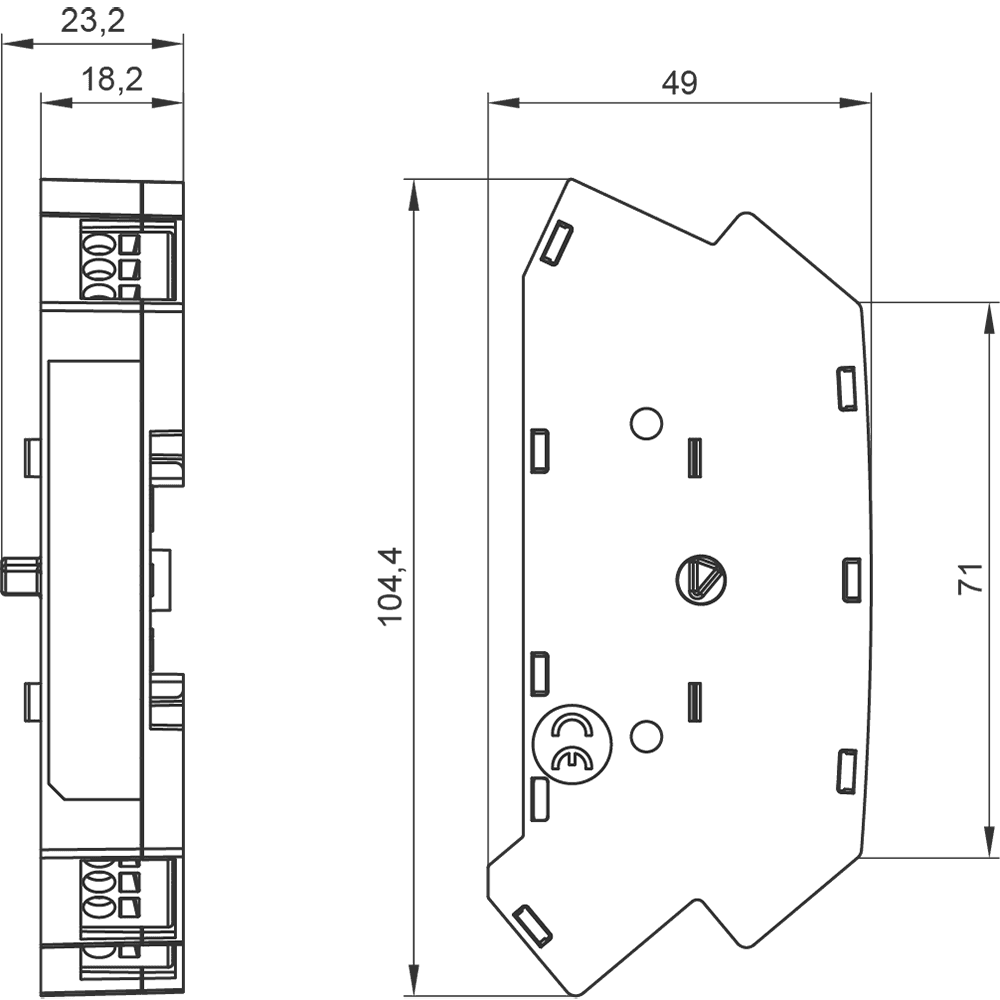

Dimensions
Width104 mm
Height48.4 mm
Depth17.8 mm
Other
fastening methodscrew fixing
product brand nameSENTRON
product descriptionAuxiliary switch with 3 CO contacts: One for position I, O and II, with separate COM connection, AC13 2 A 250 V AC
product designationAccessories for transfer switching equipment
suitability for use3KC3, 3KC6
type of electrical connection0.5 to 2.5 mm² solid / 0.5 to 1.5 mm² stranded
number of CO contacts of auxiliary contacts instantaneous contact3
