Active
Terminal
Part Number: 8WH2000-0CK07
Brand
Category
Ground terminal block

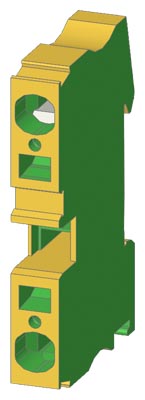

Siemens 8WH2000-0CK07. Terminal, spring-loaded terminal, PE/PEN terminal, 16 mm², green-yellow.
Specifications
Mechanical
Net Weight49 g
Dimensions
Height80.2 mm
Depth50.6 mm
Other
colorgreen-yellow
length80 mm
stripped length14 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
type of connection 1spring-loaded terminal
type of connection 2spring-loaded terminal
design of the productPE through-type terminal
position of the terminaltop
terminal contact spacing12.2 mm
number of terminal levels1
product feature PEN functionNo
material of the insulating bodyOther
height with lowest-profile installation51 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
