Active

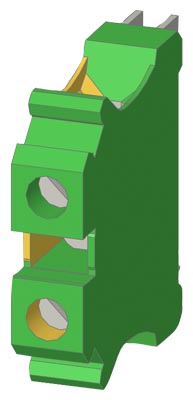

Terminal

Name: Terminal
Brand: Siemens
SKU: 8WH1201-0CK07
Availability: InStock

Part Number: 8WH1201-0CK07

Brand

Visit Website

Specifications

Mechanical

Net Weight49 g

Dimensions

Height49.5 mm

Depth12.2 mm

Other

colorgreen-yellow

length50 mm

stripped length12 mm

fastening methodDIN rail 35 mm

product brand nameSENTRON

insulation materialthermoplastic

product designationPE insta terminal 16 mm², 10 mm

type of connection 1screw-type terminal

type of connection 2screw-type terminal

design of the productPE installation terminal

position of the terminaltop

terminal contact spacing12.2 mm

number of terminal levels1

product feature PEN functionNo

material of the insulating bodyPA

height with lowest-profile installation50.5 mm

combustibility class according to UL 94V2

product component required end cover plateYes

number of terminal points per terminal level2
