Part Number: 8WH1201-0BM01
Brand
Category
Neutral disconnect terminal block

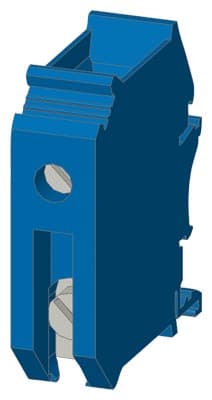

Siemens 8WH1201-0BM01. Terminal, screw terminal, installation terminal, N conductor isolating terminal, 35 mm², blue.
Specifications
Mechanical
Net Weight49 g

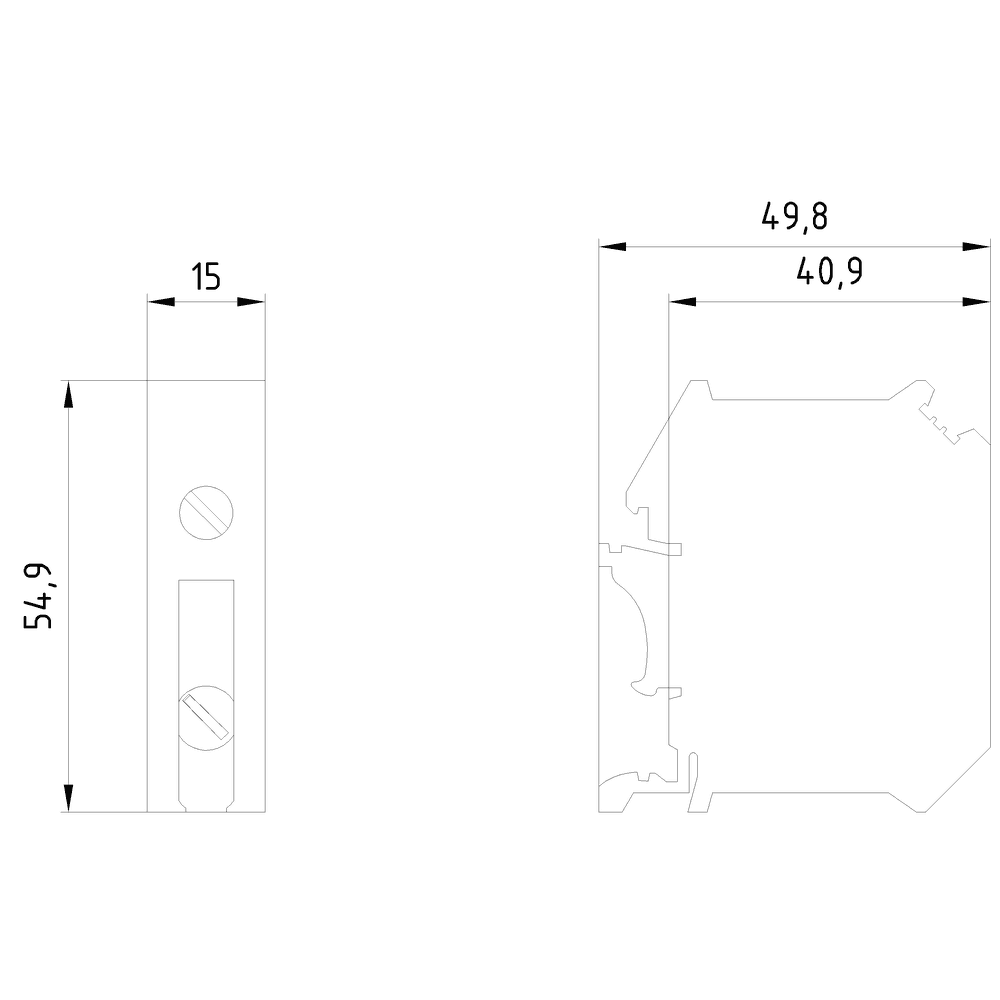

Dimensions
Height50 mm
Depth15 mm
Other
colorblue
length55 mm
busbar design3x10 mm
stripped length15 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
insulation materialPA
product designationTerminal blocks
design of the productN-conductor isolating terminal
terminal contact spacing15 mm
number of terminal points2
operating voltage rated value400 V
type of electrical connectionscrew terminal
material of the insulating bodyPA
operational current rated value110 A
height with lowest-profile installation51 mm
combustibility class according to UL 94V2
product component required end cover plateYes
