Active
Terminal
Part Number: 8WH1201-0AK00
Brand
Category
Multi level installation terminal block

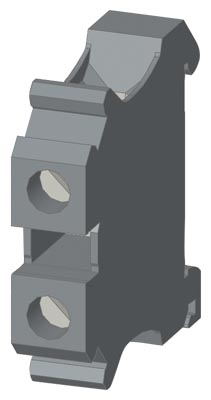

Siemens 8WH1201-0AK00. Terminal, screw terminal, installation terminal, through-type terminal, 16 mm², gray.
Specifications
Mechanical
Net Weight28 g
Dimensions
Depth50 mm
Other
length51 mm
stripped length12 mm
fastening methodDIN rail 35 mm
product brand nameSENTRON
insulation materialthermoplastic
product designationTerminal blocks
number of potentials2
type of connection 1screw-type terminal
type of connection 2screw-type terminal
position of the terminaltop
terminal contact spacing12 mm
product function N functionNo
color of the insulating bodygray
product function PE functionNo
operating voltage rated value400 V
material of the insulating bodyPA
operational current rated value75 A
product feature N separation slidesNo
height with lowest-profile installation50.5 mm
combustibility class according to UL 94V2
