Active
Terminal
Part Number: 8WH1000-0AF02
Brand
Category
Feed-through terminal block

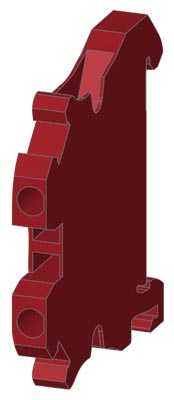

Siemens 8WH1000-0AF02. Terminal, screw terminal, through-type terminal, 2.5 mm², red.
Specifications
Mechanical
Net Weight8 g
Dimensions
Height48 mm
Depth46.9 mm
Other
colorred
length48 mm
fastening methodTH35 DIN rail
product brand nameSENTRON
product designationTerminal blocks
type of connection 1screw-type terminal
type of connection 2screw-type terminal
design of the productthrough-type terminal
position of the terminallateral
terminal contact spacing5 mm
number of terminal levels1
operating voltage rated value1 000 V
material of the insulating bodyPA
operational current rated value24 A
height with lowest-profile installation47.5 mm
combustibility class according to UL 94V0
product component required end cover plateYes
number of terminal points per terminal level2
design of terminal terminal levels internally linkedNo
