busbar system 8US2
Part Number: 8US2942-3RJ00
Brand
Category
Busbar terminal

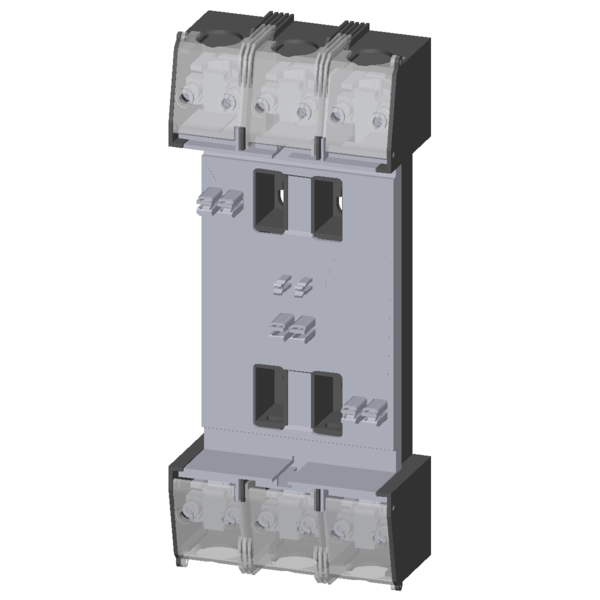

Siemens 8US2942-3RJ00. busbar system 8US2, connection module on rear, terminals on two sides, 35 – 150 mm²,.
Specifications
Mechanical
Net Weight1.42 kg

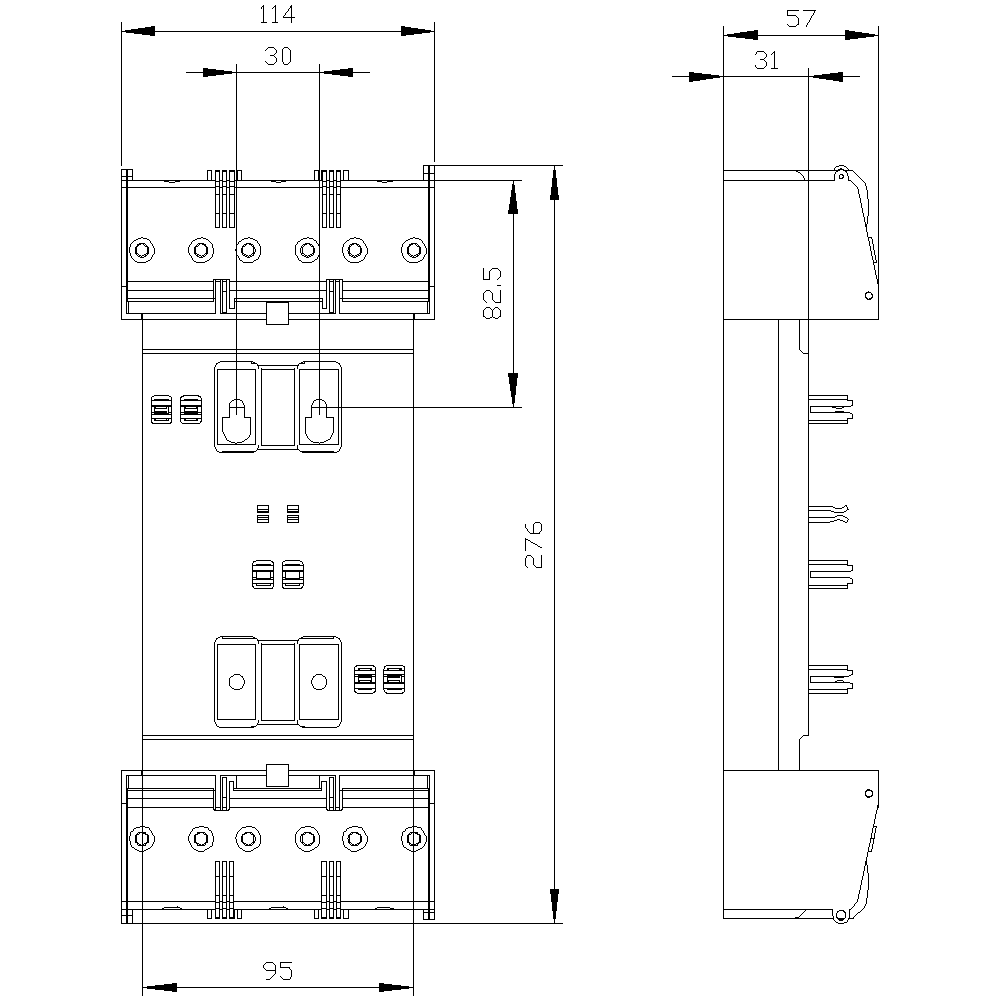

Dimensions
Width114 mm
Height276 mm
Depth57 mm
Other
number of poles3
product brand nameSENTRON
product designationConnection module
power loss [W] maximum43.9 W
type of connection technologyprism terminal
insulation voltage rated value800 V
protection class IP on the frontIP20
surge current resistance rated value40 kA
surge voltage resistance rated value6 kV
operational current rated value maximum500 A
operating voltage at AC rated value maximum690 V
Suitability to the operation for flat cable-connectionYes
Suitability to the operation for circular conductor connectionYes
Suitability to the operation for sector-shaped conductor connectionNo
type of connectable conductor cross-sections of the laminated conductors maximum15.5 x 8 mm
