Active
Vertical busbar support cascaded
Part Number: 8PQ4000-0BA32
Brand
Category
Busbar support

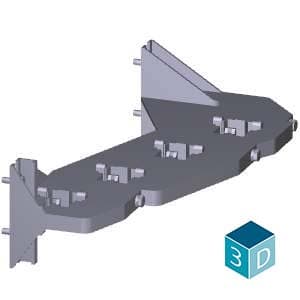

Siemens 8PQ4000-0BA32. Vertical busbar support cascaded, 2 x 30 x 10 mm.
Specifications
Mechanical
Net Weight878 g
Dimensions
Width375 mm
Height165 mm
Depth100 mm
Other
number of poles4
product brand nameSIVACON S4
product designationVertical busbar holder
design of the productcascaded
busbar center-to-center spacing80 mm
operational current rated value maximum1 190 A
type of connectable conductor cross-sections for copper conductor stranded30x10
