Active

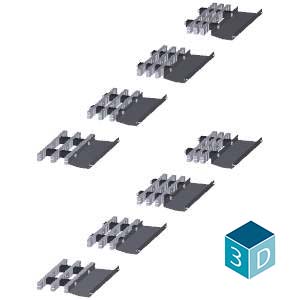

Vertical busbar support non-cascaded
Part Number: 8PQ4000-0BA31
Brand
Category
Busbar support
Siemens 8PQ4000-0BA31. Vertical busbar support non-cascaded, W: 400 mm, 1 set = 3 units.
Specifications
Mechanical
Net Weight5.417 kg
Dimensions
Width350 mm
Height255 mm
Depth30 mm
Other
number of poles4
product brand nameSIVACON S4
product designationVertical busbar holder
design of the productnon-cascaded
busbar center-to-center spacing80 mm
operational current rated value maximum2 810 A
type of connectable conductor cross-sections for copper conductor stranded20x10, 30x10, 40x10, 50x10
